Stainless Steel SS316L Pillow Plate Jacket Tank, 50% Higher Heat Transfering Efficiency

1set
MOQ
USD150-3000
Price
Stainless Steel SS316L Pillow Plate Jacket Tank, 50% Higher Heat Transfering Efficiency
Features Gallery Product Description Request A Quote
Features
Specifications
Keywords: Pillow Plate Jacket Tank
Volume: Customized
Usage: Milk Tank, Beer Tank
Applicable Industries: Food & Beverage Factory
Max. Working Pressure Of Jacket: 40kgs
Heat Transfer Performance: 50% Higher Than Traditional Jacket Tank
Highlight:

SS316L Steel Pillow Plate

,

SS316L Pillow Plate Jacket Tank

,

Customized Pillow Plate Jacket Tank

Basic Infomation
Place of Origin: China
Brand Name: Hanpu
Certification: CE ISO
Model Number: HT-1500
Payment & Shipping Terms
Packaging Details: standard exported wooden case
Delivery Time: 45-60 working days
Supply Ability: 20sets per months
Product Description

 Stainless Steel SS316L Pillow Plate Jacket Tank, 50% Higher Heat Transfering Efficiency



Introduction



1. Two sheets of steel are overlapped and welded by laser. Laser ring welding is used in the middle of the sheet and two laser welding seals are used around the edge.

2. Round to circle and welding.

3. Injecting high-pressure liquid between plates makes the plates expand and deform under pressure, forming a hollow space with uneven surface.

4. Feeding the medium in the jacket to cool or heat material inside the tank



Specification

Product Name Milk cooling jacket tank
Welding Laser
Material Stainless Steel
Color Nickel White
Grade Food grade
Brand Hanpu
Tank height 5.6m
Thickness 4mm base plate, 1mm embossed plate
Size of plate 12*2m

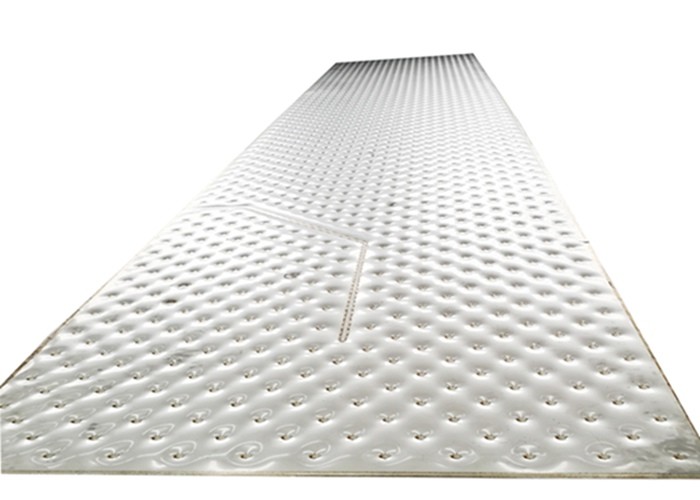

Stainless Steel SS316L Pillow Plate Jacket Tank, 50% Higher Heat Transfering Efficiency 0

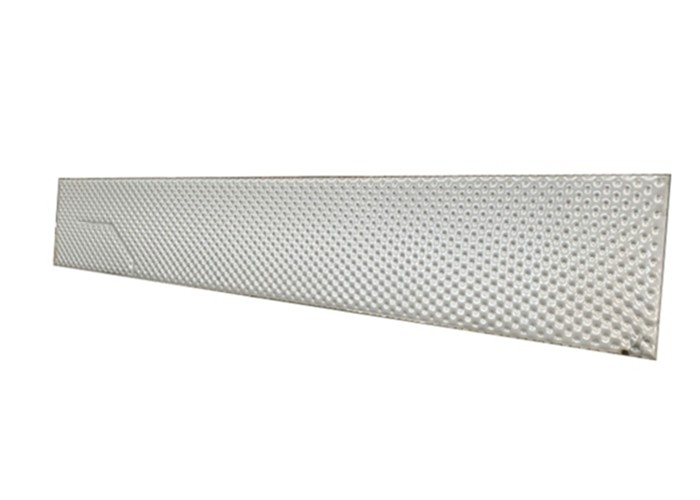

Stainless Steel SS316L Pillow Plate Jacket Tank, 50% Higher Heat Transfering Efficiency 1

Feature



1. Unique three-dimensional surface runner:

2. High heat transfer coefficient

3. It is not easy to scale.

4. Not easily blocked

5. Compact structure

6. High temperature and high pressure resistance

7. Fully welded structure

8. Floating Head Design

9. Easy to clean

10. Lower flow resistance



Processing equipment

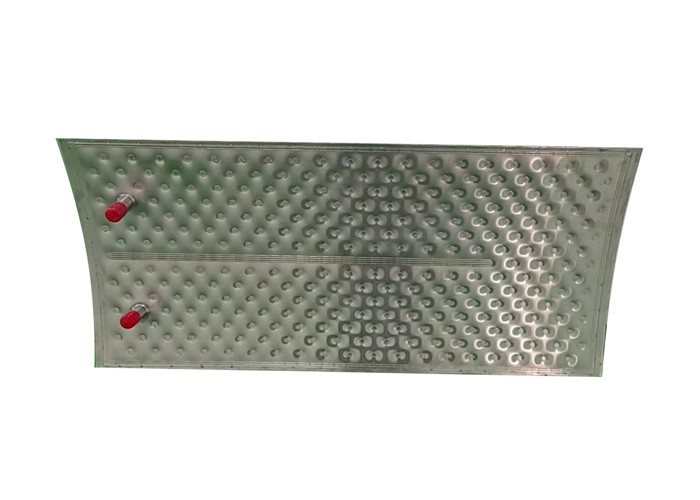

Stainless Steel SS316L Pillow Plate Jacket Tank, 50% Higher Heat Transfering Efficiency 2





FAQ

1. Do you have OEM service? Do you supply the parts?

Yes, we do, as long as you provide us your drawing and detailed requirements.


2. Will you dispatch technicians for installation and commissioning?
Yes, we can, we do lots of service, please refer to our after sales part.

3. How do you protect the quality?
My factory is a state owned enterprise with more than 100 years experience, strict operation policy is performed, advanced processing machines guarantee the precision of all components, workers with operation license

4. Can we visit your end user or contact them?
Yes, users are in domestic and abroad, we can provide you the name list. You can go there or contact to get more info.


About us



Jiangsu Hanpu Mechanical Technology Co., Ltd. is a company mainly produce pillow plate and its related products,The company's production base is located in the Huangqiao Industrial Zone of Taixing, covering an area of 300 acres. The companies involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc.

Jiangsu Hanpu is an internationally engineering company that integrates technical consulting, design, procurement, construction, installation and driving into one, providing engineering EPC general contract, project management, engineering supervision and other services. The company is Committed to be the first and world-renowned technology and technology engineering company in Asia, providing cutting-edge technology and one-stop solutions for the world's industries.

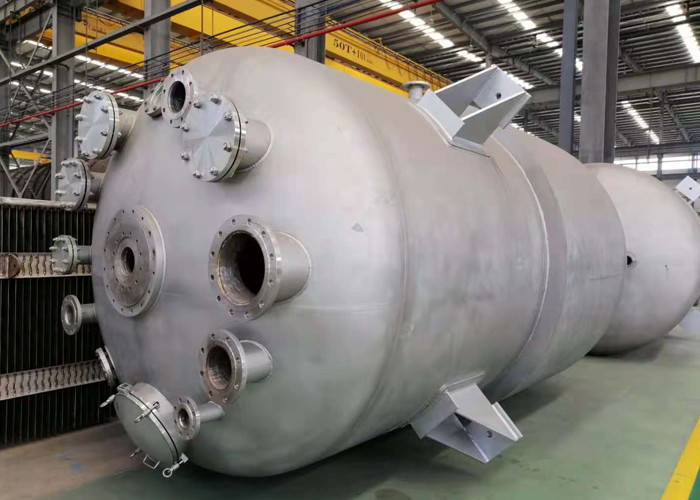

Stainless Steel SS316L Pillow Plate Jacket Tank, 50% Higher Heat Transfering Efficiency 3
