Fully Welded Pillow Plate Heat Type Exchanger Milk For Immersion Chillers Price List In Iran
Introduction
The feed liquid enters the distributor from the top of the heating chamber when the plate falling film evaporator is operating. The following ensures that the feed liquid is evenly distributed on each side of the vertical heating pillow plates and falls in the form of a film while evaporating.

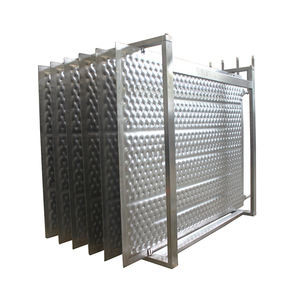

Pillow plate module, one of key parts of Falling Film Evaporator, consists of a group of double embossed pillow plates. which is made of two plates with same thickness, after inflating by nitrogen gas, or high pressure water, the surface of both sides is deformed, increase heat area and reduce energy consumption.
Features
1, not easy to scale
2. High heat transfer coefficient
3. Conducive to the collection and elimination of uncondensed steam.
4. Convenient mechanical cleaning
5. For the special secondary steam channel, the entrainment of mist is reduced by more than 50% compared with the tube type.
6. Plates can be grouped and can be used for different heat sources at the same time.
Technical overview
| Product Name | Pillow plate |
| Material | Stainless Steel |
| Color | Nickle White |
| Standard | DIN GB ISO JIS BA ANSI ASMI |
| Grade | SUS201,SUS304,SUS316,TA2,Hastelloy |
| Brand | Hanpu |
| Length | Max.12000mm |
| Width | Max.2000mm |
| Thickness of two sheets | |
| Double Embossed Pillow Plate | Single Embossed Pillow Plate |
| Pillow Plate 1.0mm +1.0mm | Pillow Plate 1.0mm+2.5mm |
| Pillow Plate 1.2mm+1.2mm | Pillow Plate 1.2mm+4.0-10mm |
| Pillow Plate 1.5mm+1.5mm | Pillow Plate 1.5mm+4.0-10mm |
About us
Our company's production base is located in the Huangqiao Industrial Zone of Taixing, covering an area of 300 acres. The companies
involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc. The website is https://www.hanputhermal.com
The company has various kinds of general (special) machinery devices including 480 sets and are the most developed working devices in the world such as: Toshiba CNC boring and milling machine imported from Japan, German Schiess CNC turning processing center, etc.
