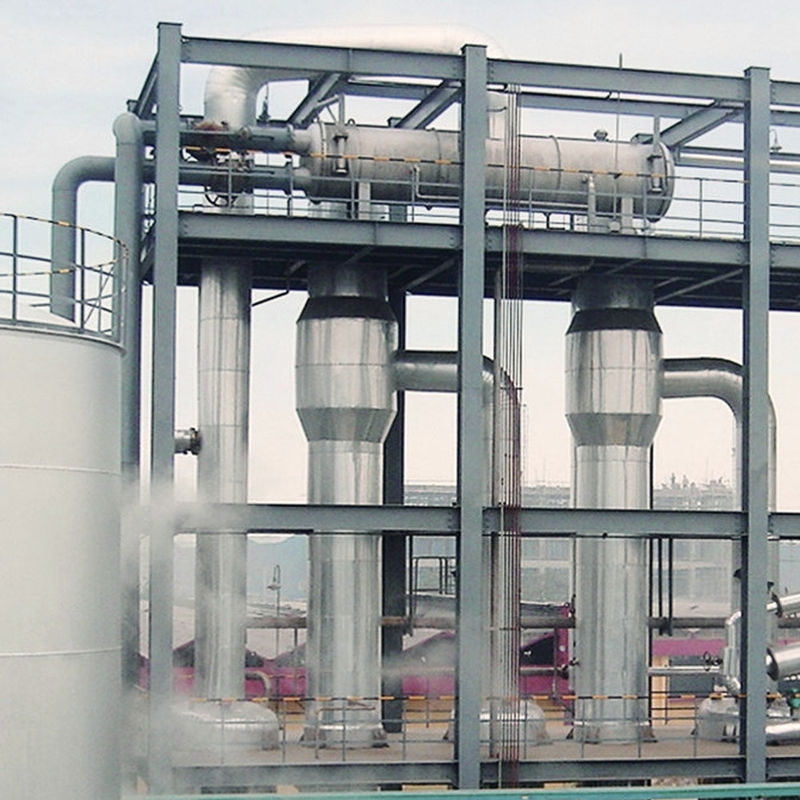

Specialised Vacuum Forced Circulation Automatic Mvr Type Evaporator For Methanol Essential Oil
Sea salt and lake salt refinery equipment line includes: stainless steel elevator, mixer, conveyor, crusher, salt washing machine, iodize machine, centrifuge and drying machine, dust remover, packing machine and etc.
For the capacity of the production line, we can produce based on customers' requirement. The capacity is 3-30ton/hour.
Specificaition of 2 stage Pusher Centrifuge
|Equipment||2 stage Pusher Centrifuge|
|1||Basket diameter||560/630 mm|
|2||Basket Rotate Speed (Max)||1360rpm|
|3||Stroke of Pusher Mechanism||70-80 times/min|
|5||Main motor||Spec/Power||55 KW|
|Power supply||3 phase AC, Customized|
|6||Oil pump motor||Spec/Power||30 KW|
|Power supply||3 phase AC, Customized|
|Max pressure||8 Mpa|
|8||Dimension||3127mm × 1700mm × 1955mm|
|12||Moisture content after separation||＜4%|
Process Of Salt Refining
(A) Raw salt feeding (B) Salt washing & Milling (C) Dosing of additives & coating (D) Centrifuging (E) Drying (F) Sizing & Conditioning (G) Packing (H) Brine recycle
A) Raw salt is fed to the raw salt hopper from the stockyard or directly unloaded from the dumper. Below this hopper there is a feeder arrangement. This feeder feeds material to a conveyor. This conveyor has magnetic separators at the feed and discharge points to remove iron pieces like nails, nuts and bolts and other magnetic debris. The conveyor discharges raw salt to the feed hopper of the wet mill.
B) The raw salt crystals' soluble impurities that are trapped in grained impurities are removed by wet mill grids, which also control product size and remove other impurities. This method involves milling raw salt with brine to produce the desired effects. Gravity causes the salt slurry from the wet mill to fall into the slurry tank below. To perform primary elutriation, extra brine is introduced to the slurry tank. The slurry tank's overflow is sent to the settling ponds. For primary elutriation, salt slurry is pumped to the wash tank. The wash tank's excess brine is sent to a clarifier for cleaning before being recycled back into the system.
C) Salt slurry from the wash tank is pumped to a thickener where the slurry is conditioned for centrifuge. This as a dual purpose tank that also carries our secondary elutriation as well as thickening of the salt slurry. This slurry is then fed to the centrifuge. Salt cake from the centrifuge is taken up by a screw feeder and the mother liquor is discharged to slurry tank below,
D) The salt cake discharged into the screw feeder is dosed with iodine and other additive anti caking agent before it is carried to the fluid bed dryer.
E) The fluid bed dryer is a salt cake drying method that is widely accepted. Two components of the system—an integrated one—are used to heat and then cool the product. For the finished product to be sufficiently dry, hot air is blasted into the salt bed using a fan. To cool the heated items that are enclosed in sacs and blasted into the cooling section, ambient air is blown into the area. A bucket elevator is used to transport salt from the dryer's outlet up to the top for sizing and conditioning.
F) The dry salt from the bucket elevator is fed to a gyro screen. Oversize from the screen is sent to a dry mill (pin mill) for regrinding. The sized product is fed to the blender for conditioning to make it free flowing or iImparting properties and composition that may be required. Output from the dry mill is sent back to the screen to avoid any mixing of oversize with the final product.
G) Final product from the blender is stored in a silo. These silos feed the packing machines to pack the final product to pack the production 1 Kg. to 50 Kg. bulk packing as may be required.
H) Clear brine that overflows from the clarifier is taken to a brine tank. Sludge that settles in the clarifier is discharged iInto the settling tank. Brine from the brine tank is pumped into a brine header. This brine header distributes brine at predetermined rates to various tanks. Run-off brine from the settling pond is recovered and pumped by a transfer pump back into the process. Sludge that settles at the bottom of the pond is scrapped and disposed off to the salt pans or any other approved site.
Advantage of our equipment line:
The high quality refined salt product has high purity, shiny appearance, good free liquidity and stable iodine content.
Low loss, the loss of NaCl is under 10%.
Low energy consumption and investment.
Equipment has long service life, easy to operate and maintain.
Raw salt site
Client production facility
