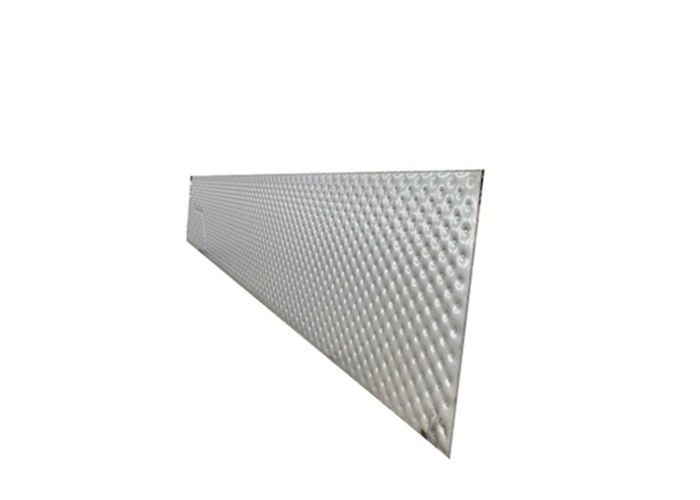

Name: Laser Welding Pillow Plate
Usage: Plate Heat Exchanger
Function: Heat Transfer
Shape Mode: Single Or Double Drum
Feature: Condenser Evaporate
Plate Material: SS304/SS316/SS316L/Titanium
High Light:

JIS dimpled stainless steel plate


SS316 dimpled stainless steel plate


Biological Fermentation plate pillow

Basic Infomation
Place of Origin: China
Brand Name: Hanpu
Certification: ISO
Model Number: Customized
Payment & Shipping Terms
Packaging Details: Standard export package, polywood, fumigated wood, filmed
Delivery Time: 30 days after down payment
Payment Terms: TT,.LC, Western Union
Supply Ability: 30000m2 per month
Product Description

High performance Industrial Lazer Welding Heat Transfer Pillow Plate Type for Biological Fermentation

Brief introduction

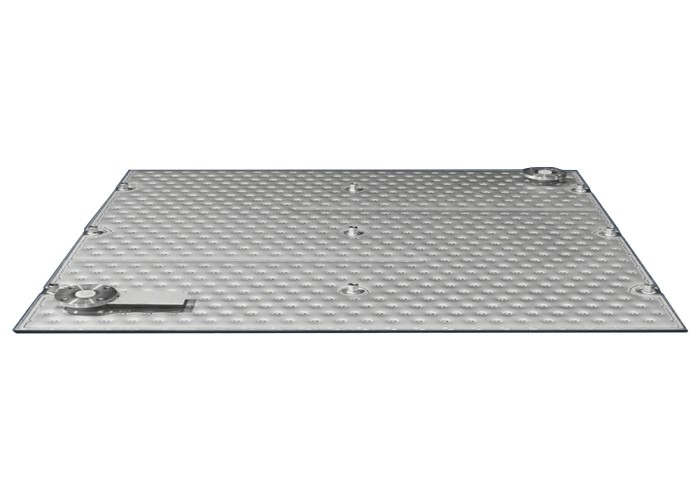

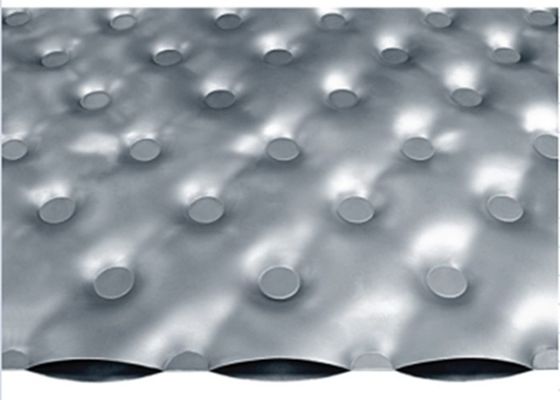

The pillow plates,also called dimpled plates or thermo plates are a special heat exchange plate made of two stainless steel plates that are laser welded together in a customized pattern.


Plate Type

1. Double-sided drum pressure, generally used as immersion heat exchange element.

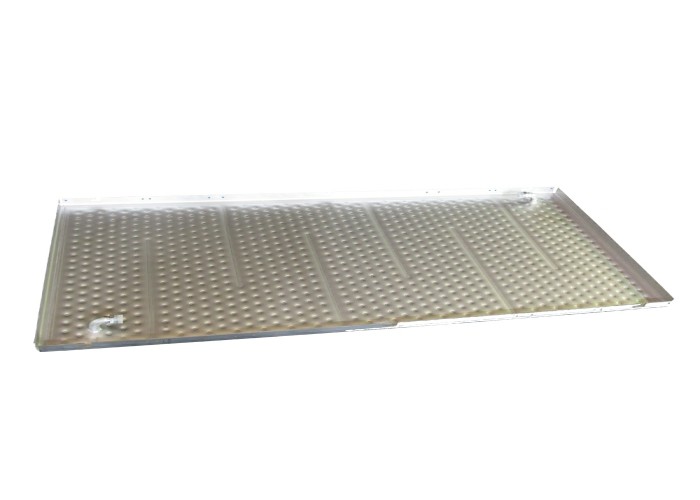

2. Single-sided drum pressure, generally as a flat sleeve or clamped heat exchanger.


Technical overview

Product Name Pillow plate
Material Stainless Steel
Color Nickle White
Grade SUS201,SUS304,SUS316,TA2,Hastelloy
Brand Hanpu
Length Max.12000mm
Width Max.2000mm
Thickness of two sheets
Double Embossed Plates Single Embossed Plates
0.8mm +0.8mm 0.8mm+2.0mm base plate
1.0mm+1.0mm 1.0mm+2.5mm base plate
1.2mm+1.2mm 1.2mm+4.0 tot 15mm base plate
1.5mm+1.5mm 1.5mm+4.0 tot 15mm base plate


Working principle

The boundary of the plate is completely laser welded to create a pressure seal. These laser welded plates are then inflated hydraulically with a hydrostatic pump or inflated with dry nitrogen. During the expansion process,pressure is applied to the steel sheets to deform the material and create a cavity for the heat exchange medium. After this stage, the plates are formed into cylindrical elements, they are connected to each other,as well as welding of flanges and conical and pressed ends.In practical applications, the additional welding path is often added in the pillow heat exchange plate, in order to adjust and control the flow of fluid into and out of the heat exchange plate nozzle position, the fluid velocity and flow rate inside plate, so as to optimize the heat exchange effect.It can be used with refrigerant, liquid or steam.

Biological Fermentation High Performance Dimpled Stainless Steel Plate 0


Product Advantages

  • Custom-made
  • highly flexible
  • Cost effective
  • Low production costs
  • Excellent turbulence design
  • According to the application any design is possible
  • Very strong,reliable,constant high-quality welds
  • Very homogeneous temperature gradient, product-gentle and conciliatory tempering of products by liquids, refrigerants and steam.
  • Less chance of leaks due to high quality welding.
  • High heat transfer coefficients at lower flow rates.
  • Better mechanical resistance to thermal cycling.
  • Long lifetime due to individually chosen materials.
  • Easy cleaning due to easily accessible single or double embossed pillow plate prime surface.
  • An extremely efficient circulation of the refrigerant ensures a much higher cooling or heating effect of our pillow plates
