2. Typical application: Pulping waste liquid NMMO Acidic wastewater As a reboiler
3. Features: Self-cleaning function, anti-fouling Very little mist entrainment Low flow resistance

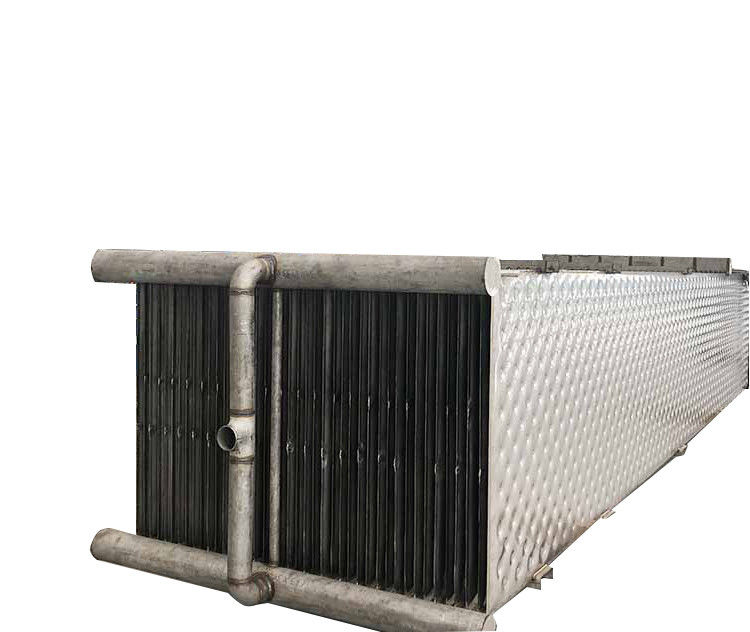

Falling Film Pillow Plate Heat Exchanger for Heat Recovery Falling Film Evaporator
Falling Film Pillow Plate Heat Exchanger
Two sheets of steel are overlapped and welded by laser. Laser ring welding is used in the middle of the sheet and two laser welding seals are used around the edge.Injecting high-pressure liquid between plates makes the plates expand and deform under pressure, forming a hollow plate heat exchanger with uneven surface.
Pillow plate heat exchanger is a kind of plate heat exchanger assembled by laser welded inflated pillow plates, the material of pillow plate can be SS304, SS316, SS316L, DSS, TA2..etc, the size, sharp, plate thickness, working pressure can be customized to meet your exact requests.
Specification
| Name | Pillow plate heat exchanger |
| Size | 5*3m |
| Thickness | 1.0mm |
| Material | SS304 |
| Embossed | Both sides embossed |
| Working pressure | 120psi |
| Temperature | 180 ℃ |
| Usage | Evaporation in the black liquor application |
Feature
1. Suitable for various media: steam, water, oil, etc.
2. Fully welded, no gasket design, no leakage, high working pressure, high working temperature,
3. Special sharp, working pressure, size can be customized
4. Wide flow channel design, the medium can efficiently transfer heat through the flow channel
5. The advantage of double embossed pillow plate is turbulence, improve the heat transfer efficiency than traditional jacket
6. Easy to install in the outer wall of the storage tank and equipment
7. Modular design, compact equipment, small footprint, easy installation, cleaning and maintenance
8. It can meet the requirements of pharmaceutical and food-grade environmental use condition
Applications
Pictures
Supply Scope
100000m2 pillow plate heat exchanger can be provided each months.
