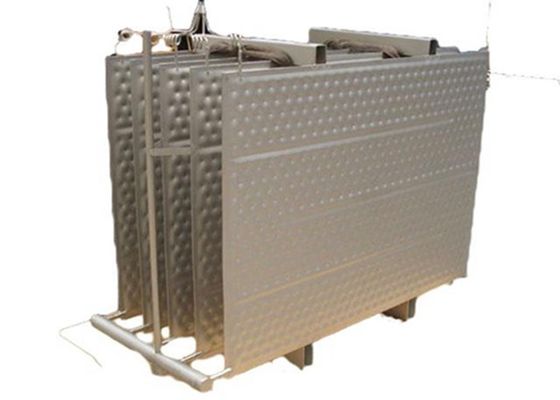

ISO SS Dimple Plate Heat Exchanger With Wide Tubes

Stainless steel Pillow Plate Heat Exchanger with Wide Tubes pillow plate



Introduction

The pillow plate, also called dimple plate or thermo plate, consists of two stainless steel plates laser welded together to weld a customized circular weld pattern. Then the plate is expanded by water pressure to form a specific single or double embossing contour on the pillow plate, and the embossing contour is used for cooling or heating. The thickness and pattern are determined by the pressure requirements.



Specifications



Product Name Pillow plate heat exchanger
Material Stainless Steel
Color Nickel White
Standard DIN GB ISO JIS BA ANSI ASMI
Grade SUS201,SUS304,SUS316,DSS2205
Overview double pillow embossed plate material ratios

Pillow plate 0.8mm+0.8mm pillow plate 1.0mm+1.0mm

Pillow plate1.2mm+1.2mm

Pillow plate1.5mm+1.5mm

Pillow plate2.0mm+2.0mm

Overview single pillow embossed plate material ratios Pillow plate 0.8 mm + 2.0 mm base plate
pillow plate 1.0 mm + 2.5 mm base plate
pillow plate 1.2 mm + 4.0 tot 15 mm base plate
pillow plate 1.5 mm + 4.0 tot 15 mm base plate
pillow plate 2.0 mm + 5.0 tot 15 mm base plate



Advantages



1. Low flow resistance.

2. The design of wide flow channel without contact,not easy to block.

3. The self-cleaning effect brought by the best turbulent design,slow down fouling,and high heat transfer coefficient.

4. The end cover is detachable for easy cleaning.

5. No gasket design,low maintenance cost.



Application



The machine can produce pillow plates, which can be used for a wide range of products, such as; heat exchangers, filter shells, falling films, square containers, cooling containers, constant walls, climate chambers, ice storage, pipes, heating or cooling vibration feeds Tanks, cylindrical tanks, and tanks of other shapes and designs, such as rectangular or oval. They can also be used in various industries, such as the food and beverage industry and other food manufacturing and processing industries. The surface can be brushed, polished or sandblasted. The possibilities are endless, because you can produce every welding pattern shape and any desired board shape can be welded or engraved. The pillow board can be a single or double embossed board.
