Laser Welding Brazed Stainless Steel 316l Pillow Plate Evaporators For Heat Exchanger

100m2(except for the sample)
MOQ
USD100/m2-USD300/m2
Price
Laser Welding Brazed Stainless Steel 316l Pillow Plate Evaporators For Heat Exchanger
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Pillow Plate Heat Exchanger
Material: Stainless Steel Or Customized
Heat Exchanger Type: Cooling Storage Tank
Usage: Evaporative Air Cooling System
Plate Material: Stainless Steel Or Customized
Standard: AISI, ASTM, GB, DIN
Application: Condensor/evaporator/heat Exchanger
Tolerance: ±3%
Highlight:

Performed Jacketed pillow plates

,

ASTM pillow plates

,

2.0mm dimpled stainless plate

Basic Infomation
Place of Origin: China
Brand Name: Hanpu
Certification: ISO
Model Number: Customized
Payment & Shipping Terms
Packaging Details: Standard export package, polywood, fumigated wood, filmed
Delivery Time: 30 days after down payment
Payment Terms: TT,.LC, Western Union
Supply Ability: 30000m2 per month
Product Description

Stainless Steel Performed Jacketed Pillow Plate Heat Exchanger heat exchanger plate price

Product description
Pillow Plate Heat Exchanger is a highly versatile panel-type heat exchanger that can be welded, formed, or fitted to meet your exact needs. It can be applied in irregular shapes, at high pressures, high temperatures, or in corrosive environments.

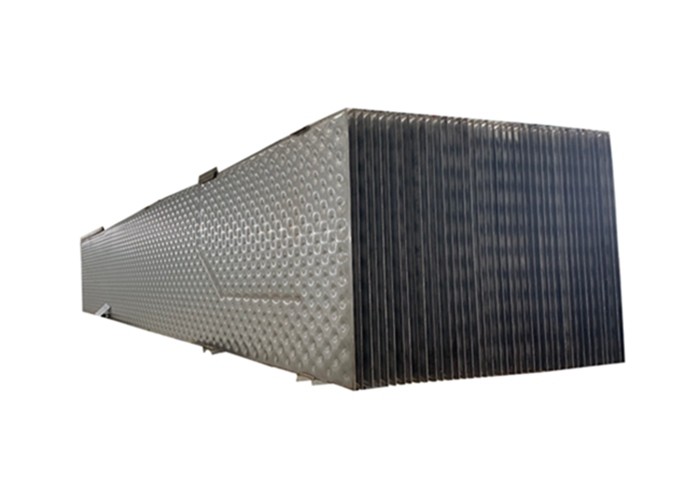

Laser Welding Brazed Stainless Steel 316l Pillow Plate Evaporators For Heat Exchanger 0

Features

1. Unique three-dimensional surface runner:

2. High heat transfer coefficient

3. It is not easy to scale.

4. Not easily blocked

5. Compact structure

6. High temperature and high pressure resistance

7. Fully welded structure

8. Floating Head Design

9. Easy to clean

10. Lower flow resistance

11. Corrosion resistant



Specifications

Product Name Pillow plate heat exchanger
Material Stainless Steel
Color Nickel White
Standard DIN GB ISO JIS BA ANSI ASMI
Grade SUS201,SUS304,SUS316,DSS2205
Overview double pillow embossed plate material ratios

Pillow plate 0.8mm+0.8mm pillow plate 1.0mm+1.0mm

Pillow plate1.2mm+1.2mm

Pillow plate1.5mm+1.5mm

Pillow plate2.0mm+2.0mm

Overview single pillow embossed plate material ratios Pillow plate 0.8 mm + 2.0 mm base plate
pillow plate 1.0 mm + 2.5 mm base plate
pillow plate 1.2 mm + 4.0 tot 15 mm base plate
pillow plate 1.5 mm + 4.0 tot 15 mm base plate
pillow plate 2.0 mm + 5.0 tot 15 mm base plate



Product advantages

- Maintenance-free in dust loaded air
- No expensive interrupts as cleaning takes place during production

- Delivered with built-in CIP system

- Investment with short pay-back period

- Low maintenance cost

- Compact design and simple installation

- Good thermal operating efficiency due to high heat transfer coefficients

- Usable for vacuum up to 100 mbar

- Heat recovery with constant condensation

- Long life due to stable and durable corrosion resistant materials



Application

1. Wide-channel plate-shell heat exchanger:
Specially designed for working conditions with larger particles or higher viscosity, the medium can fully flow in the runner
without blockage under the above working conditions. Generally, the solid medium goes between the plates without contacts, and the
clean medium goes through the plate cavity with contacts:
Flow resistance is small and scaling is not easy.
High heat transfer coefficient.
Easy to clean.
2. Plate heat recovery unit:
It is a special case of plate and shell heat exchanger, which is used to recover various waste steam and waste heat.
3. Chill System:
Used as evaporator in refrigeration system
Falling film ice water machine
Large Slip Ice Maker
4. Most of the heat transfer medium can be used for Pillow Plate Heat Exchanger
1. Steam
2. Hot water
3. Cooling water
4. Conduction oil
5. Heat transfer fluid
6. Glycol solution

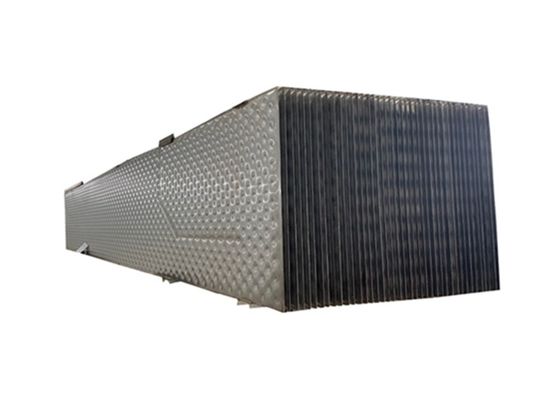

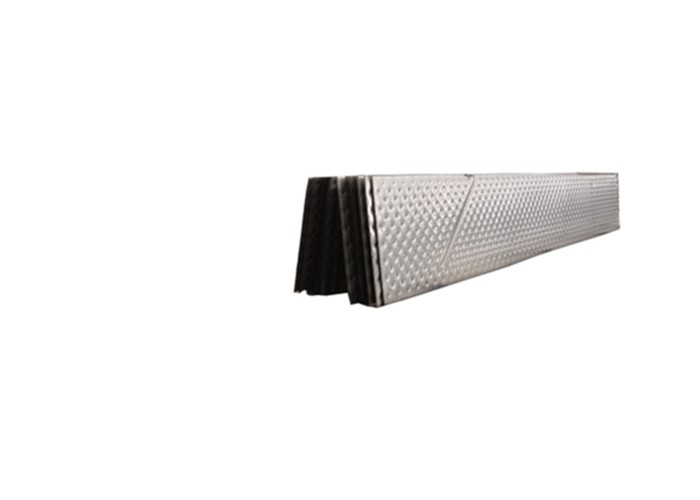

Laser Welding Brazed Stainless Steel 316l Pillow Plate Evaporators For Heat Exchanger 1Laser Welding Brazed Stainless Steel 316l Pillow Plate Evaporators For Heat Exchanger 2

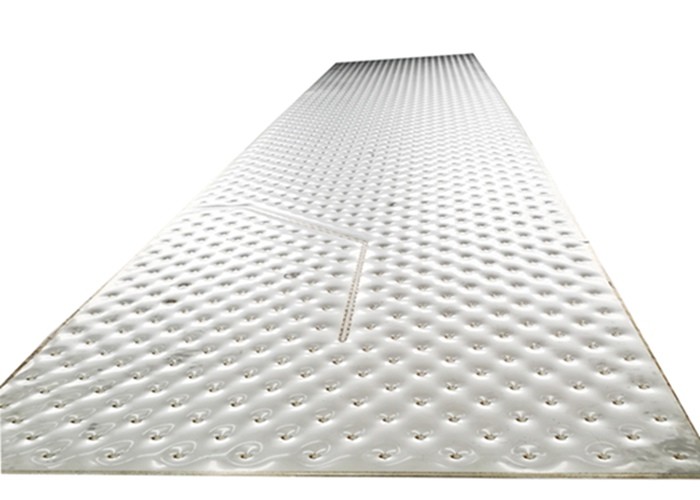

Laser Welding Brazed Stainless Steel 316l Pillow Plate Evaporators For Heat Exchanger 3



Our services

1. 12 months guarantee period from machine arriving date.

2. Our technicians could be dispatched for overseas service.

3. 7*24 hours technical consultation.

4. Your workers could get trained both in our factory and yours.

5. Routine tracing till the machine work properly will be done timely.

6. Your suggestions or any comments & reflection would be treated in priority.

7. Marketing team will visit you during our visit in your country if you require.



Tips:dimple jacket designl,shell and plate heat exchanger,dimple jacket sheet
