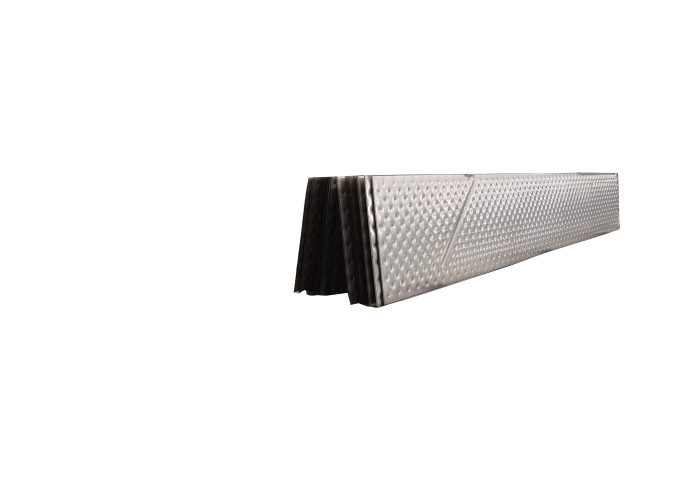

Energy Saving Heat Exchange Dimple Plate Stainless Steel

100m2(except for the sample)
MOQ
USD100/m2-USD300/m2
Price
Energy Saving Heat Exchange Dimple Plate Stainless Steel
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Stainless Steel Heat Exchange Pillow Plate
Usage: Plate Heat Exchanger
Brand: Hanpu
Function: Heat Transfer
Principle: Large Heat Exchange Area
Feature: High Heat Transfer Coefficient
Plate Material: Stainless Steel Or Customized
Length: Length
High Light:

SUS201 dimple plate stainless steel

,

ANSI dimple plate stainless steel

,

Heat Exchange pillow for plate

Basic Infomation
Place of Origin: China
Brand Name: Hanpu
Certification: ISO
Model Number: Customized
Payment & Shipping Terms
Packaging Details: Standard export package, polywood, fumigated wood, filmed
Delivery Time: 30 days after down payment
Payment Terms: TT,.LC, Western Union
Supply Ability: 30000m2 per month
Product Description

Energy-Saving Dimple plate stainless steel Heat exchange Pillow Plate



Brief itroduction
The Pillow Plate are heat exchanger plates consisting of laser welded two stainless steel sheets. The external circuit of this device is welded in a complete laser way to create a pressure limit. The contour is welded on the edges of the Pillow Plate due to this process a tight part is created.



Plate tape

1. Pillow plate with a pillow at one side is made when a thin plate is laser welded on a thick plate and during the inflation of the pillow the thick plate does not deform. So a pillow plate where the -2- thin plate has been deformed with a pillow and the thick plate is still flat or in the rolled radius is
called a single embossed pillow plate

2. Pillow Plate with a double bulge on each side is created when two equally thick plates to be welded together, during the inflation of the pillow plate, both plates forming the same. A pillow plate with both sides equally inflated pillows is called “double embossed pillow plate”.



Technical overview

Product Name Pillow plate heat exchanger
Material Stainless Steel
Color Nickel White
Standard DIN GB ISO JIS BA ANSI ASMI
Grade SUS201,SUS304,SUS316,DSS2205
Brade Hanpu
Length Customized



Product advantages
1. Cost-effective due to low welding costs

2. Thinner materials can be used, saving you on material costs

3. Pillow Plates' welding pattern guarantees high turbulence and therefore creates high overall heat transfer coefficients

4. Reduced deposition (algae, lime, etc.) due to this higher turbulence (less fouling)

5. Due to the low volume in the plate, little cooling / heating fluid needs to be circulated. As a result, less pump capacity is required

Energy Saving Heat Exchange Dimple Plate Stainless Steel 0

Energy Saving Heat Exchange Dimple Plate Stainless Steel 1

Energy Saving Heat Exchange Dimple Plate Stainless Steel 2

Energy Saving Heat Exchange Dimple Plate Stainless Steel 3



Certification

Energy Saving Heat Exchange Dimple Plate Stainless Steel 4

Our services

1. 12 months guarantee period from machine arriving date.

2. Our technicians could be dispatched for overseas service.

3. 7*24 hours technical consultation.

4. Your workers could get trained both in our factory and yours.

5. Routine tracing till the machine work properly will be done timely.

6. Your suggestions or any comments & reflection would be treated in priority.

7. Marketing team will visit you during our visit in your country if you require.



FAQ

1. How do you protect the quality?

As state owned enterprise with more than 100years history, we have strict operation policy,advanced processing machines to guarantee the precision, workers with operation license, related components are from world famous brand, Series of test and inspection are done in the whole producing stage.

  • What is your advantage compared with your competitors?

Quality and experience, we are top centrifuge supplier in China,our designs and structures are analogous to world leader brands.

  • Is your price competitive?

My price is not the lowest in China, but we promise, for the same quality and collocation, my price is the most favorable, for the same price, my quality is definitely superior to other brands.

  • Will you dispatch technicians for installation and commissioning?

Yes, we will upon required.

  • Do you have OEM service? Do you supply the parts?

Yes, we do, as long as you provide us your drawing and detailed requirements.

  • Do you have agents or service centre abroad?

We have some partnership in several countries as Indonesia, Brazil, USA.

  • How can we visit your factory?

If you come from aboard, air to shanghai or Nanjing airport, or if you arrive shanghai, you can take bullet train. - If you come from domestic city, air or train directly to Nanjing Nan or WUXI east, we will pick you up both from airport or railway station.

  • Can we visit your end user or contact them?

Yes, we will provide you the name list, and arrange the visit after their approval.



Tips:Laser welded pillow plates,pillow plate heat exchanger, Cooling and/or heating of silos by means of jacket plates
