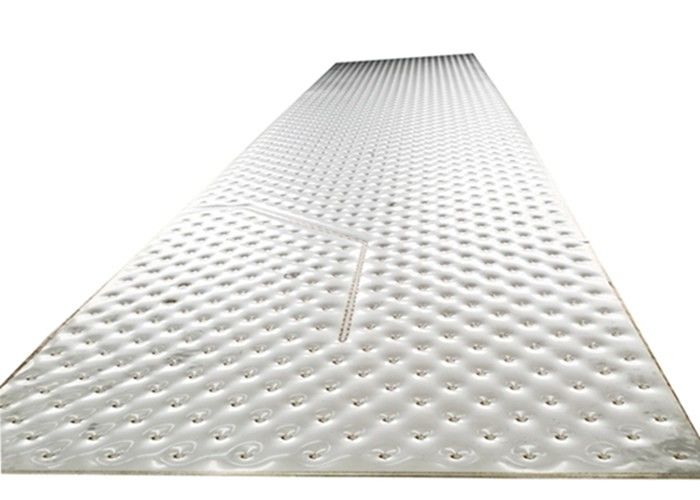

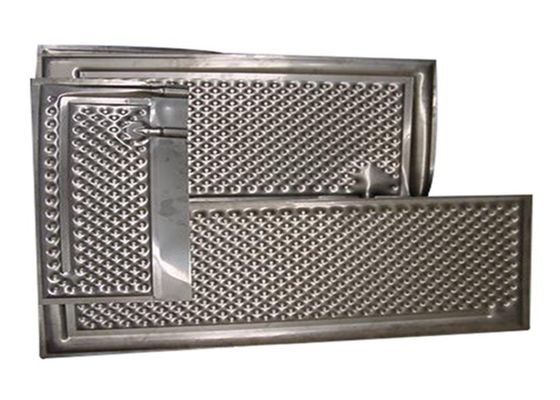

Stainless steel double embossed pillow plate for heating or cooling Embossed Sheet

Technology

The Pillow Plate are heat exchanger plates consisting of laser welded two stainless steel sheets. The external circuit of this device is welded in a complete laser way to create a pressure limit. The contour is welded on the edges of the Pillow Plate due to this process a tight part is created.

The “pillow” itself is pumped hydraulically, which guarantees the reliability and safety of the filling process. During inflation, a pressure is applied to the steel sheets, which allows for deformation of the material and the creation of a cavity for the use of a heat exchange medium. After this stage, the plates are formed into cylindrical elements and they are joined with each other, as well as welding of flanges and conical and pressed ends.



Technical overview

Product Name Pillow plate
Material Stainless Steel
Color Nickle White
Standard DIN GB ISO JIS BA ANSI ASMI
Grade SUS201,SUS304,SUS316,TA2,Hastelloy
Brand Hanpu
Length Max.12000mm
Width Max.2000mm



Working principle

The plate heat exchangers are made of stainless steel and are ideal for the indirect heating and cooling of process liquids in plants or tanks. They are manufactured to the specific requirements of each customer. They transfer the thermal energy between the heat exchanger medium that flows through the heat exchanger and the process liquid.

The process liquid in the container circulates around the plate heat exchanger and is heated up to the desired working temperature and maintained. If heat is generated in a process (for example by a rectifier or an exothermic reaction), this can be cooled down by the heat exchangers. For heating applications hot water, steam, saturated steam and thermal oil can be used as a heat exchanger medium. Water, salt solutions and glycol are suitable for cooling.



Advantages
1. Pillow plate welding pattern ensures turbulent flow, creating a higher heat transfer coefficient and low deposition and fouling
2. Can withstand high pressures
3. Serviceable at cryogenic temperatures
4. Minimal pressure drop
5. Can easily withstand cyclic thermal loads
6. Completely laser welded
7. Cost effective



Application

1. Inter and After Coolers

2. Condensers

3. Evaporators

4. Heaters

5. Preheaters

6. Reboilers
