Starch Dewatering Horizontal Centrifuge Machine Titanium Centrifugal Separator

Starch Dewatering Horizontal Centrifuge Machine Titanium Centrifugal Separator

  • High Light

    PPC horizontal centrifuge machine


    Starch Dewatering horizontal centrifuge machine


    PPC titanium centrifuge

  • Product Name
    Horizontal Peeler Centrifuge
  • Operation
    Continuous Automatic
  • Core Comonentsp
    PLC, Motor
  • Application
    Starch, Calcium Carbonate, And Others
  • Equipped
    PLC System, Inverter
  • Material
    Stainless Steel
  • Marketing Type
    Hot Product 2020
  • Certification
  • Warranty
    1 Year
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Price
    USD60000-100000/set FOB Shanghai
  • Packaging Details
    Standard export package,
  • Delivery Time
    60-75 days after down payment
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    300 sets/month

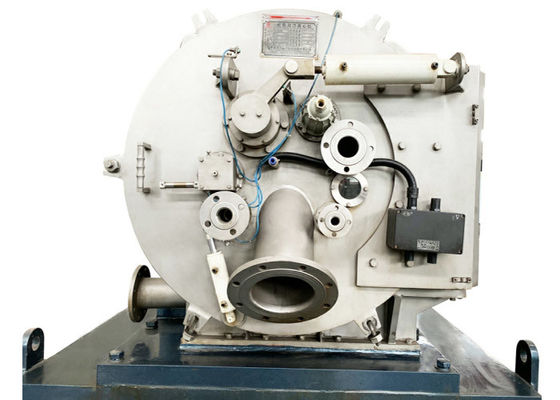

Starch Dewatering Horizontal Centrifuge Machine Titanium Centrifugal Separator

                                   PPC Series Starch Dewatering Peeler Centrifuge titanium centrifugal separator for sale


Brief Introduction
The machine is solid-liquid separation equipment which adopts continuous operation and intermittent discharging.
It is controlled by PLC.It regulates speed by frequency convertor, braking system adopts dynamic braking and regenerative braking.
Through such procedures as product level detection, speed, inspection, shaft temperature and vibration monitoring, the whole separation process is automatic circulative work(including feeding, dehydration, washing, discharging and etc.)
Also manual operation mode is available which can be changed over from full-automation mode by customer's will.
PPCC automatic centrifuge adopts wall penetration installation.Its power area and processing area can be separated.

It can be used in pharmaceutical industry which has high requirements. The whole housing bucket can be open for inspection and cleaning.


Working principle
Feeding nitrogen or other inertgas into the host machine, after reaching the pre-determined content, when predetermined target is met and drum speed is suitable for feeding, feeding valve will be open automatically and product level detection begins to work.

When layer thickness is thick enough to reach the product detection slab, feeding valve closes to stop feeding. Under the effect of centrifugal force, most of the liquid in suspension is thrown out through filter cloth(or filter net) and the holes on drum wall then flows into mother liquid tank through horizontal liquid outlet(initial filter). With product dehydration going on, centrifuge will automatically slow down to washing speed according to technical requirement for washing.

Washing valve opens automatically With washing liquid rising to a certain height, washing valve closes and centrifuge speeds up automatically for further dehydration(secondary filter).

After a moment of operation,product will be fully dried. Then discharging will be in process.Then discharging valve opens and discharging cylinder begins to work when centrifuge automatically slows down to predetermined speed. With scraper rising spirally and automatically, solid product is scraped down into the hopper equipped with spiral discharger: With constant motion of spiral discharger, product is pushed out and discharged through valve.

Scraper rises closer to filter cloth with a certain distance till the bar on scraper device approaches proximity switch to stop
scraper rising then retreats quickly after a short stay(about 15s)then enters next cycle.

Technical parameter

Model Loading capacity (kg)

Max speed


Motor power


PPCC-53 53 2400 18.5
PPCC-130 130 1500/1800 30
PPCC-230 230 1400 37
PPCC-270 270 1400/1700 37
PPCC-430 430 1200 55
PPCC-585 585 1200 55
PPCC-900 900 950 90
Starch Dewatering Horizontal Centrifuge Machine Titanium Centrifugal Separator 0
Starch Dewatering Horizontal Centrifuge Machine Titanium Centrifugal Separator 1
Starch Dewatering Horizontal Centrifuge Machine Titanium Centrifugal Separator 2

Company introdcution

Jiangsu Hanpu Mechanical Technology Co., Ltd. is a project engineering company jointly established by Jiangsu Saideli Pharmaceutical Machinery Co., Ltd., Jiangsu Zhongyi Environmental Technology Co., Ltd., FERREO A/S in Denmark, Shanghai Jiaotong University and Nanjing Kingreat Machinery Co., Ltd. Hanpu main projects include but are not limited to: MVR evaporation system,powder washing salt and vacuum salt production project, oil tank sludge cleaning project, landfill leachate treatment project,plant/animal oil processing production line, urban wastewater treatment project, various wastewater treatment projects, and CBD oil extraction production line. Technical support and transfer of API product technology package. The main products are centrifuge series, multi -effect and MVR evaporation and crystallization equipment, laser welding heat transfer board, lithium battery material mixing equipment, pressure vessel and titanium, zirconium, nickel, and other non-standard special equipment.
