Multi Effect Thermal Vapor Recompression Evaporation

1 set
MOQ
100,000USD~9,000,000USD/SET
Price
Multi Effect Thermal Vapor Recompression Evaporation
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Crystallization Plant
Heating Method: Vapor Compressor Jet
Voltage: Customized,220V,380V,440V
Certification: ISO9001,CE
Place Of Origin: Jiangsu,China
Key Selling Points: Steam Saving
Warranty: 1 Year
Packaging Details: Outer Wooden Case,Inner Anti-collision Broken Plastic
Process: Vacuum Evaporation
After-sales Service: Local Service,Field Installation
High Light:

ISO thermal vapor recompression evaporation

,

380V thermal vapor recompression evaporation

,

Multi Effect TVR system

Basic Infomation
Place of Origin: Jiangsu,China
Brand Name: HANPU
Certification: ISO,CE
Model Number: HP-TVR
Payment & Shipping Terms
Packaging Details: Bulk with strap fixed
Delivery Time: 90 days
Payment Terms: L/C, T/T, D/P
Supply Ability: 1 set/3 months
Product Description

High quality Multiple Effect Machine Effectiveness of TVR Crystallization Plant



Multi-effect falling film evaporators with thermal vapour recompression (TVR)

Multi-effect falling film evaporators with a thermal vapour recompression are good valued and extremely energy efficient. The thermo-compressor uses the high pressure steam and mixes the low pressure vapours with it. A thermo compressor substitutes one or two evaporator column compared to a multi-effect evaporator, i.e. the specific steam consumption of a TVR-evaporator is reduced by around 20 to 50 %.



APPLICATION

The Evaporator Falling Film TVR provides a fully automatic and continuous evaporation system. The Evaporator Falling Film TVR is suitable for the production of the complete range of products. The system is customer specific designed, and therefore available for a wide range of product compositions and capacities.



HIGHLIGHTS

Long production runs due to high hygienic standards

Proven technology

Fully cleanable (Cleaning in Place)



WORKING PRINCIPLE

The Evaporator Falling Film TVR is fed from the wet process area. From the balance tank product is heated to at least boiling temperature of the first calandria, depending on the final product demands. This can be done by plate heat exchangers, tubular heat exchanger and/or direct heaters by use of condensate, excess vapours, steam and/or hot water. After the heating process the product is fed to the first calandria where the product starts to evaporate. The evaporator works according the falling film principle, which means that product and vapour are flowing downwards through the tubes. At the bottom, concentrate falls down and vapour is sucked into the separator, whereby the smaller concentrate droplets are separated from the vapour. Concentrated product is pumped to the next pass, whereby the product is further concetrated. After the final calandria pass product is pumped, depending on the product and required concetrate properties, to a next calandria, concentrate tanks of the dryer or via a flash cooler to crystallisation tanks. As the amount of water evaporation is limited and the required temperature difference is relatively high, steam is used as driving force. This is referred to as thermal vapour recompression (TVR). Depending on capacity and specific product needs the number of stages and thermo-compressors are defined. A density controller in the concentrate flow is used to set the steam flow to the thermo-compressor.



Performance Comparison for Different Evaporator
Item Single effect evaporator multi-effect evaporator TVR evaporator MVR evaporator
Energy consumption energy consumption is much higher than others, 1ton water will consume 1Ton steam in theory comparatively energy conservation Base on traditional multi-effect evaporator, one more effect added, but higher pressure steam driven needed The most energy saving technology for evaporator, but 10-40kwh power consumption
Floor space Small large large small
Energy sources steam & power, need steam pipe network and boiler steam & power, need steam pipe network and boiler steam & power, need steam pipe network and boiler, need high pressure steam. electricity, don't need pipe network, all the close-loop circulation system
Automaticity Semi automatic Full automatic operation, continuous evaporation Full automatic operation, continuous evaporation Full automatic operation, continuous evaporation



MVR and triple effect evaporation equipment running cost compare:

10T/h Evaporator running cost compare
Name MVR evaporator Triple-effect evaporator
Steam consumption cost 0.6(material pre-heating steam consumption)t/h×180RMB/t=108RMB/h [4.0+0.6(material pre-heating steam consumption)]t/h×180RMB/t=828RMB/h
Electric charge 500kw/h×0.80RMB/kw=400RMB/h 160kw/h×0.80RMB/kw=128RMB/h
Recovery of condensed water 10.6t/h×3RMB/t=32RMB/h 14.6t/h×3RMB/t=44RMB/h
Operation cost per hour 108+400-32=476RMB/h 828+128-44=912RMB/h
Annual operating cost 476RMB/h×24h×300day=3427200RMB 912RMB/h×24h×300day=6566400RMB
Annual operating cost difference:6566400-3427200=3139200RMB













FAQ

What is the difference between an MVR and TVR evaporator?

MVR is a Mechanical Vapor Recompression system, energy source is Power/Electricity, very low energy consumption

TVR is a Thermal Vapor Recompression system- energy source is steam, energy consumption dependent on number of stages (calandrias) of evaporation.



Why use a Falling Film evaporator?

The falling film evaporator is a gentle way to remove water in a very energy efficient way. Small footprint for high evaporation.



How high can you go in total solids?

This is very dependent on type of product, all products must be individually considered, mostly the stickiness and viscosity will determine the total solids.



Does viscosity have an impact on the possibility to use an evaporator?

Yes, the viscosity is a very critical factor for a good evaporation, the product must be pumpable.



What kind of products can you run on a falling film evaporator?

Almost all pumpable liquids and soluble products can be run on a falling film evaporator.

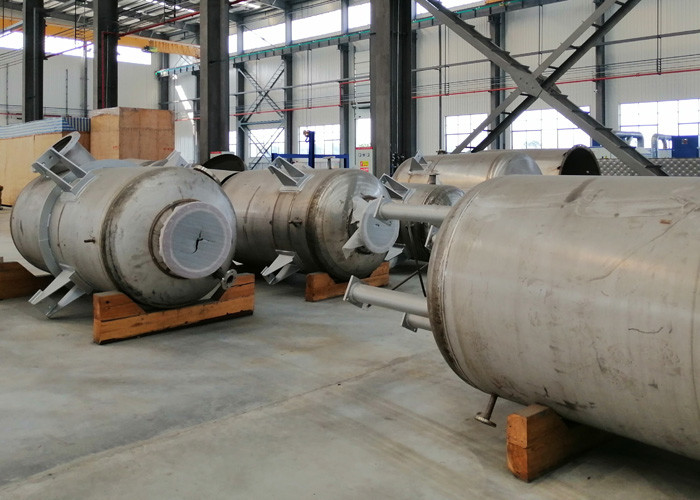

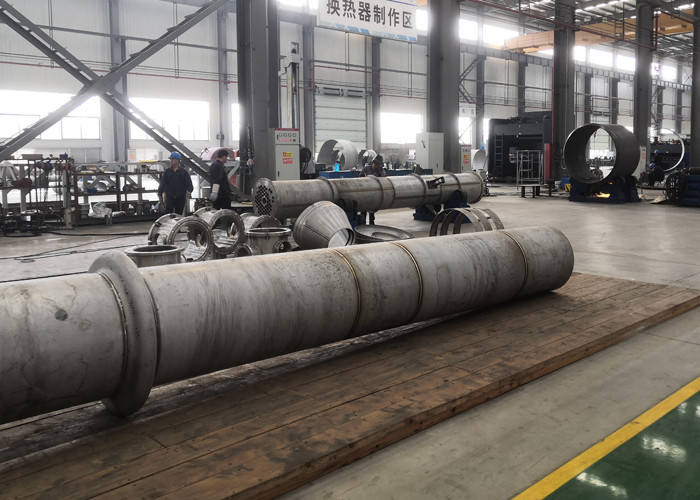

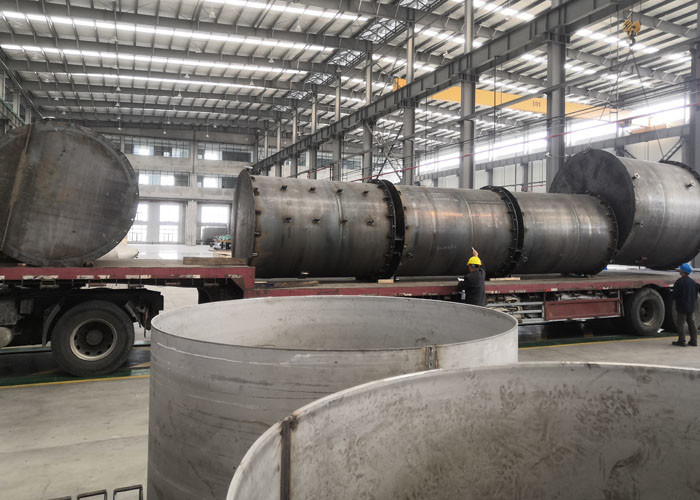

Our production Equipment



Multi Effect Thermal Vapor Recompression Evaporation 0

Multi Effect Thermal Vapor Recompression Evaporation 1

Multi Effect Thermal Vapor Recompression Evaporation 2
