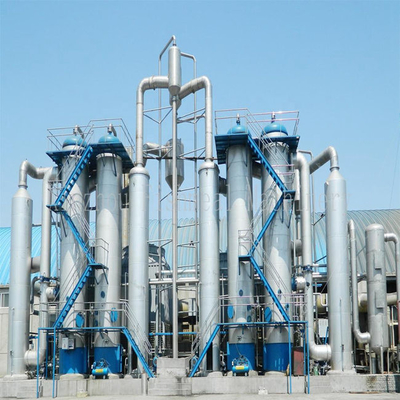

Industrial Water Distiller Vacuum Evaporation Machine TVR Evaporator
Description
TVR evaporator system is improved compared to the system that directly discharges secondary steam. It uses a jet heat pump to recover part of the secondary steam. Since the jet heat pump 1kg high-pressure steam can only eject 0.3kg of secondary steam, so although this system is simple and compact, its energy efficiency is relatively low. The common forms of heat pump evaporation are generally the above-mentioned jet heat pump evaporation (TVR) and direct compression secondary steam mechanical compression heat pump evaporation (MVR). In recent years, due to the significant progress in engineering materials, structure and manufacturing technology and With the rise of energy prices, mechanical compression heat pumps have become more and more important. Heat pumps are widely used for the evaporation and concentration of various dilute solutions. In actual industrial production, the use of heat pump evaporation technology has proved to be very economical. The heat pump device only needs to consume a small amount of high-quality energy to obtain more heat energy, which reduces the waste of energy. In most applications, the energy consumption of heat pump evaporation is much lower than that of single-effect or multi-effect evaporation, and the use of heat pump technology can replace a large number of boiler rooms, saving fuel, reducing atmospheric pollution, and reducing the use of waste heat. As a result of heat pollution, the city’s environmental sanitation is bound to be improved, and it is also beneficial to the ecological balance. Heat pump evaporation is a very reliable evaporation method with low energy consumption. Due to energy saving and stability, it has been widely used in the chemical process.
Specification
| 10T/h Evaporator running cost compare |
|
| Name |
MVR evaporator |
Triple-effect evaporator |
|
| Steam consumption cost |
0.6(material pre-heating steam consumption)t/h×180RMB/t=108RMB/h |
[4.0+0.6(material pre-heating steam consumption)]t/h×180RMB/t=828RMB/h |
|
| Electric charge |
500kw/h×0.80RMB/kw=400RMB/h |
160kw/h×0.80RMB/kw=128RMB/h |
|
| Recovery of condensed water |
10.6t/h×3RMB/t=32RMB/h |
14.6t/h×3RMB/t=44RMB/h |
|
| Operation cost per hour |
108+400-32=476RMB/h |
828+128-44=912RMB/h |
|
| Annual operating cost |
476RMB/h×24h×300day=3427200RMB |
912RMB/h×24h×300day=6566400RMB |
|
| Annual operating cost difference:6566400-3427200=3139200RMB |
Feature

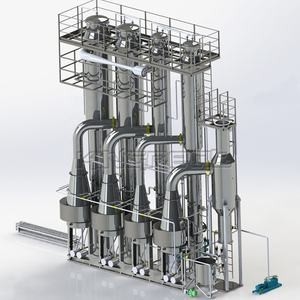

The MVR forced circulation evaporation system consists of the main equipment of the evaporator, separator and forced circulation pump, and steam compressor. The material exchanges heat with the steam outside the tube in the tube of the evaporator, and the temperature rises; the solution after the temperature rise is divided into two phases of steam and solution, and the steam rises to the separator, and the demister separates the liquid entrained in the steam. The droplets are purified and sent to the compressor. The compressor compresses the steam and transports it to the evaporator shell for heating steam to realize secondary steam recycling and continuous evaporation. Evaporation produces secondary steam overflowing from the material, the material is concentrated into supersaturated material, crystallized, and the crystal slurry is output from the circulation pipeline by the discharge pump; the mother liquor enters the forced circulation pump, enters the evaporator under the action of the circulation pump, and then evaporates. This cycle is continuously evaporated to concentrate and crystallize. It has the following advantages: 1. Suitable for materials with high viscosity, 2. Materials with particles; 3. High concentration ratio; 4. High flow rate of pipeline, not easy to dry wall or scale.
Application
Evaporation and concentration for process industry
1)food fermentation (aginomoto, citric acid, starch and sugar)
2)pharmacy (traditional Chinesemedicine preparation, low temperature concentration of western medicine)
3)fine chemical (pesticide, synthetic dyes, organic pigments, paints, spice and essence, cosmetic)
4)chlorine chemical (salt water concentration)
5)seawater desalt
6)metallurgical in
"zero release" solution for industrial waste water
1)Ammonia and chloride waster water, multiple inorganic salt waster water
2)electroplating waste water
3)printing and dyeing waste water
4)food industry waste water
5)paper waste water
6)petrochemical, metallurgy waste water

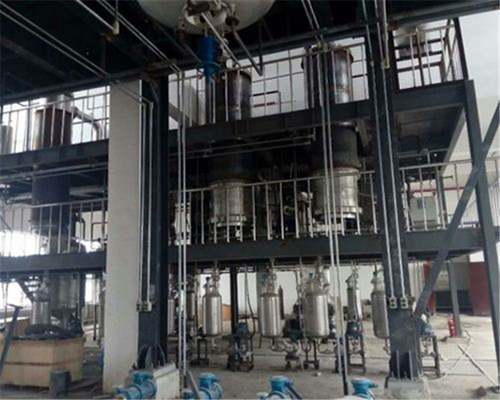

MVR SYSTEM INTRODUCTION
Mechanical vaporization re-compression system, which is called MVR which principle is to compress the second steam generated by evaporator by high efficiency steam compressor; this process transfers electric energy to eating energy and higher the pressure and temperature of second steam. The second steam with higher temperature will be sent to evaporation room to heat the product for evaporation. So the latent heat of vaporization of the second steam can be circularly used. Making use of less energy which is the mechanical energy of compressor blade wheel as the compression heat pump, energy is added into the heating medium and is circularly used in heating process. Under this circumstance, no need to add first steam as heating medium.
MVR SYSTEM ADVANTAGE
(1)Lowest energy consumption and operation cost, electricity consumption of one ton water’s evaporation is 15-50kw. (2)Temperature difference is small, heating is gentle, the loss of product is less.
(3)Compact structure and lower building cost; plant area is 50% less than that of traditional evaporator.
(4)Surrounding is friendly, no gas and no steam.
(5)Good adaptability in low loading condition, flexibility of operation is good and has a longer service life.
(6)Consumption of circular water is low and energy saving is obvious.
(7)No fresh steam is needed.
(8)Evaporation can be carried out under 40℃ and equipment need not to be frozen, specially suitable for thermal activity products.
|
|
|
|
|
|
|
|
|
|
Steam consumption
(t steam/ t water)
|
|
|
|
|
|
|
|
|
Application
Applied to multiple areas, such as: "zero release" solution for industrial waste water, Evaporation and concentration for process industry, food fermentation (aginomoto, citric acid, starch and sugar), fine chemical (pesticide, synthetic dyes, organic pigments, paints, spice and essence, cosmetic), chlorine chemical (salt water concentration), seawater desalt and metallurgical industry, etc.
