Distiller Ethanol Thermal Vapor Recompression Evaporator

Distiller Ethanol Thermal Vapor Recompression Evaporator

  • High Light

    Ethanol thermal vapor recompression evaporator


    SUS304L thermal vapor recompression evaporator


    316L multi effect evaporator system

  • Key Selling Points
    TVR Multi Effect Evaporator
  • After Warranty Service
    Video Technical Support
  • Power
    Customers' Requirement
  • Material
  • Function
    Distillation And Evaporation
  • Power Source
  • Evaporation Type
    Fallling Film Evaporation
  • Color
    Stainless Steel Color
  • Voltage
  • Warranty Of Core Components
    1 Year
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Price
  • Packaging Details
    Bulk with stronge packing
  • Delivery Time
    3 months
  • Payment Terms
    T/T, L/C, D/A, D/P, Western Union
  • Supply Ability
    1 set/ 3 months

Distiller Ethanol Thermal Vapor Recompression Evaporator

Industry Distiller Ethanol TVR Multi effect Evaporator system with jet compressor steam

TVR evaporation and concentration equipment

It is an evaporation concentration crystallization equipment which uses TVR heat pump to recompress part of secondary steam as heat source of heating chamber.

The supply conditions for stable supply of saturated steam above 0.7MPa are required.

The performance of TVR is directly related to the effect of steam saving, so it is necessary to use products with guaranteed operation performance.

If the quality and performance of TVR is poor, the steam saving effect is not obvious, and it is easy to damage because of the noise and vibration.


How Thermal Vapor Recompression Evaporators Work

To reduce energy consumption, water vapor from an evaporator is entrained and compressed with high pressure steam in a thermocompressor so it can be condensed in the evaporator heat exchanger. The resultant pressure is intermediate to that of the motive steam and the water vapor. A thermocompressor is similar to a steam-jet air ejector used to maintain vacuum in an evaporator.

Only a portion of the vapor from an evaporator can be compressed in a thermocompressor with the remainder condensed in the next-effect heat exchanger or a condenser. A thermocompressor is normally used on a single-effect evaporator or on the first effect of a double- or triple-effect evaporator to reduce energy consumption. Like mechanical recompression, thermal recompression is more applicable to low boiling-point rise liquids and low to moderate differential temperatures in the heat exchanger to minimize the compression ratio.

The double-effect evaporator with thermal recompression requires 33% less steam than the conventional double effect. In essence, the steam usage for the double effect with thermal recompression is comparable to that of a triple-effect evaporator.


Features of thermal vapor recompression evaporation crystallizer:

1. In the process of thermal vapor recompression, the steam in the boiling chamber is recompressed to a higher pressure in the heating chamber according to the heat pump principle.

2. The saturated steam temperature corresponding to this heating steam pressure is high


Thermal vapor recompression evaporation crystallizer parameters:

Evaporation(t/h) 0.5-4

Raw steam consumption(t/h) 0.2x evaporation/three-effect meter

Raw steam pressure(MPa) 0.2-0.4

Steam energy consumption ratio(t/t) 0.02

Electric power(Kw) (28-62)x evaporation

Compressor provides temperature range 10-40℃

Evaporation temperature range 40-80℃



The Evaporator Falling Film TVR provides a fully automatic and continuous evaporation system. The Evaporator Falling Film TVR is suitable for the production of the complete range of products. The system is customer specific designed, and therefore available for a wide range of product compositions and capacities.


Performance Comparison for Different Evaporator
Item Single effect evaporator multi-effect evaporator TVR evaporator MVR evaporator
Energy consumption energy consumption is much higher than others, 1ton water will consume 1Ton steam in theory comparatively energy conservation Base on traditional multi-effect evaporator, one more effect added, but higher pressure steam driven needed The most energy saving technology for evaporator, but 10-40kwh power consumption
Floor space Small large large small
Energy sources steam & power, need steam pipe network and boiler steam & power, need steam pipe network and boiler steam & power, need steam pipe network and boiler, need high pressure steam. electricity, don't need pipe network, all the close-loop circulation system
Automaticity Semi automatic Full automatic operation, continuous evaporation Full automatic operation, continuous evaporation Full automatic operation, continuous evaporation

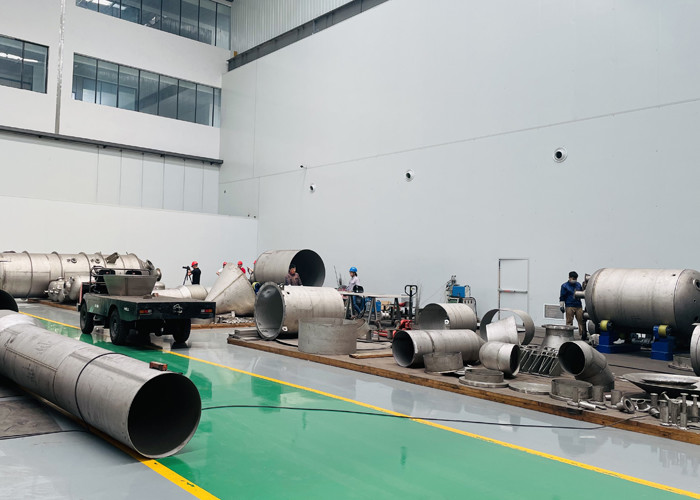

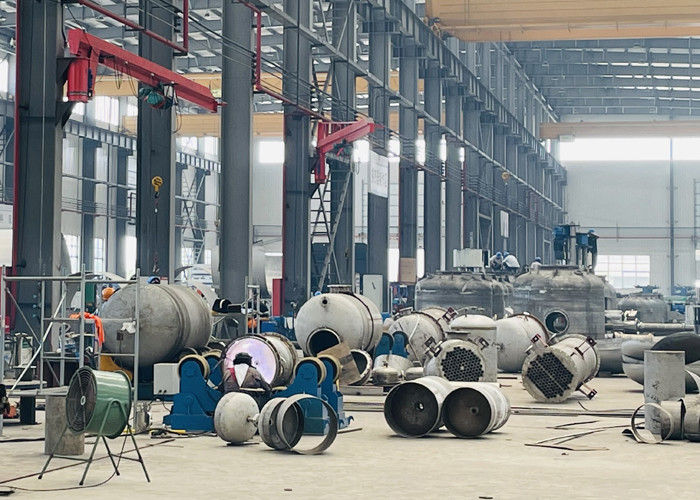

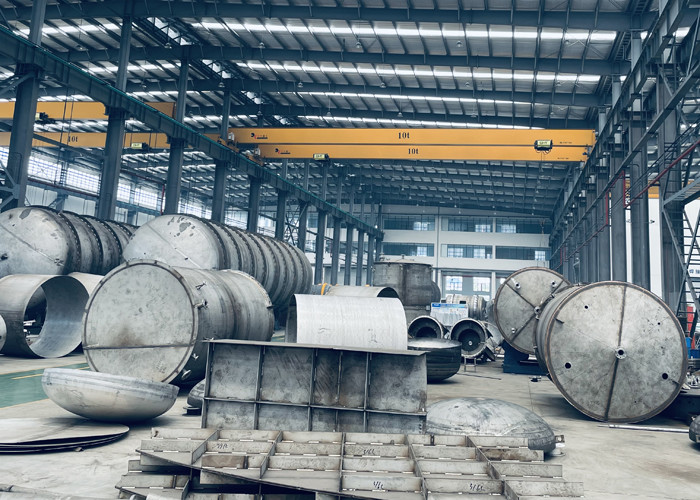

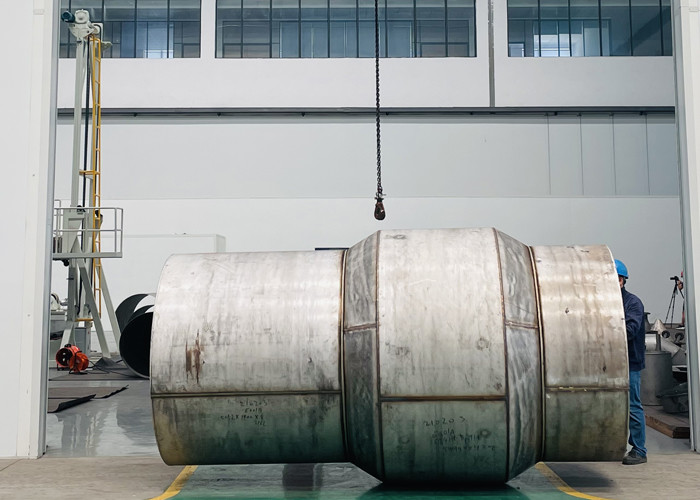

Advanced Production equipment


Distiller Ethanol Thermal Vapor Recompression Evaporator 0


Distiller Ethanol Thermal Vapor Recompression Evaporator 1

Distiller Ethanol Thermal Vapor Recompression Evaporator 2
