Full Automatic Industrial Scale Separator Centrifuge for Sugar

Full Automatic Industrial Scale Separator Centrifuge for Sugar
Features Gallery Product Description Request A Quote
Name: Automatic Centrifuge
Moc: SS304,316 As Option
Discharge: Spiral Scraper Discharge
Equipped: PLC System, Inverter
Certificate: ISO
Application: Starch, Calcium Carbonate, And Others
High Light:

CE Ice Bank Cooling System


Hanpu Ice Bank Cooling System


Cooling ice bank tank

Basic Infomation
Place of Origin: China
Brand Name: Hanpu
Certification: CE ISO
Model Number: 1.8*1.5M
Payment & Shipping Terms
Packaging Details: standard exported wooden case
Delivery Time: 45-60 working days
Supply Ability: 50sets per months
Product Description

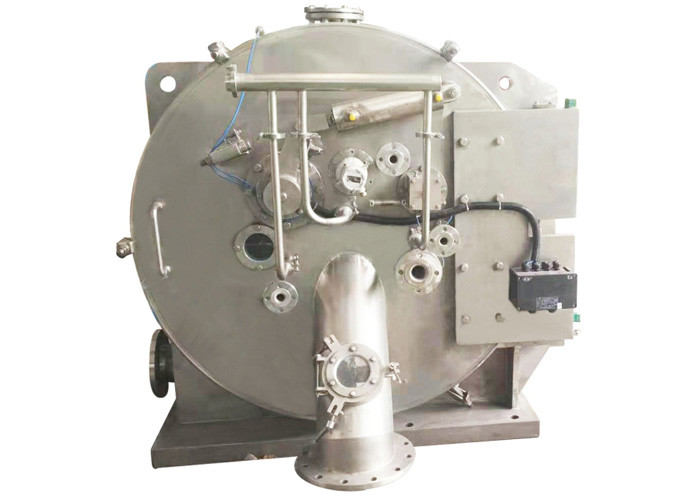

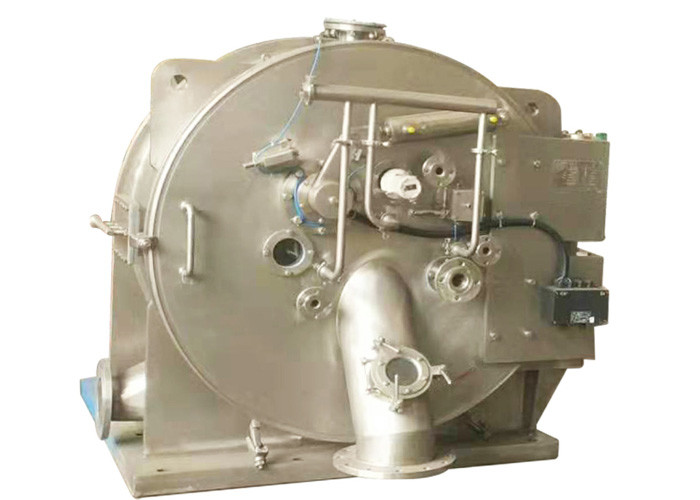

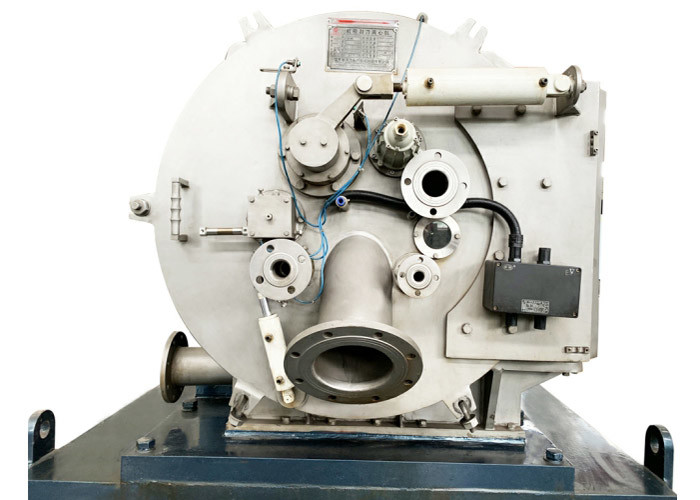

Full Automatic Industrial Scale Separator Centrifuge for Sugar


The machine is solid-liquid separation equipment which adopts continuous operation and intermittent discharging.
It is controlled by PLC.It regulates speed by frequency convertor, braking system adopts dynamic braking and regenerative braking.
Through such procedures as product level detection, speed, inspection, shaft temperature and vibration monitoring, the whole separation process is automatic circulative work(including feeding, dehydration, washing, discharging and etc.)
Also manual operation mode is available which can be changed over from full-automation mode by customer's will.



Item/Model PPCS-26 PPCS-140 PPCS-250



450 800 1000
Basket Height(mm) 300 450 500
Basket volume(L) 21 110 200
Loading Capacity(kg) 26 140 250
Max Speed(r/min) 2600 1500 1400
Maximum separating factor 1700 1007 1095
Motor power(Kw) 15 37 45
Dimensions (including shock absorb) 1800*1375*1902 2439*1900*2150 3050*2400*2192
Weight(kg) 2500 5800 6



Working principle

Feeding nitrogen or other inertgas into the host machine, after reaching the pre-determined content, when predetermined target is met and drum speed is suitable for feeding, feeding valve will be open automatically and product level detection begins to work.

When layer thickness is thick enough to reach the product detection slab, feeding valve closes to stop feeding. Under the effect of centrifugal force, most of the liquid in suspension is thrown out through filter cloth(or filter net) and the holes on drum wall then flows into mother liquid tank through horizontal liquid outlet(initial filter). With product dehydration going on, centrifuge will automatically slow down to washing speed according to technical requirement for washing.

Washing valve opens automatically With washing liquid rising to a certain height, washing valve closes and centrifuge speeds up automatically for further dehydration(secondary filter).

After a moment of operation,product will be fully dried. Then discharging will be in process.Then discharging valve opens and discharging cylinder begins to work when centrifuge automatically slows down to predetermined speed. With scraper rising spirally and automatically, solid product is scraped down into the hopper equipped with spiral discharger: With constant motion of spiral discharger, product is pushed out and discharged through valve.

Scraper rises closer to filter cloth with a certain distance till the bar on scraper device approaches proximity switch to stop
scraper rising then retreats quickly after a short stay(about 15s)then enters next cycle.




GKC automatic centrifuge adopts wall penetration installation.Its power area and processing area can be separated.

It can be used in pharmaceutical industry which has high requirements. The whole housing bucket can be open for inspection and cleaning.
