Customized 316l Pillow Plate Laser Welding Embossed Dimple

Customized 316l Pillow Plate Laser Welding Embossed Dimple

  • High Light

    floating head pillow plate

    ,

    316l pillow plate

    ,

    316l dimpled steel plate

  • Keywords
    Dimple Pillow Plate
  • Applicable Industries
    Food & Beverage Factory
  • Function
    Cooling
  • Material
    SS304, SS316L
  • Welding Technology
    Laser
  • Warranty
    1 Year
  • Size
    Customized
  • Brand
    Hanpu
  • Condition
    New
  • Place of Origin
    China
  • Brand Name
    Hanpu
  • Certification
    CE ISO
  • Model Number
    HT-500
  • Minimum Order Quantity
    1set
  • Price
    USD150-3000
  • Packaging Details
    standard exported wooden case
  • Delivery Time
    45-60 working days
  • Supply Ability
    20sets per months

Customized 316l Pillow Plate Laser Welding Embossed Dimple

stainless steel laser welding embossed dimple pillow plate



Technology



Two sheets of steel are overlapped and welded by laser.

Laser ring welding is used in the middle of the sheet and two laser welding seals are used around the edge.

Round to circle and welding.

Injecting high-pressure liquid between plates makes the plates expand and deform under pressure, forming a hollow space with uneven surface.



Specification

Product Name single embossed pillow plate used for the jacket storage tank
Welding Laser
Material Stainless Steel 316L
Color Nickel White
Grade Food grade
Brand Hanpu
Thickness 4mm base plate, 1mm embossed plate



Plate type

Double-sided drum pressure, generally used as immersion heat exchange element.

Single-sided drum pressure, generally as a flat sleeve or clamped heat exchanger.



Feature

1. Unique three-dimensional surface runner:

2. High heat transfer coefficient

3. It is not easy to scale.

4. Not easily blocked

5. Compact structure

6. High temperature and high pressure resistance

7. Fully welded structure

8. Floating Head Design

9. Easy to clean

10. Lower flow resistance

Applications

Plate falling evaporator

1. Working principle: Material: Outside the board, it flows down the outer surface in a film shape. Steam: inside the board cavity

2. Typical application: Pulping waste liquid NMMO Acidic wastewater As a reboiler

3. Features: Self-cleaning function, anti-fouling Very little mist entrainment Low flow resistance

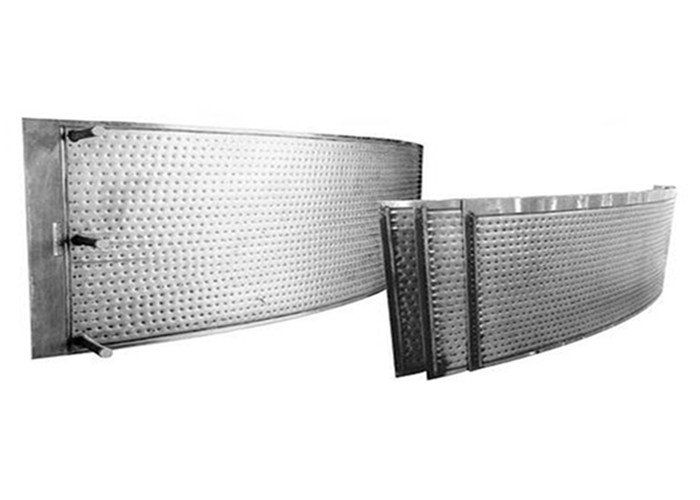

Customized 316l Pillow Plate Laser Welding Embossed Dimple 0

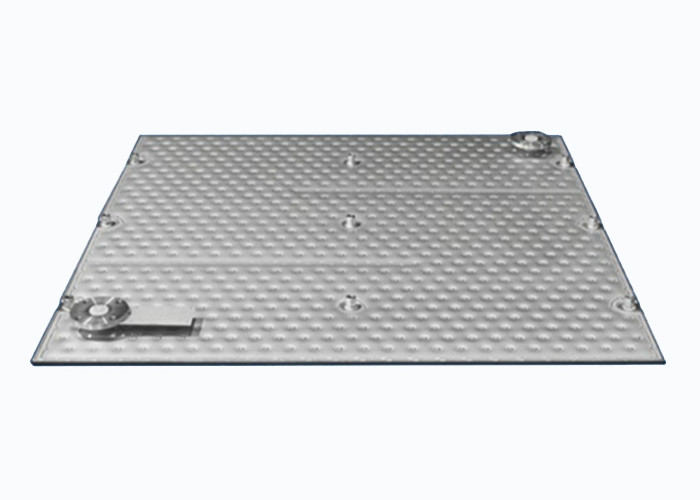

Customized 316l Pillow Plate Laser Welding Embossed Dimple 1

Customized 316l Pillow Plate Laser Welding Embossed Dimple 2



Company introduction

Jiangsu Hanpu Mechanical Technology Co., Ltd. is a project engineering company jointly established by Jiangsu Saideli Pharmaceutical Machinery Co., Ltd., Jiangsu Zhongyi Environmental Technology Co., Ltd., FERREO A/S in Denmark, Shanghai Jiaotong University and Nanjing Kingreat Machinery Co., Ltd. Hanpu main projects include but are not limited to: MVR evaporation system, powder washing salt and vacuum salt production project, oil tank sludge cleaning project, landfill leachate treatment project, plant/animal oil processing production line, urban wastewater treatment project, various wastewater treatment projects, and CBD oil extraction production line. Technical support and transfer of API product technology package. The main products are centrifuge series, multi-effect and MVR evaporation and crystallization equipment, laser welding heat transfer board, lithium battery material mixing equipment, pressure vessel and titanium, zirconium, nickel, and other non-standard special equipment.
