Energy-Saving Dimple plate stainless steel Heat exchange Pillow Plate
Plate tape
1. Pillow plate with a pillow at one side is made when a thin plate is laser welded on a thick plate and during the inflation of the pillow the thick plate does not deform. So a pillow plate where the -2- thin plate has been deformed with a pillow and the thick plate is still flat or in the rolled radius is
called a single embossed pillow plate
2. Pillow Plate with a double bulge on each side is created when two equally thick plates to be welded together, during the inflation of the pillow plate, both plates forming the same. A pillow plate with both sides equally inflated pillows is called “double embossed pillow plate”.
Brief itroduction

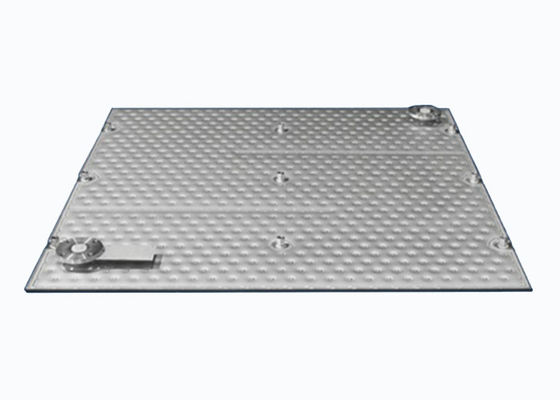

Platecoil® heat transfer plates (also called Pillow Plate, Dimple Plate, Thermo Plate, or Cavity Plate), consist of two stainless steel sheets laser welded together with a custom circle pattern.
Platecoil® heat transfer plate’s surface is a panel-type heat exchanger that can be made in endless range of shapes and sizes, its laser-welded and inflated channels can induce fluid turbulence to attain high heat transfer coefficients and performance. Platecoil® is ideally suited to different applications of high pressure and extreme temperature.
Product advantages
1. Cost-effective due to low welding costs
2. Thinner materials can be used, saving you on material costs
3. Pillow Plates' welding pattern guarantees high turbulence and therefore creates high overall heat transfer coefficients
4. Reduced deposition (algae, lime, etc.) due to this higher turbulence (less fouling)
5. Due to the low volume in the plate, little cooling / heating fluid needs to be circulated. As a result, less pump capacity is required
Technical overview
Product Name | Pillow plate heat exchanger |
Material | Stainless Steel |
Color | Nickel White |
Standard | DIN GB ISO JIS BA ANSI ASMI |
Grade | SUS201,SUS304,SUS316,DSS2205 |
Brade | Hanpu |
Length | Customized |
Certification
Our services
1. 12 months guarantee period from machine arriving date.
2. Our technicians could be dispatched for overseas service.
3. 7*24 hours technical consultation.
4. Your workers could get trained both in our factory and yours.
5. Routine tracing till the machine work properly will be done timely.
6. Your suggestions or any comments & reflection would be treated in priority.
7. Marketing team will visit you during our visit in your country if you require.
FAQ
1. How do you protect the quality?
As state owned enterprise with more than 100years history, we have strict operation policy,advanced processing machines to guarantee the precision, workers with operation license, related components are from world famous brand, Series of test and inspection are done in the whole producing stage.
Quality and experience, we are top centrifuge supplier in China,our designs and structures are analogous to world leader brands.
My price is not the lowest in China, but we promise, for the same quality and collocation, my price is the most favorable, for the same price, my quality is definitely superior to other brands.
Yes, we will upon required.
Yes, we do, as long as you provide us your drawing and detailed requirements.
We have some partnership in several countries as Indonesia, Brazil, USA.
If you come from aboard, air to shanghai or Nanjing airport, or if you arrive shanghai, you can take bullet train. - If you come from domestic city, air or train directly to Nanjing Nan or WUXI east, we will pick you up both from airport or railway station.
Yes, we will provide you the name list, and arrange the visit after their approval.
Tips:Laser welded pillow plates,pillow plate heat exchanger, Cooling and/or heating of silos by means of jacket plates
