ANSI Laser Welded Stainless Steel Pillow Plates Heat Transfer Panel Type

ANSI Laser Welded Stainless Steel Pillow Plates Heat Transfer Panel Type

  • High Light

    laser welded stainless steel pillow plates

    ,

    ansi stainless steel pillow plates

    ,

    ansi heat transfer plate

  • Product Name
    Stainless Steel Pillow Plate
  • Type
    Plate
  • Brand
    Hanpu
  • Function
    Heat Transfer
  • Principle
    Large Heat Exchange Area
  • Feature
    High Heat Transfer Coefficient
  • Plate Material
    Stainless Steel Or Customized
  • Tolerance
    ±3%
  • Place of Origin
    China
  • Brand Name
    Hanpu
  • Certification
    ISO
  • Model Number
    Customized
  • Minimum Order Quantity
    100m2(except for the sample)
  • Price
    USD100/m2-USD300/m2
  • Packaging Details
    Standard export package, polywood, fumigated wood, filmed
  • Delivery Time
    30 days after down payment
  • Payment Terms
    TT,.LC, Western Union
  • Supply Ability
    30000m2 per month

ANSI Laser Welded Stainless Steel Pillow Plates Heat Transfer Panel Type

Laser welded heat transfer panel type stainless steel pillow plate

Brief Introduction

Product Name Pillow plate heat exchanger
Material Stainless Steel
Color Nickel White
Standard DIN GB ISO JIS BA ANSI ASMI
Grade SUS201,SUS304,SUS316,DSS2205
Brade Hanpu
Length Customized


Two sheets of steel are overlapped and welded by laser. Laser ring welding is used in the middle of the sheet and two laser welding seals are used around the edge.Injecting high-pressure liquid between plates makes the plates expand and deform under pressure, forming a hollow plate heat exchanger with uneven surface.



Product advantages

1. High cooling and heating efficiency
2. Flexible and compact design
3. Fully corrosion resistant
4. Safe heat transfer medium
5. Best in class flow efficiency
6. Closed loop external heat exchanger for free flowing liquids, both clean or low –contaminated
7.For heating or cooling of fluids or condensation of vapors


Features

1. Available in most materials, like stainless steel 304, 316L, 2205 and titanium
2. High operating pressures
3. High operating temperatures
4. No gaskets required
5. Corrosion resistant

6. Easily cleanable, attractive finishes available
7. Low pressure drop design
8. Pharmaceutical and food-grade designs available
9. More active heat transfer surface available









Application
The Pillow Plate plating can be supplied either calendered and ready for use, or flat and not inflated if transport costs need to be minimised.
Dimensions, finishing, couplings and other technical and functional aspects are decided face to face with the client.
Pillow Plate platings are used in milk refrigeration as well as drinks and food in general. Pillow plate is particularly suited to the heating and cooling of tanks.

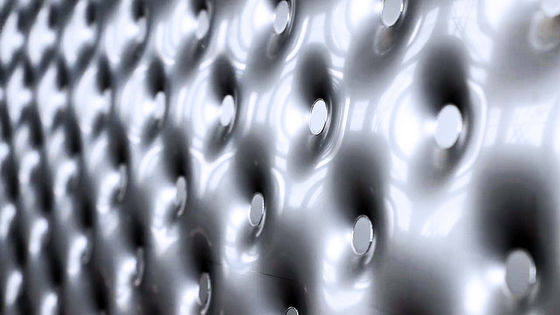

ANSI Laser Welded Stainless Steel Pillow Plates Heat Transfer Panel Type 0

ANSI Laser Welded Stainless Steel Pillow Plates Heat Transfer Panel Type 1

ANSI Laser Welded Stainless Steel Pillow Plates Heat Transfer Panel Type 2



About us

Our company's production base is located in the Huangqiao Industrial Zone of Taixing, covering an area of 300 acres. The companies
involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc.

The company has various kinds of general (special) machinery devices including 480 sets and are the most developed working devices in the world such as: Toshiba CNC boring and milling machine imported from Japan, German Schiess CNC turning processing center, etc.



Our services

1. 12 months guarantee period from machine arriving date.

2. Our technicians could be dispatched for overseas service.

3. 7*24 hours technical consultation.

4. Your workers could get trained both in our factory and yours.

5. Routine tracing till the machine work properly will be done timely.

6. Your suggestions or any comments & reflection would be treated in priority.

7. Marketing team will visit you during our visit in your country if you require.



FAQ

1. How do you protect the quality?

As state owned enterprise with more than 100years history, we have strict operation policy,advanced processing machines to guarantee the precision, workers with operation license, related components are from world famous brand, Series of test and inspection are done in the whole producing stage.

2. What is your advantage compared with your competitors?

Quality and experience, we are top centrifuge supplier in China,our designs and structures are analogous to world leader brands.

3. Is your price competitive?

My price is not the lowest in China, but we promise, for the same quality and collocation, my price is the most favorable, for the same price, my quality is definitely superior to other brands.

4. Will you dispatch technicians for installation and commissioning?

Yes, we will upon required.

5. Do you have OEM service? Do you supply the parts?

Yes, we do, as long as you provide us your drawing and detailed requirements.

6. Do you have agents or service centre abroad?

We have some partnership in several countries as Indonesia, Brazil, USA.

7. How can we visit your factory?

If you come from aboard, air to shanghai or Nanjing airport, or if you arrive shanghai, you can take bullet train. - If you come from domestic city, air or train directly to Nanjing Nan or WUXI east, we will pick you up both from airport or railway station.

8. Can we visit your end user or contact them?

Yes, we will provide you the name list, and arrange the visit after their approval.



Tips:Cooling of condenser plates,pillow plate heat exchanger, Cooling of milk tanks
