Sodium Sulfate Na2so4 Mvr Evaporator 3 Effect Crystallization System

Sodium Sulfate Na2so4 Mvr Evaporator 3 Effect Crystallization System

  • High Light

    sodium sulfate mvr evaporator

    ,

    3 effect crystallization mvr evaporator

    ,

    na2so4 mechanical vapor recompression evaporator

  • Material
    Titanium
  • Evaporation Capacity
    10T/HR
  • Evaporator
    3 Effect Evaporation
  • Evaporator Type

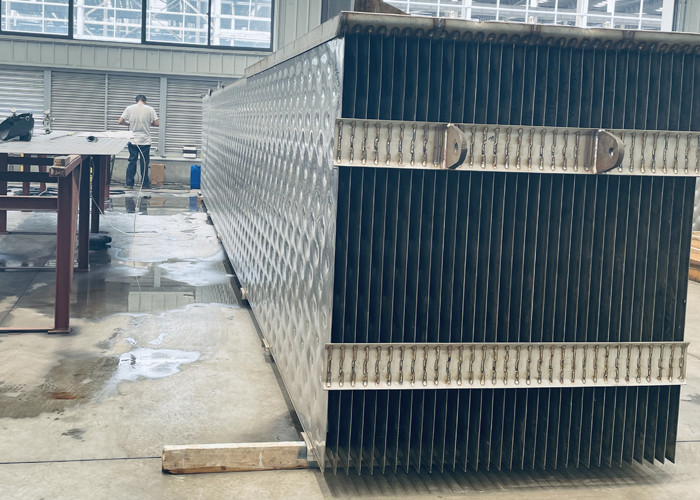

    Stainless Steel Pillow Plate
  • Location
    China
  • Warranty
    12 Months
  • Place of Origin
    China
  • Brand Name
    Hanpu
  • Certification
    CE ISO
  • Model Number
    10T/H
  • Minimum Order Quantity
    1set
  • Price
    USD180,000-USD650,000
  • Packaging Details
    Pallet or Wooden case
  • Delivery Time
    120days
  • Supply Ability
    1sets per 3 months

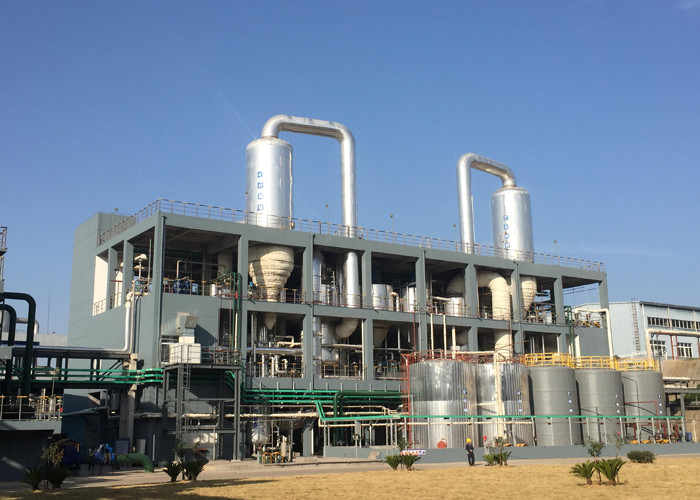

Sodium Sulfate Na2so4 Mvr Evaporator 3 Effect Crystallization System



Sodium sulfate(Na2SO4) 3-effect evaporation crystallization system

Introduction

Sodium sulfate evaporation system is deisgned for sodium sulfate solution, which is used to treat wastewater containing sodium sulfate and evaporate and crystallize sodium sulfate solution.



Process

The sodium sulfate solution enters the condensate preheater by the raw material pump, the preheated solution enters the first-effect evaporator for evaporation, the concentrated solution enters the second-effect evaporator for concentration by the first-effect circulating pump, the concentrated solution enters the third-effect evaporator for concentration by the second-effect discharge pump.



The solution thickened by the thickener enters the centrifuge for solid-liquid separation, the solid particles are processed in the next section, and the centrifugal mother liquor is buffered by the mother liquor tank and returned to the triple-effect evaporator by the mother liquor pump for futher concentration.



Steam and condensate system of sodium sulfate triple-effect evaporation system

Saurated steam from the steam main pipe enters the shell side of the first-effect heating chamber to heat the materials, and the steam condensate water preheats the raw materials through the condensate water preheater and then returns to the condensate water system.



The secondary steam generated by the first-effect evaporator enters the second-effect heating chamber to heat the material, and the condensed water enters the third-effect evaporator to heat the material.



The secondary steam  generated by the second-effect evaporator enters the third-effect heating chamber to heat materials, and the condensed water enters the condensate tank.



The secondary steam generated by the triple-effect evaporator is condensed by the indirect condenser into the condensate tank, an the condensate water is discharged into the next system by the condensate pump, Uncondensed non-condensable gas is pumped out by vacuum pump and discharged in to the atmosphere.




Sodium Sulfate Na2so4 Mvr Evaporator 3 Effect Crystallization System 0

Sodium Sulfate Na2so4 Mvr Evaporator 3 Effect Crystallization System 1



Part of Reference List

No. User Application Evaporation Capacity Qty
1 Xinhua PHARMACEUTICAL Shouguang Co., Ltd Ammouium Sulfate MVR Concentration 17t/hr 1
2 Jiangxi Tonghe Pharmaceutical Co., Ltd Sodium Chloride MVR Evaporation Crystallization 5t/hr 1
3 Jiangsu Changqing agrochemical Co., Ltd Sodium Chloride MVR Evaporation Crystallization 10t/hr 1
4 Shijiazhuang Haili Fine Chemical Co., Ltd Sodium Chloride MVR Evaporation Crystallization 2t/hr 1
5 Suzhou Keda environmental protection engineering Co., Ltd Sodium Chloride MVR Evaporation Crystallization 1t/hr 1
6 Shijiazhuang hejia health care products Co., Ltd Sodium Chloride MVR Evaporation Crystallization 10t/hr 1
7 Hubei taisheng chemical Co., Ltd Disodium hydrogen Phosphate MVR Evaporation Crystallization 7t/hr 1
8 He'nan Xintiandi Pharmaceutical Co., Ltd Ammonium chloride MVR Evaporation crystallization 5t/hr 1
9 Taixing Jinyun dyestuff Co., Ltd Dye MVR Concentration 3t/hr 1
10 Changhuasheng(Taixing)Lithium Battery Material Co., Ltd Sodium Chloride MVR Evaporation Crystallization 5t/hr 1
11 Jiujiang fuda industry Co., Ltd Ammonium Sulfate Evaporation Crystallization 28t/hr 1
12 Zhejiang Jinke Peroxide Co., Ltd Saline-alkali Evaporation crystallization 10t/hr 1
13 LLC TD HALMEK Lithium hydroxide single effect crystallization system 4t/hr 1
14 Zhejiang xinhecheng special material Co., Ltd Sodium chloride + sodium acetate evaporation crystallization 6t/hr 2
15 Jiangxi Brother Medicine Co., Ltd Nicotinic acid three-effect evaporation concentration 9t/hr 1
16 Zhejiang Gramineae Technology Co., Ltd Sodium chloride evaporation crystallization 3t/hr 1






About us

Our company's production base is located in the Huangqiao Industrial Zone of Taixing, covering an area of 300 acres. The companies
involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc. The website is https://www.hanputhermal.com



The company has various kinds of general (special) machinery devices including 480 sets and are the most developed working devices in the world such as: Toshiba CNC boring and milling machine imported from Japan, German Schiess CNC turning processing center, etc.
