Double Inflated Thermo Plate Customized 1.2mm Thickness

1set
MOQ
USD180,000-USD650,000
Price
Double Inflated Thermo Plate Customized 1.2mm Thickness
Features Gallery Product Description Request A Quote
Features
Specifications
Material: SS304
Size: 11.5*1m
Thickness: 1.2mm
Embossed: Both Embossed
Function: Heat Transmission
Usage: Heat Exchanger
Customized: Available
MOQ: 1 Pc
High Light:

double inflated thermo plate

,

1.2mm thickness thermo plate

,

stainless steel pillow plates 1.2mm thickness

Basic Infomation
Place of Origin: China
Brand Name: Hanpu
Certification: CE ISO
Model Number: 2*2.5m
Payment & Shipping Terms
Packaging Details: Pallet or Wooden case
Delivery Time: 5-8working days
Supply Ability: 200sets per months
Product Description

Customized 1.2mm Thickness Double Inflated Pillow Plate plates for Heat Exchanger

Introduction

Pillow Plates, also called dimpled plates or thermo plates, consists of two stainless steel sheets that are laser welded together by welding a custom circle weld pattern. Then the plate is inflated by using water pressure, which creates a specific single or double embossed profile – the pillow plate, through which the cooling or heating is conducted. The thickness and the spot pattern are determined by the pressure requirements.



Function

1. Pillow plates as air-/water/ heat exchanger

Additionally to the temperation of liquids pillow plates are also used as air/liquid heat exchangers. In case of polluted or wasted air and if there are high demands for cleaning, more and more pillow plates are used as air/water heatexchanger. The large exchange surface and the god possibilities for cleaning are important features for this type of heat exchanger.



2. Intensive temperature exchange

The large surface of the pillow plates is creating a good and intensive exchange of temperature between the fluid inside the pillow plates and the fluid outside the plates, another advantage is the good possibility for cleaning. Pillow plates are also used in the heat recovery.



Specification

Product Name Pillow plate heat exchanger
Material Stainless Steel
Color Nickel White
Standard DIN GB ISO JIS BA ANSI ASMI
Grade SUS201,SUS304,SUS316,DSS2205
Overview double pillow embossed plate material ratios

Pillow plate 0.8mm+0.8mm pillow plate 1.0mm+1.0mm

Pillow plate1.2mm+1.2mm

Pillow plate1.5mm+1.5mm

Pillow plate2.0mm+2.0mm

Overview single pillow embossed plate material ratios Pillow plate 0.8 mm + 2.0 mm base plate
pillow plate 1.0 mm + 2.5 mm base plate
pillow plate 1.2 mm + 4.0 tot 15 mm base plate
pillow plate 1.5 mm + 4.0 tot 15 mm base plate
pillow plate 2.0 mm + 5.0 tot 15 mm base plate



Drawing

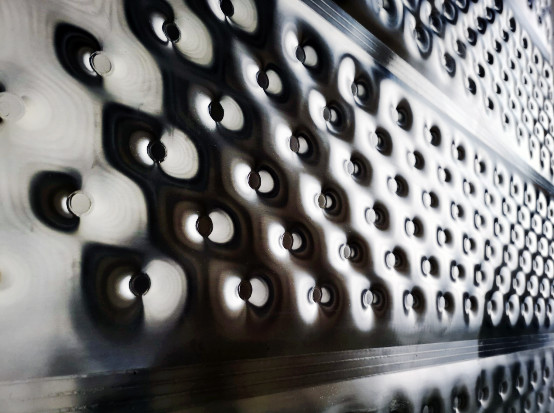

Double Inflated Thermo Plate Customized 1.2mm Thickness 0

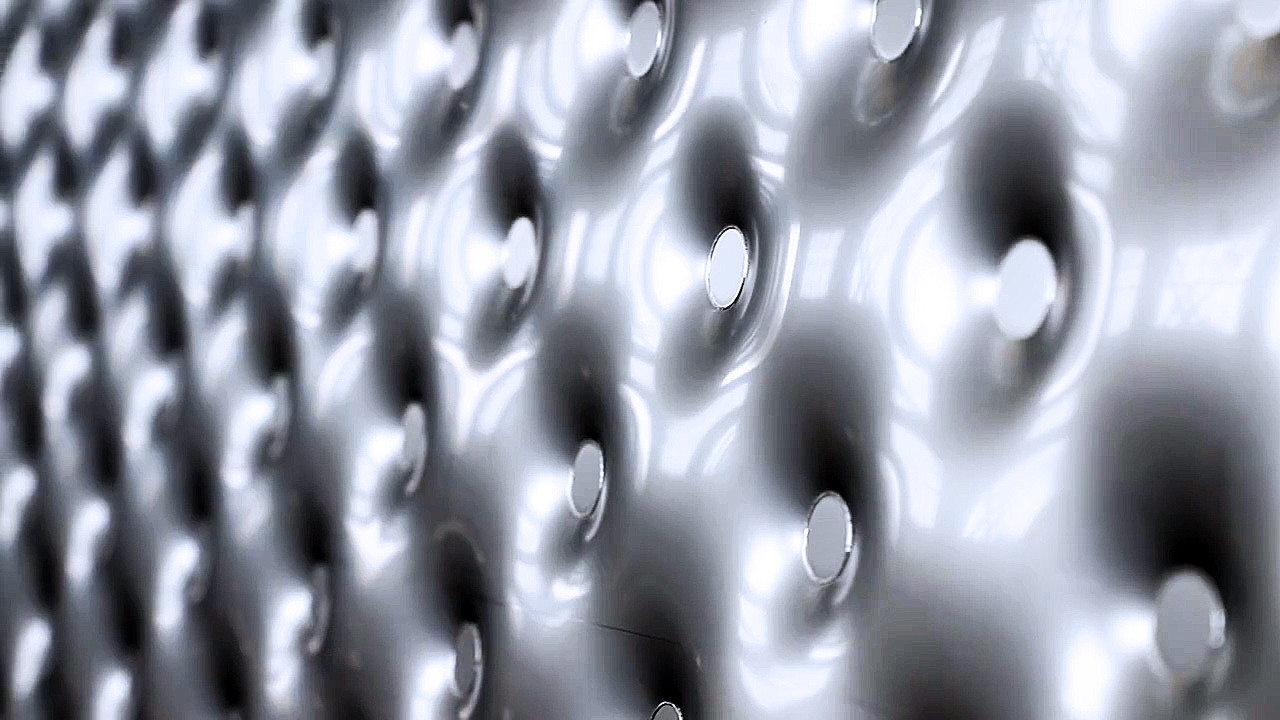

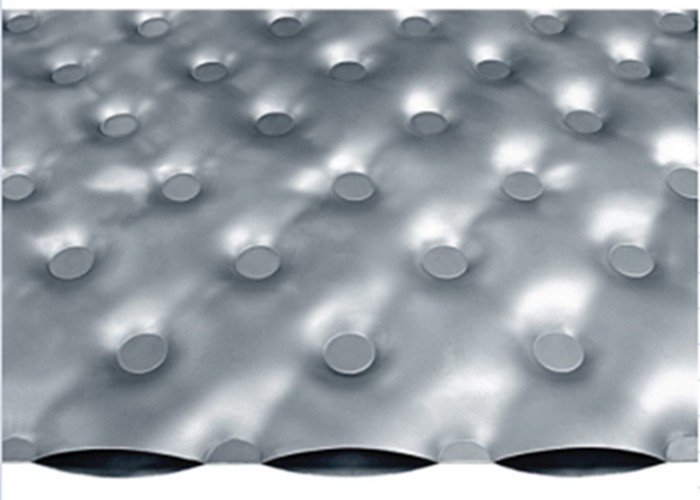

Double Inflated Thermo Plate Customized 1.2mm Thickness 1Double Inflated Thermo Plate Customized 1.2mm Thickness 2
