Stainless Steel Embossed Pillow Plate Laser Welded 1mm Thickness GB

Stainless Steel Embossed Pillow Plate Laser Welded 1mm Thickness GB

  • High Light

    Stainless Steel Embossed Pillow Plate

    ,

    1mm Thickness Embossed Pillow Plate

    ,

    GB Heat Exchanger Pillow Plate

  • Material
    SS316L
  • Size
    2*1.5m
  • Thickness
    1mm
  • Application
    Heat Exchanger
  • Warranty
    12months After Equipment Received
  • Process
    Laser Welded
  • Place of Origin
    China
  • Brand Name
    Hanpu
  • Certification
    CE ISO
  • Model Number
    2*1.5m
  • Minimum Order Quantity
    1pc
  • Price
    USD150-30000
  • Packaging Details
    Carton
  • Delivery Time
    120days
  • Supply Ability
    10 sets/month

Stainless Steel Embossed Pillow Plate Laser Welded 1mm Thickness GB

Customized Stainless Steel Laser Welded Pillow Plate for Heat Exchanger

What is pillow plate?

Pillow Plate is in 2types single and double embossed, welded with fiber laser, it is widely used in heating/cooling/evaporation/condensation field which are necessary adapted in heat excahngers, tanks as milk, beer, wine storage, fermentation, falling film chillers, jacket vessels, evaporator plates, building roof, ice room etc.



Pillow plate can have working pressures from -0.5 bar to 250 bar in different applications, it can be made in SS304,SS316L, TA2 and Hastelloy.



What is processing?

Rolled Plate → Spread → Laser welding → Embossed → Finished



What is technical overview?

Product Name Pillow plate
Material Stainless Steel
Color Nickle White
Standard DIN GB ISO JIS BA ANSI ASMI
Grade SUS201,SUS304,SUS316,TA2,Hastelloy
Brand Hanpu
Length Max.12000mm
Width Max.2000mm
Thickness of two sheets
Double Embossed Pillow Plate Single Embossed Pillow Plate
Pillow Plate 1.0mm +1.0mm Pillow Plate 1.0mm+2.5mm
Pillow Plate 1.2mm+1.2mm Pillow Plate 1.2mm+4.0-10mm
Pillow Plate 1.5mm+1.5mm Pillow Plate 1.5mm+4.0-10mm



What is advantage?



- Maintenance-free in dust loaded air
- No expensive interrupts as cleaning takes place during production

- Investment with short pay-back period

- Low maintenance cost

- Compact design and simple installation

- Good thermal operating efficiency due to high heat transfer coefficients

- Heat recovery with constant condensation

​    ​

What is picture?

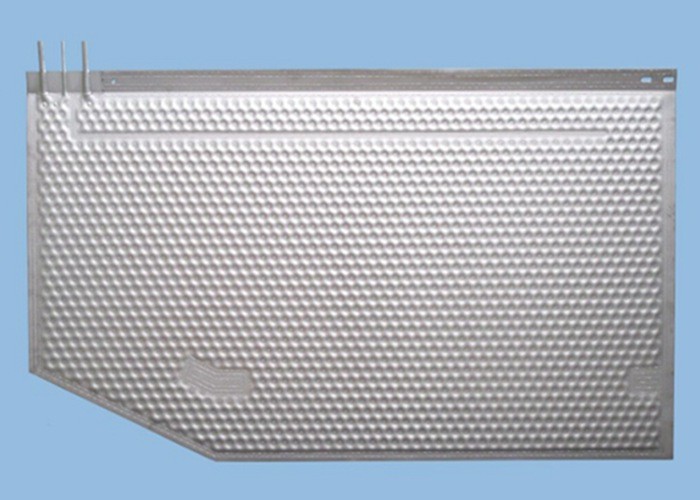

Stainless Steel Embossed Pillow Plate Laser Welded 1mm Thickness GB 0

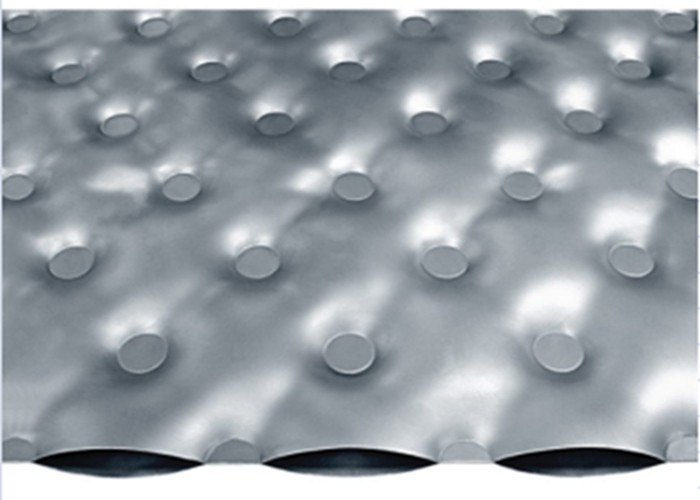

Stainless Steel Embossed Pillow Plate Laser Welded 1mm Thickness GB 1



Who we are?

We are a top Pillow Plate heat exchanger manufacturer from China, our company's production base is located in the Huangqiao Industrial Zone of Taixing, covering an area of 300 acres. The companies involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc. The website is https://www.hanputhermal.com



The company has various kinds of general (special) machinery devices including 480 sets and are the most developed working devices in the world such as: Toshiba CNC boring and milling machine imported from Japan, German Schiess CNC turning processing center, etc.



We welcome you to visit!
