Immersion 316 Stainless Steel Pillow Plates For Chiller and Ice Bank

100m2(except for the sample)
MOQ
USD100/m2-USD300/m2
Price
Immersion 316 Stainless Steel Pillow Plates For Chiller and Ice Bank
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Immersion Pillow Plate
Material: SS316
Brand: Hanpu
Welding Technology: Laser Welded
Length: 1.2m
Thickness: 1-3mm
Application: Condensor, Evaporator, Heat Exchanger, Ice Bank
Type: Pillow Plates
High Light:

316 stainless steel pillow plates

,

immersion stainless steel pillow plates

,

chiller heat exchanger plates

Basic Infomation
Place of Origin: China
Brand Name: Hanpu
Certification: ISO
Model Number: 1*1.2m
Payment & Shipping Terms
Packaging Details: Standard export package, polywood, fumigated wood, filmed
Delivery Time: 30 days after down payment
Payment Terms: TT,.LC, Western Union
Supply Ability: 30000m2 per month
Product Description

1*1.2m immersion pillow plate stainless steel 316 for chiller and ice bank

Introduction

Pillow Plates are heat exchanger plates that can be used in many ways for the industrial cooling or heating of your products, which consists of two stainless steel sheets that are laser welded together by laser welding machine.



Design

Single inflated pillow plates consist of one thick plate and one thin plate, the thin plate will be inflated under high temperature water/air. it can be used for tank jacket.



Double inflated pillow plates consist of two plates with the same thickness, the product will deform on both sides after inflation, the double inflated pillopw plates can be used for ice bank, falling film chiller..etc



Processing

Rolled Plate → Spread → Laser welding → Embossed → Finished



Technical overview

Product Name Pillow plate
Material Stainless Steel
Color Nickle White
Standard DIN GB ISO JIS BA ANSI ASMI
Grade SUS201,SUS304,SUS316,TA2,Hastelloy
Brand Hanpu
Length Max.12000mm
Width Max.2000mm
Thickness of two sheets
Double Embossed Pillow Plate Single Embossed Pillow Plate
Pillow Plate 1.0mm +1.0mm Pillow Plate 1.0mm+2.5mm
Pillow Plate 1.2mm+1.2mm Pillow Plate 1.2mm+4.0-10mm
Pillow Plate 1.5mm+1.5mm Pillow Plate 1.5mm+4.0-10mm



Product advantages

- Maintenance-free in dust loaded air
- No expensive interrupts as cleaning takes place during production

- Investment with short pay-back period

- Low maintenance cost

- Compact design and simple installation

- Good thermal operating efficiency due to high heat transfer coefficients

- Heat recovery with constant condensation



Features

1. Available in most materials, like stainless steel 304, 316L,2205 and titanium
2. High operating pressures
3. High operating temperatures

4. Thermally efficient types of heat transfer
5. Immersion heating and cooling.
6. Clamp-on heating, cooling, and temperature maintenance
7. Integral jacketing for heating and cooling
8. Custom heat exchanger design

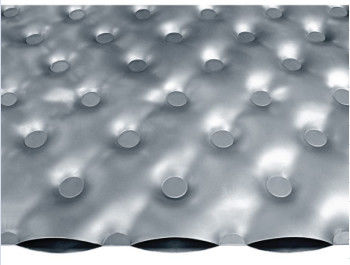

Immersion 316 Stainless Steel Pillow Plates For Chiller and Ice Bank 0

Immersion 316 Stainless Steel Pillow Plates For Chiller and Ice Bank 1

About us

Our company's production base is located in the Huangqiao Industrial Zone of Taixing, covering an area of 300 acres. The companies
involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc. The website is https://www.hanputhermal.com



Immersion 316 Stainless Steel Pillow Plates For Chiller and Ice Bank 2
