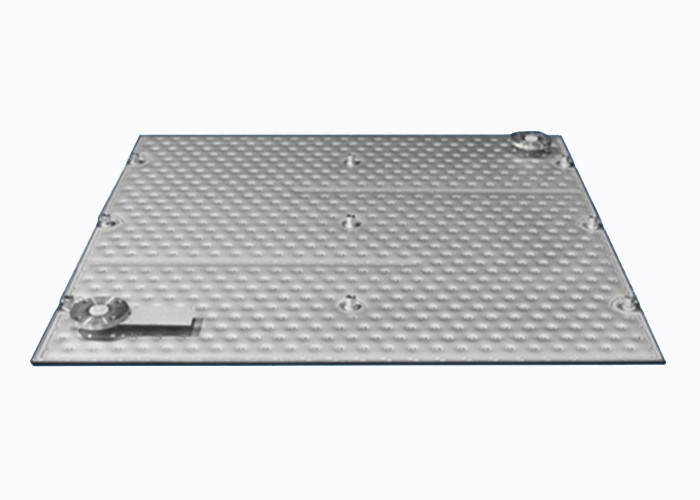

Stainless Steel 316L Pillow Plate Ice Bank For Heat Exchanger
Introduction
Pillow Plates are heat exchanger plates that can be used in many ways for the industrial cooling or heating of your products, which consists of two stainless steel sheets that are laser welded together by laser welding machine.
Design

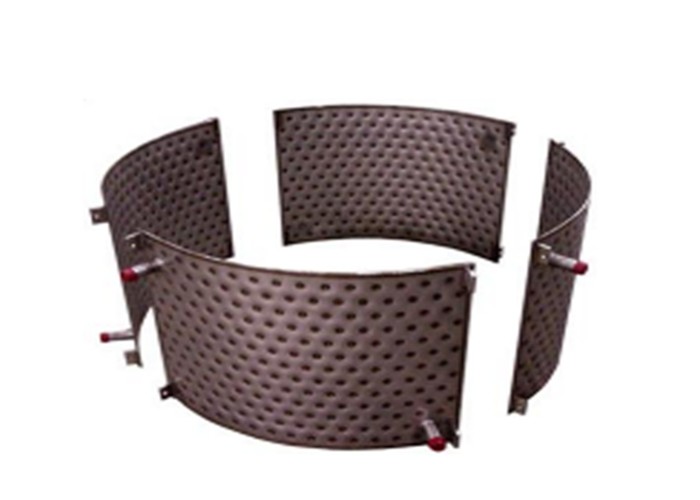

Single inflated pillow plates consist of one thick plate and one thin plate, the thin plate will be inflated under high temperature water/air. it can be used for tank jacket.

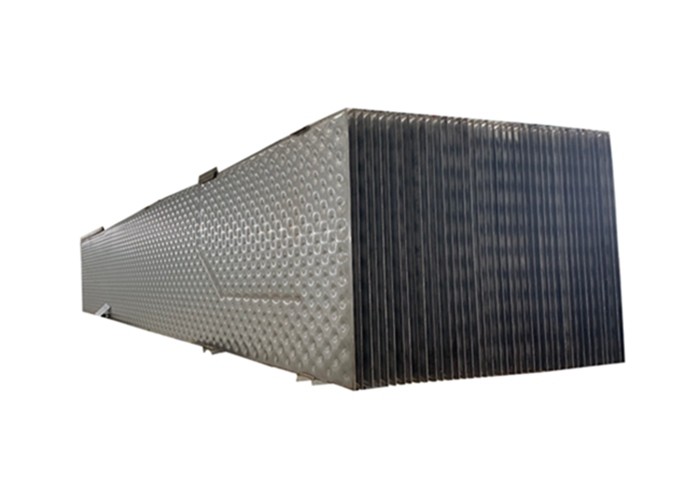

Double inflated pillow plates consist of two plates with the same thickness, the product will deform on both sides after inflation, the double inflated pillopw plates can be used for ice bank, falling film chiller..etc
Processing
Rolled Plate → Spread → Laser welding → Embossed → Finished
Features
1. Low flow resistance.
2. The design of wide flow channel without contact,not easy to block.
3. The self-cleaning effect brought by the best turbulent design,slow down fouling,and high heat transfer coefficient.
4. The end cover is detachable for easy cleaning.
5. No gasket design,low maintenance cost.
Specifications
Product Name | Pillow plate heat exchanger |
Material | Stainless Steel |
Color | Nickel White |
Standard | DIN GB ISO JIS BA ANSI ASMI |
Grade | SUS201,SUS304,SUS316,DSS2205 |
Overview double pillow embossed plate material ratios |
Pillow plate 0.8mm+0.8mm pillow plate 1.0mm+1.0mm Pillow plate1.2mm+1.2mm Pillow plate1.5mm+1.5mm Pillow plate2.0mm+2.0mm |
Overview single pillow embossed plate material ratios | Pillow plate 0.8 mm + 2.0 mm base plate pillow plate 1.0 mm + 2.5 mm base plate pillow plate 1.2 mm + 4.0 tot 15 mm base plate pillow plate 1.5 mm + 4.0 tot 15 mm base plate pillow plate 2.0 mm + 5.0 tot 15 mm base plate |
Application

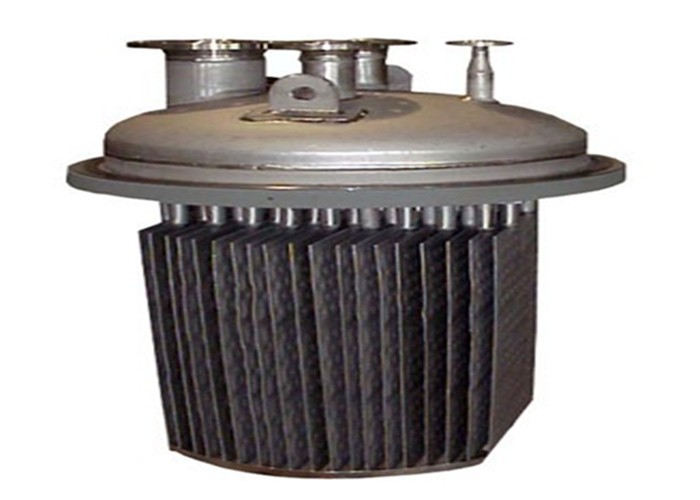

The machine can produce pillow plates, which can be used for a wide range of products, such as; heat exchangers, filter shells, falling films, square containers, cooling containers, constant walls, climate chambers, ice storage, pipes, heating or cooling vibration feeds Tanks, cylindrical tanks, and tanks of other shapes and designs, such as rectangular or oval. They can also be used in various industries, such as the food and beverage industry and other food manufacturing and processing industries. The surface can be brushed, polished or sandblasted. The possibilities are endless, because you can produce every welding pattern shape and any desired board shape can be welded or engraved. The pillow board can be a single or double embossed board.
Processing equipment
About us
Jiangsu Hanpu Mechanical Technology Co., Ltd. is a project engineering company jointly established by Jiangsu Saideli Pharmaceutical Machinery Co., Ltd., Jiangsu Zhongyi Environmental Technology Co., Ltd., FERREO A/S in Denmark, Shanghai Jiaotong University and Nanjing Kingreat Machinery Co., Ltd. Hanpu main projects include but are not limited to: MVR evaporation system, powder washing salt and vacuum salt production project, oil tank sludge cleaning project, landfill leachate treatment project, plant/animal oil processing production line, urban wastewater treatment project, various wastewater treatment projects, Technical support and transfer of API product technology package.
The main products are centrifuge series, multi-effect and MVR evaporation and crystallization equipment, laser welding heat transfer board, lithium battery material mixing equipment, pressure vessel and titanium, zirconium, nickel, and other non-standard special equipment
