Stainless Steel 316L Pillow Plate Single Inflated For Tank Ice Bank

100m2(except for the sample)
MOQ
USD100/m2-USD300/m2
Price
Stainless Steel 316L Pillow Plate Single Inflated For Tank Ice Bank
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Pillow Plate For Tank, Ice Bank.
Material: SS316L
Brand: Hanpu
Welding Technology: Laser Welding
Length: 1m
Thickness: 1.2mm
Application: Condensor, Evaporator, Heat Exchanger, Ice Bank
Type: Single Inflated Pillow Plates
High Light:

Single Inflated Pillow Plate

,

316L Stainless Steel Pillow Plate

,

Pillow Plate For Tank

Basic Infomation
Place of Origin: China
Brand Name: Hanpu
Certification: ISO
Model Number: 1*1.2m
Payment & Shipping Terms
Packaging Details: Standard export package, polywood, fumigated wood, filmed
Delivery Time: 30 days after down payment
Payment Terms: TT,.LC, Western Union
Supply Ability: 30000m2 per month
Product Description

Customized Stainless Steel 316L Single Inflated Pillow Plate For Tank, Ice Bank.

Introduction

1. Double embossed pillow plate:

Pillow plate with a double bulge on each side is created when two equally thick plates to be welded together, during the inflation of the pillow plate, both plates forming the same. A pillow plate with both sides equally inflated pillows is called "double embossed pillow plate"



2. Single embossed pillow plate:

Pillow plate with a pillow at one side is made when a thin plate is laser welded on a thick plate and during the inflation of the pillow the thick plate does not deform, so a pillow plate where the thin plate has been deformed with a pillow and the thick plate is still flat or in the rolled radius is called a" single embossed pillow plate"



Processing

Rolled Plate → Spread → Laser welding → Embossed → Finished



Technical overview

Product Name Pillow plate
Material Stainless Steel
Color Nickle White
Standard DIN GB ISO JIS BA ANSI ASMI
Grade SUS201,SUS304,SUS316,TA2,Hastelloy
Brand Hanpu
Length Max.12000mm
Width Max.2000mm
Thickness of two sheets
Double Embossed Pillow Plate Single Embossed Pillow Plate
Pillow Plate 1.0mm +1.0mm Pillow Plate 1.0mm+2.5mm
Pillow Plate 1.2mm+1.2mm Pillow Plate 1.2mm+4.0-10mm
Pillow Plate 1.5mm+1.5mm Pillow Plate 1.5mm+4.0-10mm



Product advantages

- Maintenance-free in dust loaded air
- No expensive interrupts as cleaning takes place during production

- Investment with short pay-back period

- Low maintenance cost

- Compact design and simple installation

- Good thermal operating efficiency due to high heat transfer coefficients

- Heat recovery with constant condensation



Features

1. Available in most materials, like stainless steel 304, 316L,2205 and titanium
2. High operating pressures
3. High operating temperatures

4. Thermally efficient types of heat transfer
5. Immersion heating and cooling.
6. Clamp-on heating, cooling, and temperature maintenance
7. Integral jacketing for heating and cooling
8. Custom heat exchanger design

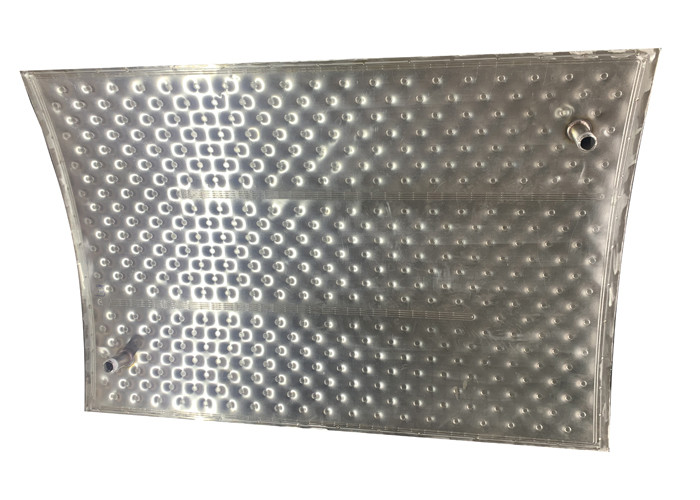

Stainless Steel 316L Pillow Plate Single Inflated For Tank Ice Bank 0

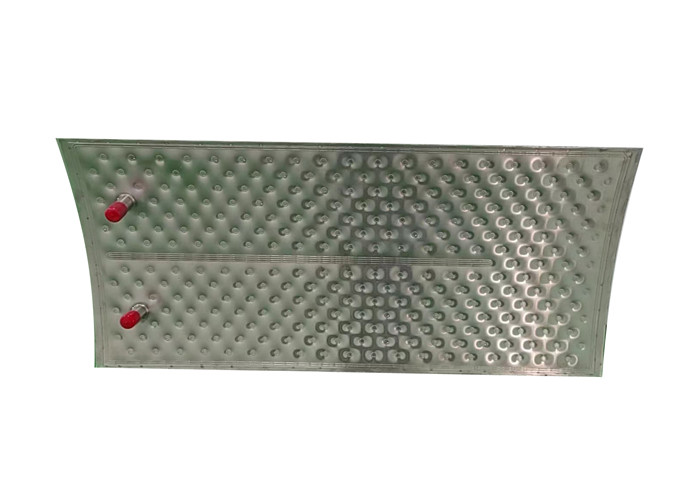

Stainless Steel 316L Pillow Plate Single Inflated For Tank Ice Bank 1



About us

Our company's production base is located in the Huangqiao Industrial Zone of Taixing, covering an area of 300 acres. The companies
involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc. The website is https://www.hanputhermal.com



Stainless Steel 316L Pillow Plate Single Inflated For Tank Ice Bank 2
