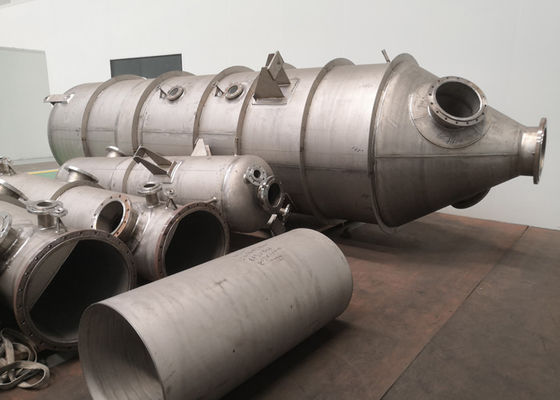

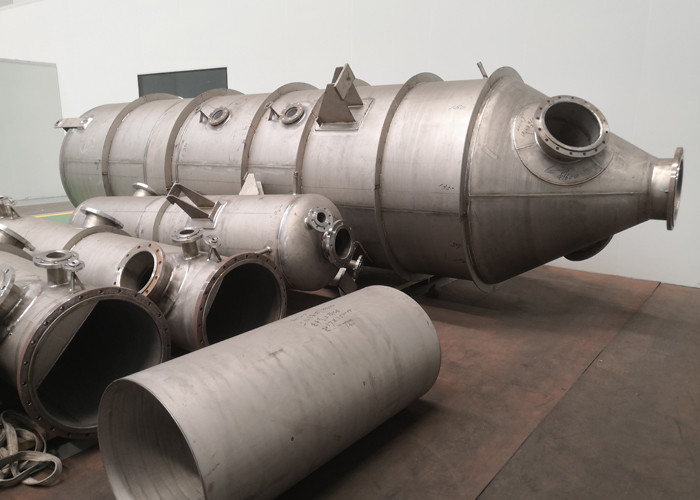

Evaporation System Used For sodium chloride (NaCl) evaporation with Rich Experience
Main features:
The MVR evaporator energy saving technology is the most advanced international technology of evaporator, only need few live steam (When start evaporator need few live steam, during normal running almost no need live steam), which greatly reduce business operating costs, reduce environmental pollution.
Due to adopt compressor supply heat source, there is little temperature difference which compared with traditional evaporator, and can achieve moderate evaporation,greatly improved product quality and reduce fouling.
No need condenser or only need small size condenser, the structure and process are quite simple, it can be full automatic operation, continuous running, safety and reliable.
This evaporator internal system equipped with CIP clean pipeline, which can achieve clean in place, easy to operate and without dead angle.
Liquid material can be evaporated under low temperature (50-100℃) in this evaporator, the liquid material is uniform and without running material, not easy coking, material heating denaturation is minimal.
Due to use of 100% recycling secondary steam latent heat, completely avoid the use of live steam, so greatly reduced steam consumption.
For heat-sensitive materials can be used with vacuum pump, which can be done in close to absolute pressure under vacuum, so as to realize low temperature evaporation, the minimum evaporation temperature can be 50 ℃.
Simple process control and automation——Because of the small amount of fluid retention, the falling film evaporator can be change according to different vacuum degree/feeding capacity/ concentration/ temperature , which is the basic conditions for stable quality of products.
The handling capacity can be up to 100T/h, with advantages such as small floor space, compact structure, stable operation and so on.
Mechanical Vapor Recompression MVR Evaporator consumption compared with traditional evaporation equipment calculated by evaporating 1T water
| Name | Steam | Electric Power | Total Cost (RMB) | ||
| Evaporation Capacity (kg/h) | Consumption (T) | Cost (RMB) | Consumption (kw) | Cost (RMB) | |
| Single Effect Evaporator | 1.1 | 220 | 3 | 2.1 | 222.1 |
| Double Effect Evaporator | 0.55 | 110 | 3 | 2.1 | 112.1 |
| Three Effect Evaporator | 0.4 | 88 | 3 | 2.1 | 90.1 |
| MVR Evaporator | 0.02 | 4.4 | 30 | 21 | 25.4 |
Working principle drawing
Part of Reference List
| No. | User | Application | Evaporation Capacity | Qty |
| 1 | Xinhua PHARMACEUTICAL Shouguang Co., Ltd | Ammouium Sulfate MVR Concentration | 17t/hr | 1 |
| 2 | Jiangxi Tonghe Pharmaceutical Co., Ltd | Sodium Chloride MVR Evaporation Crystallization | 5t/hr | 1 |
| 3 | Jiangsu Changqing agrochemical Co., Ltd | Sodium Chloride MVR Evaporation Crystallization | 10t/hr | 1 |
| 4 | Shijiazhuang Haili Fine Chemical Co., Ltd | Sodium Chloride MVR Evaporation Crystallization | 2t/hr | 1 |
| 5 | Suzhou Keda environmental protection engineering Co., Ltd | Sodium Chloride MVR Evaporation Crystallization | 1t/hr | 1 |
| 6 | Shijiazhuang hejia health care products Co., Ltd | Sodium Chloride MVR Evaporation Crystallization | 10t/hr | 1 |
| 7 | Hubei taisheng chemical Co., Ltd | Disodium hydrogen Phosphate MVR Evaporation Crystallization | 7t/hr | 1 |
| 8 | He'nan Xintiandi Pharmaceutical Co., Ltd | Ammonium chloride MVR Evaporation crystallization | 5t/hr | 1 |
| 9 | Taixing Jinyun dyestuff Co., Ltd | Dye MVR Concentration | 3t/hr | 1 |
| 10 | Changhuasheng(Taixing)Lithium Battery Material Co., Ltd | Sodium Chloride MVR Evaporation Crystallization | 5t/hr | 1 |
| 11 | Jiujiang fuda industry Co., Ltd | Ammonium Sulfate Evaporation Crystallization | 28t/hr | 1 |
| 12 | Zhejiang Jinke Peroxide Co., Ltd | Saline-alkali Evaporation crystallization | 10t/hr | 1 |
| 13 | LLC TD HALMEK | Lithium hydroxide single effect crystallization system | 4t/hr | 1 |
| 14 | Zhejiang xinhecheng special material Co., Ltd | Sodium chloride + sodium acetate evaporation crystallization | 6t/hr | 2 |
| 15 | Jiangxi Brother Medicine Co., Ltd | Nicotinic acid three-effect evaporation concentration | 9t/hr | 1 |
| 16 | Zhejiang Gramineae Technology Co., Ltd | Sodium chloride evaporation crystallization | 3t/hr | 1 |
