Stainless Steel Pillow Plate Reactor Energy Saving Heat Exchange Dimple

100m2(except for the sample)
MOQ
USD100/m2-USD300/m2
Price
Stainless Steel Pillow Plate Reactor Energy Saving Heat Exchange Dimple
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Pillow Plate Reactor
Usage: Plate Heat Exchanger
Brand: Hanpu
Function: Heat Transfer
Principle: Large Heat Exchange Area
Feature: High Heat Transfer Coefficient
High Light:

SUS201 Heat Exchange Dimple Plate

,

DIN Heat Exchange Dimple Plate

,

SUS201 Stainless Steel Pillow Plate

Basic Infomation
Place of Origin: China
Brand Name: Hanpu
Certification: ISO
Model Number: Customized
Payment & Shipping Terms
Packaging Details: Standard export package, polywood, fumigated wood, filmed
Delivery Time: 30 days after down payment
Payment Terms: TT,.LC, Western Union
Supply Ability: 30000m2 per month
Product Description

Energy-Saving Dimple plate stainless steel Heat exchange Pillow Plate



Introduction



1. Two sheets of steel are overlapped and welded by laser. Laser ring welding is used in the middle of the sheet and two laser welding seals are used around the edge.

2. Round to circle and welding.

3. Injecting high-pressure liquid between plates makes the plates expand and deform under pressure, forming a hollow space with uneven surface.

4. Feeding the medium in the jacket to cool or heat material inside the tank





Feature



1. Unique three-dimensional surface runner:

2. High heat transfer coefficient

3. It is not easy to scale.

4. Not easily blocked

5. Compact structure

6. High temperature and high pressure resistance

7. Fully welded structure

8. Floating Head Design

9. Easy to clean

10. Lower flow resistance



Technical overview

Product Name Pillow Plate Reactor
Material Stainless Steel
Color Nickel White
Standard DIN GB ISO JIS BA ANSI ASMI
Grade SUS201,SUS304,SUS316,DSS2205
Brade Hanpu
Length Customized



Product advantages
1. Cost-effective due to low welding costs

2. Thinner materials can be used, saving you on material costs

3. Pillow Plates' welding pattern guarantees high turbulence and therefore creates high overall heat transfer coefficients

4. Reduced deposition (algae, lime, etc.) due to this higher turbulence (less fouling)

5. Due to the low volume in the plate, little cooling / heating fluid needs to be circulated. As a result, less pump capacity is required

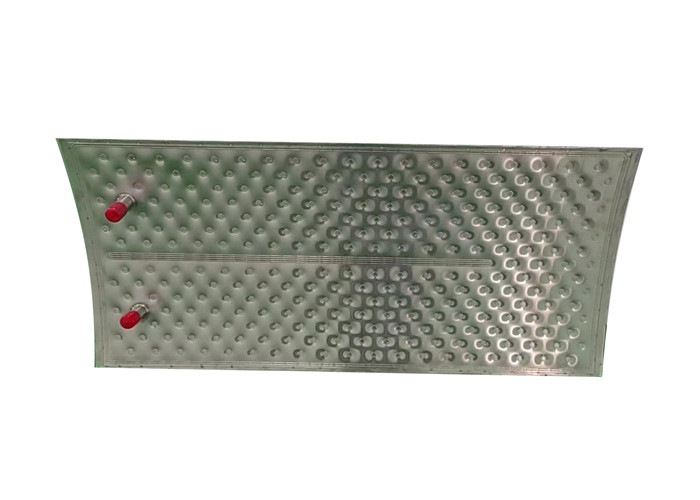

Stainless Steel Pillow Plate Reactor Energy Saving Heat Exchange Dimple 0

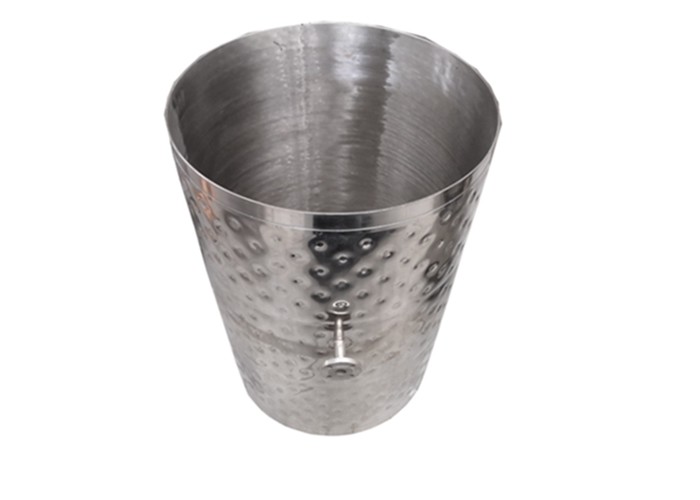

Stainless Steel Pillow Plate Reactor Energy Saving Heat Exchange Dimple 1

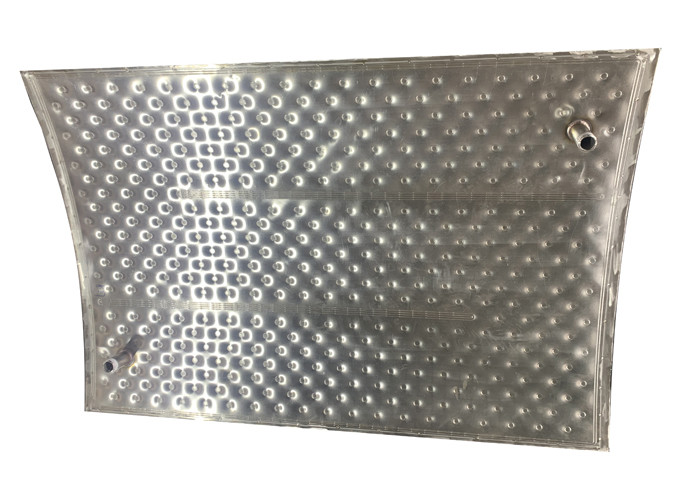

Stainless Steel Pillow Plate Reactor Energy Saving Heat Exchange Dimple 2

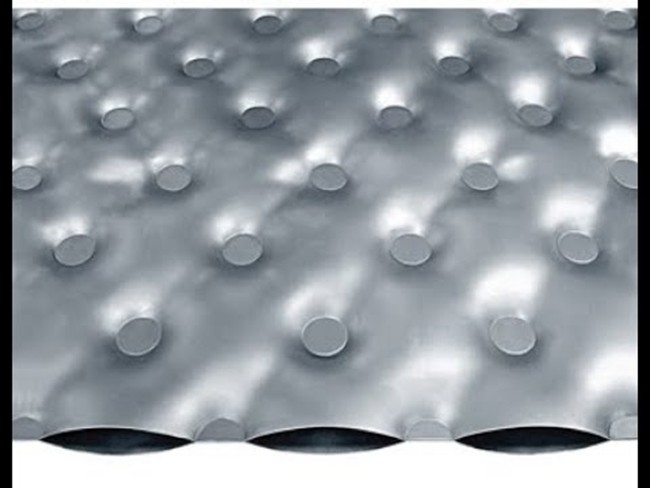

Stainless Steel Pillow Plate Reactor Energy Saving Heat Exchange Dimple 3



Certification

Stainless Steel Pillow Plate Reactor Energy Saving Heat Exchange Dimple 4

Our services

1. 12 months guarantee period from machine arriving date.

2. Our technicians could be dispatched for overseas service.

3. 7*24 hours technical consultation.

4. Your workers could get trained both in our factory and yours.

5. Routine tracing till the machine work properly will be done timely.

6. Your suggestions or any comments & reflection would be treated in priority.

7. Marketing team will visit you during our visit in your country if you require.



FAQ

1. How do you protect the quality?

As state owned enterprise with more than 100years history, we have strict operation policy,advanced processing machines to guarantee the precision, workers with operation license, related components are from world famous brand, Series of test and inspection are done in the whole producing stage.

  • What is your advantage compared with your competitors?

Quality and experience, we are top centrifuge supplier in China,our designs and structures are analogous to world leader brands.

  • Is your price competitive?

My price is not the lowest in China, but we promise, for the same quality and collocation, my price is the most favorable, for the same price, my quality is definitely superior to other brands.

  • Will you dispatch technicians for installation and commissioning?

Yes, we will upon required.

  • Do you have OEM service? Do you supply the parts?

Yes, we do, as long as you provide us your drawing and detailed requirements.

  • Do you have agents or service centre abroad?

We have some partnership in several countries as Indonesia, Brazil, USA.

  • How can we visit your factory?

If you come from aboard, air to shanghai or Nanjing airport, or if you arrive shanghai, you can take bullet train. - If you come from domestic city, air or train directly to Nanjing Nan or WUXI east, we will pick you up both from airport or railway station.

  • Can we visit your end user or contact them?

Yes, we will provide you the name list, and arrange the visit after their approval.
