Customized Stainless Steel 316 Pillow Plate 0.8mm 0.9mm Fiber Laser Welded Titanium

1pc
MOQ
USD150-30000
Price
Customized Stainless Steel 316 Pillow Plate 0.8mm 0.9mm Fiber Laser Welded Titanium
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Customized Pillow Plate Sample
Thickness: 0.8mm, 0.9mm, 1.0mm, 1.2mm, 1.5mm, 2mm.
Material: SS304/316L/2205/titanium
Application: Used For Heat Exchanger Plate
Warranty: 12 Months After Cargo Received
Process: Fiber Laser Welded
High Light:

Customized Stainless Steel 316 Pillow Plate

,

Pillow Plate 0.8mm

,

Fiber laser welded titanium Pillow Plate

Basic Infomation
Place of Origin: China
Brand Name: Hanpu
Certification: CE ISO
Model Number: 1*1m
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 120days
Supply Ability: 10 sets/month
Product Description

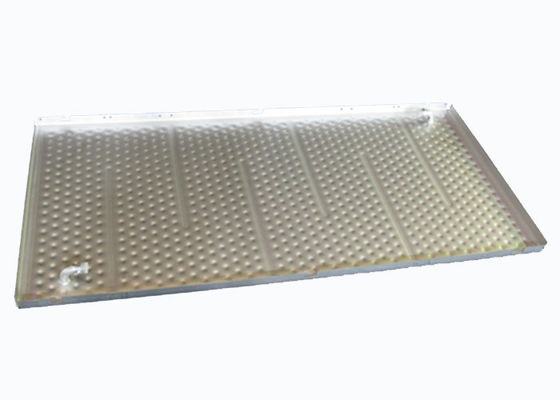

Stainless Steel 304/316 Customized Pillow Plate Sample

Description

Single inflated pillow plates consist of one thick plate and one thin plate, the thin plate will be inflated under high temperature water/air. it can be used for tank jacket.



Double inflated pillow plates consist of two plates with the same thickness, the product will deform on both sides after inflation, the double inflated pillopw plates can be used for ice bank, falling film chiller..etc



Processing

Rolled Plate → Spread → Laser welding → Embossed → Finished



Application

(1) Dimple Jacket /Clamp-on

(2) Dimple Tank
(3) Falling Film Chiller

(4) Plate Ice Machine
(5) Ice bank

(6) Evaporative condenser
(7) Bulk Solid Cooler

(8) Immersion Plate Heat Exchanger
(9) Flue Gas Heat Exchanger

(10) Immersion Chiller





What is technical overview?

Product Name Pillow plate
Material Stainless Steel
Color Nickle White
Standard DIN GB ISO JIS BA ANSI ASMI
Grade SUS201,SUS304,SUS316,TA2,Hastelloy
Brand Hanpu
Length Max.12000mm
Width Max.2000mm
Thickness of two sheets
Double Embossed Pillow Plate Single Embossed Pillow Plate
Pillow Plate 1.0mm +1.0mm Pillow Plate 1.0mm+2.5mm
Pillow Plate 1.2mm+1.2mm Pillow Plate 1.2mm+4.0-10mm
Pillow Plate 1.5mm+1.5mm Pillow Plate 1.5mm+4.0-10mm



What is advantage?



- Maintenance-free in dust loaded air
- No expensive interrupts as cleaning takes place during production

- Investment with short pay-back period

- Low maintenance cost

- Compact design and simple installation

- Good thermal operating efficiency due to high heat transfer coefficients

- Heat recovery with constant condensation

​    ​

What is picture?

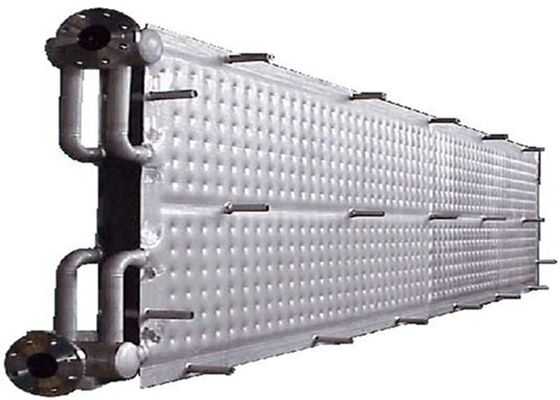

Customized Stainless Steel 316 Pillow Plate 0.8mm 0.9mm Fiber Laser Welded Titanium 0

Who we are?

We are a top Pillow Plate heat exchanger manufacturer from China, our company's production base is located in the Huangqiao Industrial Zone of Taixing, covering an area of 300 acres. The companies involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc. The website is https://www.hanputhermal.com



The company has various kinds of general (special) machinery devices including 480 sets and are the most developed working devices in the world such as: Toshiba CNC boring and milling machine imported from Japan, German Schiess CNC turning processing center, etc.



We welcome you to visit!
