Energy Saving Heat Exchange Pillow Plate For Ice Machine Chiller

20m2(except for the sample)
Energy Saving Heat Exchange Pillow Plate For Ice Machine Chiller
Features Gallery Product Description Request A Quote
Name: Pillow Plate Module
Material: SS316L
Welding Technology: Laser Welding
Length: 2000mm
Thickness: 0.8-3mm
Application: Plate Heat Exchanger
High Light:

12*2m Pillow Plate Energy Saving


2000mm Pillow Plate


Laser welding Pillow Plate Module

Basic Infomation
Place of Origin: China
Brand Name: Hanpu
Certification: ISO
Model Number: 12*2m
Payment & Shipping Terms
Packaging Details: Standard export package, polywood, fumigated wood, filmed
Delivery Time: 30 days after down payment
Payment Terms: TT,.LC, Western Union
Supply Ability: 30000m2 per month
Product Description

Stainless Steel 2205 5T/HR Duplex Falling Film Evaporator used Pillow Plate Module


The working principle of the plate falling film evaporator is that when the plate falling film evaporator works, the feed liquid enters the distributor from the top of the heating chamber, so that the feed liquid is evenly distributed on both sides of the vertical heating pillow plates and falls in the form of a film while evaporating.


Pillow plate module, one of key parts of Falling Film Evaporator, consists of a group of double embossed pillow plates. which is made of two plates with same thickness, after inflating by nitrogen gas, or high pressure water, the surface of both sides is deformed, increase heat area and reduce energy consumption.



1, not easy to scale

2. High heat transfer coefficient

3. Conducive to the collection and elimination of uncondensed steam.

4. Convenient mechanical cleaning

5. For the special secondary steam channel, the entrainment of mist is reduced by more than 50% compared with the tube type.

6. Plates can be grouped and can be used for different heat sources at the same time.



Technical overview

Product Name Pillow plate
Material Stainless Steel
Color Nickle White
Grade SUS201,SUS304,SUS316,TA2,Hastelloy
Brand Hanpu
Length Max.12000mm
Width Max.2000mm
Thickness of two sheets
Double Embossed Pillow Plate Single Embossed Pillow Plate
Pillow Plate 1.0mm +1.0mm Pillow Plate 1.0mm+2.5mm
Pillow Plate 1.2mm+1.2mm Pillow Plate 1.2mm+4.0-10mm
Pillow Plate 1.5mm+1.5mm Pillow Plate 1.5mm+4.0-10mm

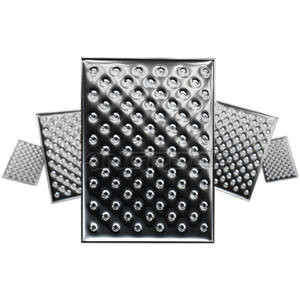

Energy Saving Heat Exchange Pillow Plate For Ice Machine Chiller 0

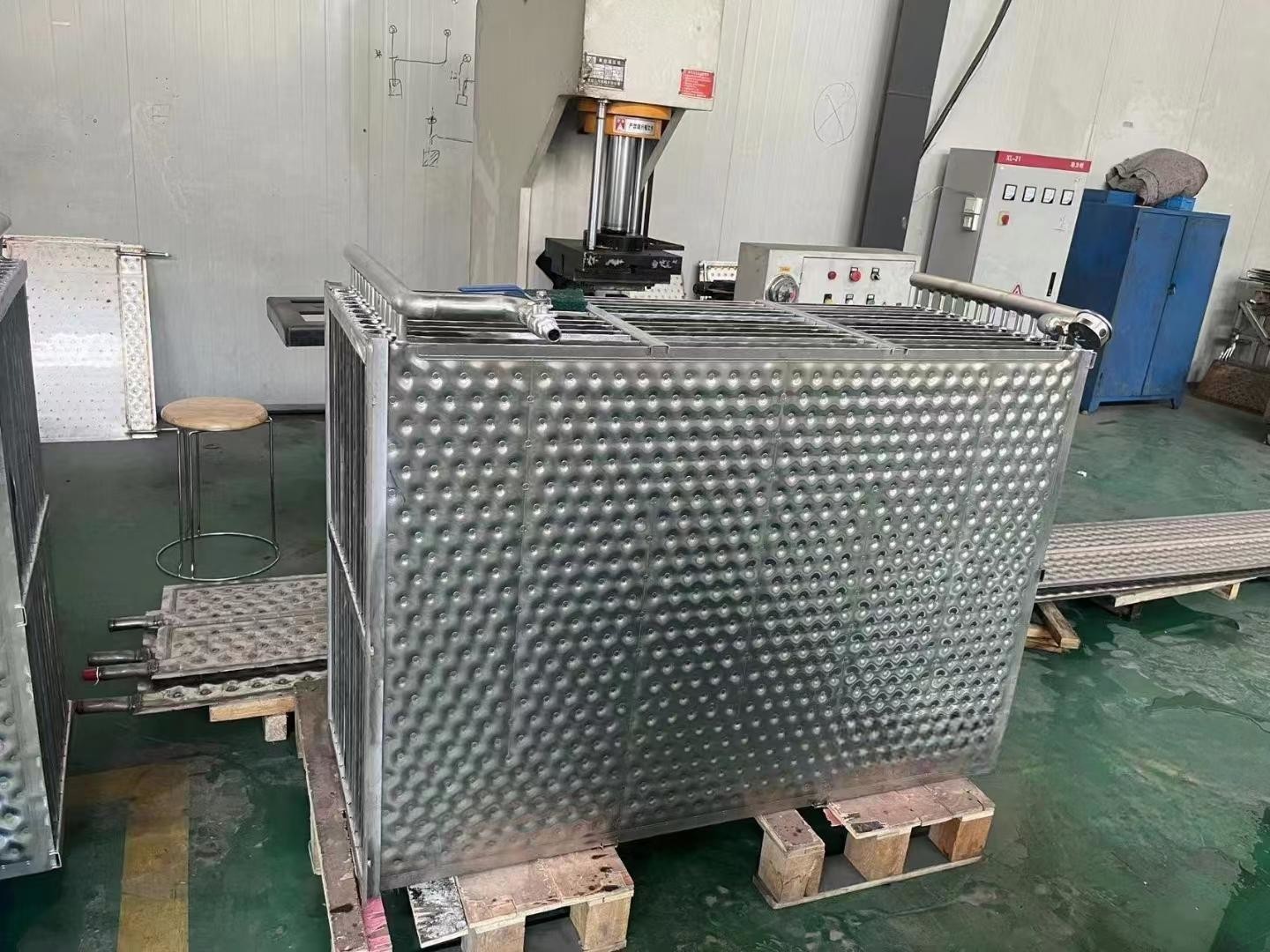

Energy Saving Heat Exchange Pillow Plate For Ice Machine Chiller 1


About us

Our company's production base is located in the Huangqiao Industrial Zone of Taixing, covering an area of 300 acres. The companies
involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc. The website is


The company has various kinds of general (special) machinery devices including 480 sets and are the most developed working devices in the world such as: Toshiba CNC boring and milling machine imported from Japan, German Schiess CNC turning processing center, etc.

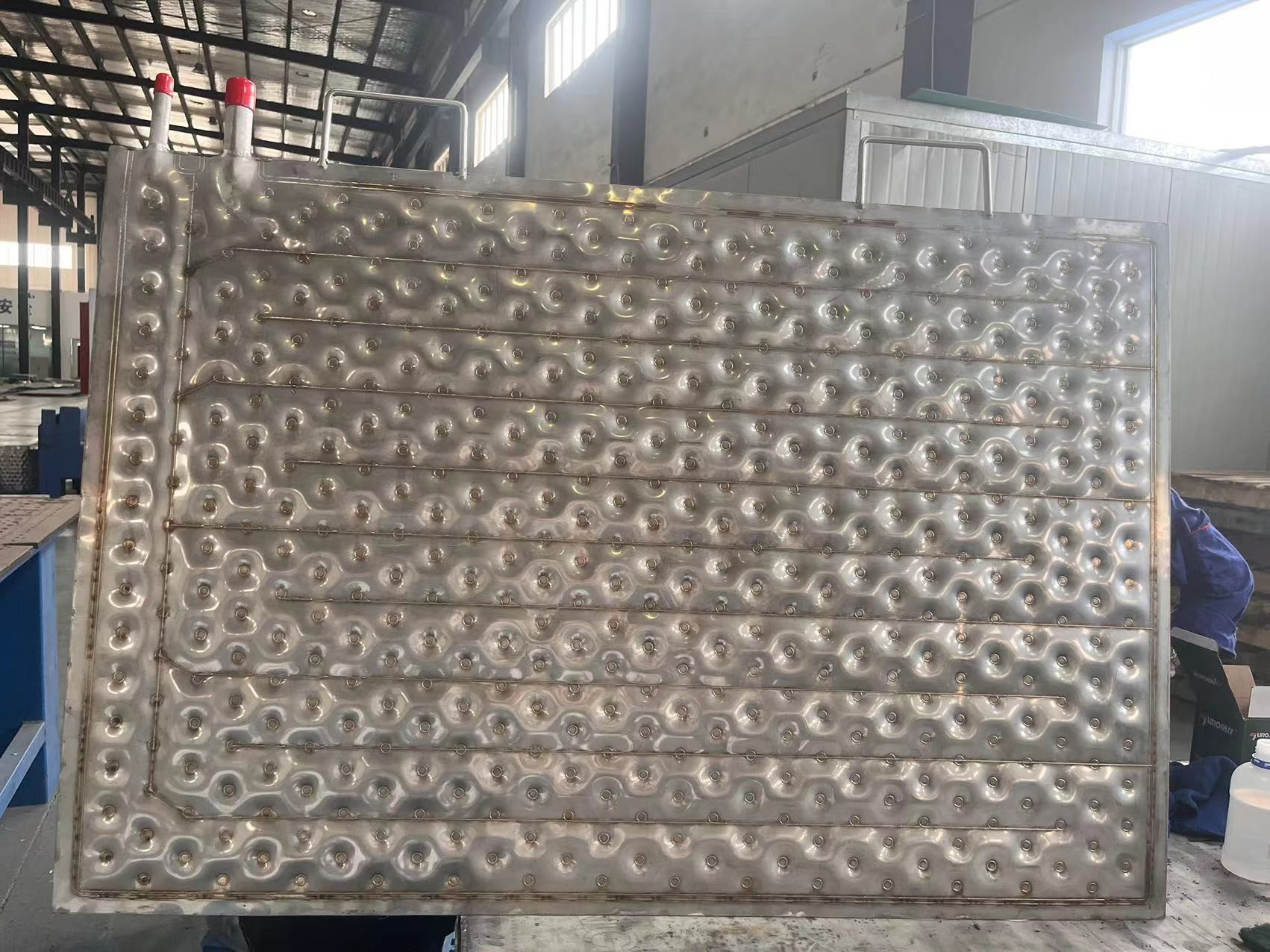

Energy Saving Heat Exchange Pillow Plate For Ice Machine Chiller 2
