Corrosion Resistant Pillow Plates For Harsh Environments With Low Temperature

Corrosion Resistant Pillow Plates For Harsh Environments With Low Temperature

  • High Light

    Corrosion Resistant Pillow Plates

    ,

    Pillow Plates For Harsh Environments

    ,

    1.2mm Pillow Plates

  • Thickness
    0.8mm, 0.9mm, 1.0mm, 1.2mm, 1.5mm, 2mm.
  • Application
    Honeycomb Jacketed Reactor/fermenter, Plate Heat Exchanger, Evaporator, Storage Tank, Condenser
  • Process
    Fiber Laser Welded
  • Keyword1
    Corrosion Resistant Pillow Plates
  • Keyword2
    Fully Welded Pillow Plate
  • Keyword3
    Dimple Plates For Cooling Tanks
  • Keyword4
    Pillow Plate Heat Exchanger
  • Keyword5
    Industrial Plate Heat Exchanger
  • Place of Origin
    China
  • Brand Name
    Hanpu
  • Certification
    CE ISO
  • Model Number
    1*1m
  • Minimum Order Quantity
    1pc
  • Price
    USD150-30000
  • Packaging Details
    Standard Export Packing
  • Delivery Time
    30days
  • Supply Ability
    10 sets/month

Corrosion Resistant Pillow Plates For Harsh Environments With Low Temperature

Corrosion Resistant Pillow Plates for Harsh Environments with High/Low Temperature
Description

Corrosion Resistant Pillow Plates for Harsh Environments with High/Low Temperature also known as a dimple plate or thermo plate, is a specialized heat transfer plate made from stainless steel. It consists of two thin stainless steel sheets that are laser-welded together to form a series of internal channels. These channels create a space for the circulation of a heating or cooling medium, such as water or refrigerant.
The pillow plate's unique design allows for efficient heat transfer between the medium inside the channels and the product or fluid outside the plate. It is commonly used in various industrial applications, including heat exchangers, tanks, vessels, and processing equipment.

Processing
Rolled Plate → Spread → Laser welding → Embossed → Finished

Application
1,Renewable Energy: Heat transfer in biomass boilers, biogas digesters, and geothermal systems.
2,Aerospace Industry: Temperature control in aircraft fuel tanks, hydraulic systems, and cooling units.
3,Marine Applications: Cooling and heating in shipboard equipment, seawater desalination, and fish tanks.
4,Brewery and Winery: Cooling and heating of wine fermentation tanks and beer conditioning vessels.
5,Research and Development: Experimental setups and test rigs for heat transfer studies and process optimization.

What is technical overview?


MaterialSS304;SS306;other
ColorNickle White
StandardDIN GB ISO JIS BA ANSI ASMI

BrandHanpu
LengthMax.12000mm
WidthMax.2000mm
Thickness of two sheets
Double Embossed Pillow PlateSingle Embossed Pillow Plate
Pillow Plate 1.0mm +1.0mmPillow Plate 1.0mm+2.5mm
Pillow Plate 1.2mm+1.2mmPillow Plate 1.2mm+4.0-10mm
Pillow Plate 1.5mm+1.5mmPillow Plate 1.5mm+4.0-10mm


What is advantage?

--Energy Savings: The high thermal efficiency of pillow plates helps reduce energy consumption, leading to cost savings.
--Robust Construction: Stainless steel pillow plates are sturdy and resistant to mechanical stress, ensuring reliable performance in demanding environments.
--Easy Maintenance: Pillow plates require minimal maintenance, reducing operational costs and downtime.
--Low Fouling: The smooth surface of stainless steel pillow plates minimizes fouling, improving overall efficiency and reducing cleaning requirements.
--Wide Temperature Range: Pillow plates can withstand a wide range of temperatures, making them suitable for both high-temperature and low-temperature applications..
​    ​
What is picture?

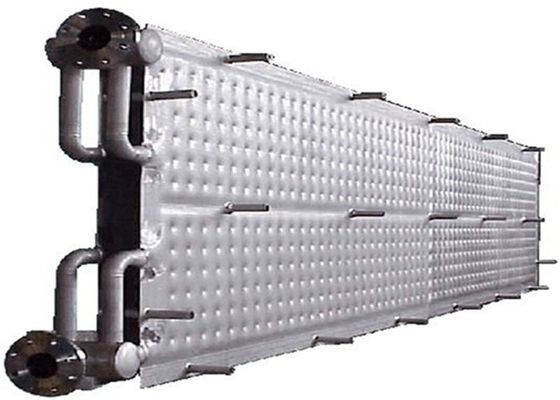

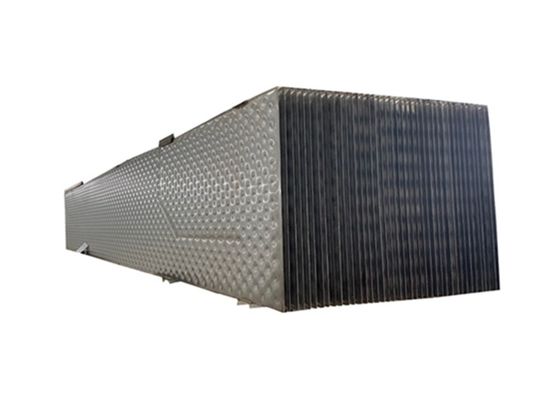

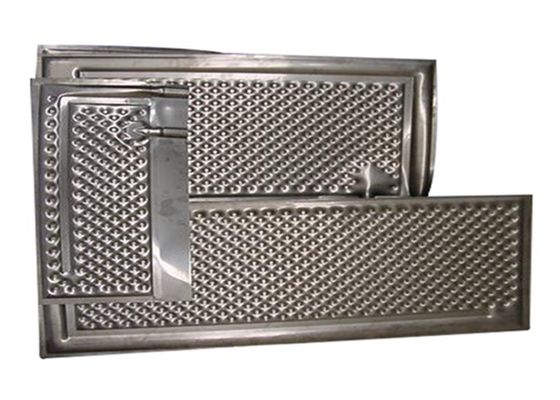

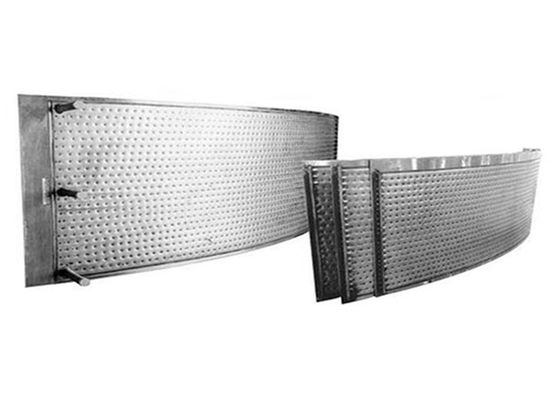

Corrosion Resistant Pillow Plates For Harsh Environments With Low Temperature 0Corrosion Resistant Pillow Plates For Harsh Environments With Low Temperature 1Corrosion Resistant Pillow Plates For Harsh Environments With Low Temperature 2Corrosion Resistant Pillow Plates For Harsh Environments With Low Temperature 3

Who we are?
We are a top Pillow Plate heat exchanger manufacturer from China, our company's production base is located in the Huangqiao Industrial Zone of Taixing, covering an area of 300 acres. The companies involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc. The website is https://www.hanputhermal.com
The company has various kinds of general (special) machinery devices including 480 sets and are the most developed working devices in the world such as: Toshiba CNC boring and milling machine imported from Japan, German Schiess CNC turning processing center, etc.
We welcome you to visit!


Corrosion Resistant Pillow Plates For Harsh Environments With Low Temperature 4Corrosion Resistant Pillow Plates For Harsh Environments With Low Temperature 5

Corrosion Resistant Pillow Plates For Harsh Environments With Low Temperature 6
