High Capacity Heat Exchanger Pillow Plates for Large Scale Filtration Operations
High Capacity Heat Exchanger Pillow Plates for Large Scale Filtration Operations's purpose is to facilitate heat exchange between two fluids or between a fluid and the surrounding environment. The pillow plates are commonly used in applications such as heat exchangers, tanks, vessels, and refrigeration systems. They are particularly effective in applications requiring large heat transfer surfaces, high heat transfer rates, and efficient temperature control.
Industrial steel pillow plates provide a reliable and cost-effective solution for heat transfer applications in industries such as food and beverage, pharmaceuticals, chemical processing, HVAC, and energy. Their versatility, efficiency, and customization options make them a preferred choice for engineers and system designers seeking optimal heat exchange performance.
Rolled Plate → Spread → Laser welding → Embossed → Finished
--Food and Beverage Processing: Cooling and heating of tanks, pasteurizers, and fermentation vessels.
--Dairy Industry: Cooling and heating of milk storage tanks, cheese vats, and butter churns.
--Brewery and Distillery: Temperature control in fermentation tanks, mash tuns, and storage vessels.
--Oil and Gas Industry: Heat transfer in storage tanks, separators, and refineries.
--Water Treatment: Cooling and heating of water storage tanks, clarifiers, and filtration systems.
What is technical overview?
|Standard||DIN GB ISO JIS BA ANSI ASMI|
|Thickness of two sheets|
|Double Embossed Pillow Plate||Single Embossed Pillow Plate|
|Pillow Plate 1.0mm +1.0mm||Pillow Plate 1.0mm+2.5mm|
|Pillow Plate 1.2mm+1.2mm||Pillow Plate 1.2mm+4.0-10mm|
|Pillow Plate 1.5mm+1.5mm||Pillow Plate 1.5mm+4.0-10mm|
What is advantage?
--Easy Integration: Pillow plates can be easily integrated into existing systems, making them a convenient choice for retrofitting or upgrading equipment.
--Resistance to Pressure: Stainless steel pillow plates can withstand high pressures, ensuring safe and reliable operation.
--Adaptability: Pillow plates can be adapted to different fluid types, allowing for versatile applications in various industries.
--Compact Design: The compact size of pillow plates saves valuable space in equipment and systems.
--Compatibility: Stainless steel pillow plates are compatible with a wide range of fluids, including water, refrigerants, oils, and chemicals.

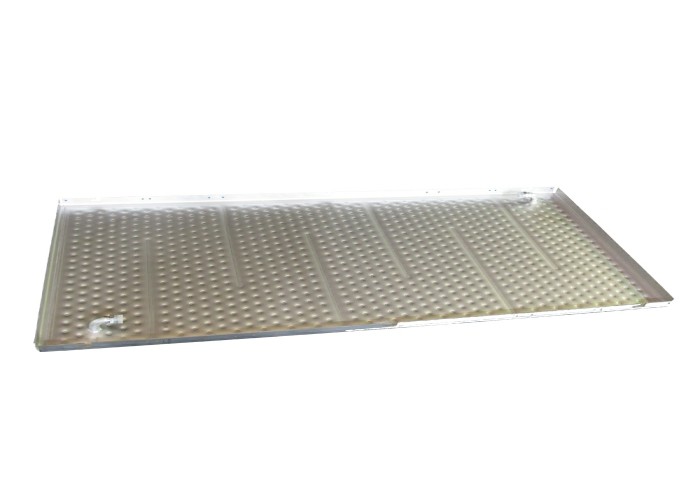

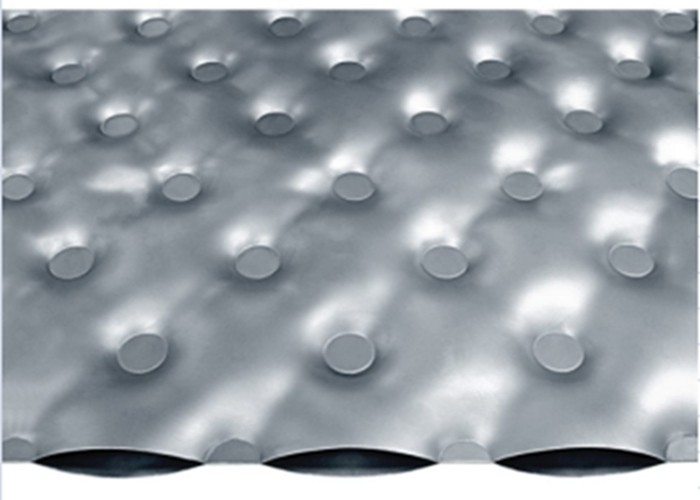

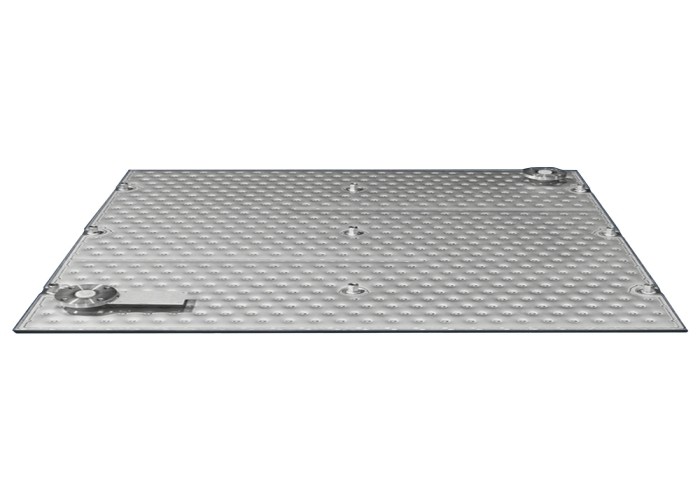

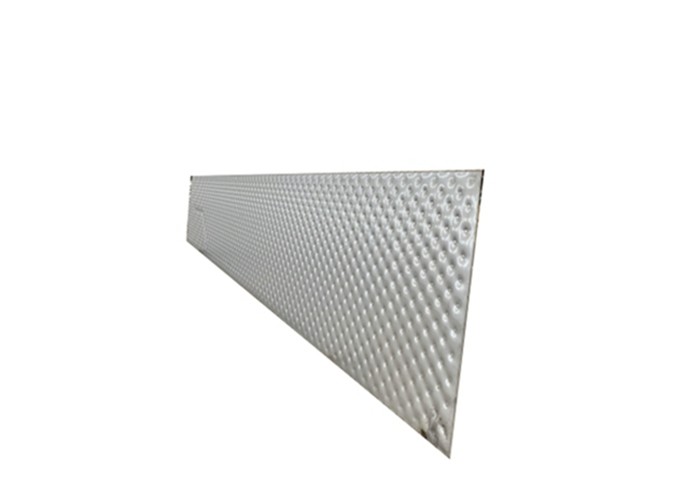

What is picture?
Who we are?
We are a top Pillow Plate heat exchanger manufacturer from China, our company's production base is located in the Huangqiao Industrial Zone of Taixing, covering an area of 300 acres. The companies involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc. The website is https://www.hanputhermal.com
The company has various kinds of general (special) machinery devices including 480 sets and are the most developed working devices in the world such as: Toshiba CNC boring and milling machine imported from Japan, German Schiess CNC turning processing center, etc.
We welcome you to visit!
Honeycomb jacketed reactor/fermenter；plate heat exchanger；evaporator；storage tank；condenser
