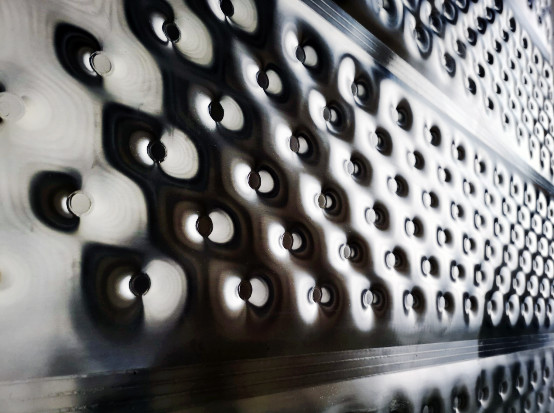

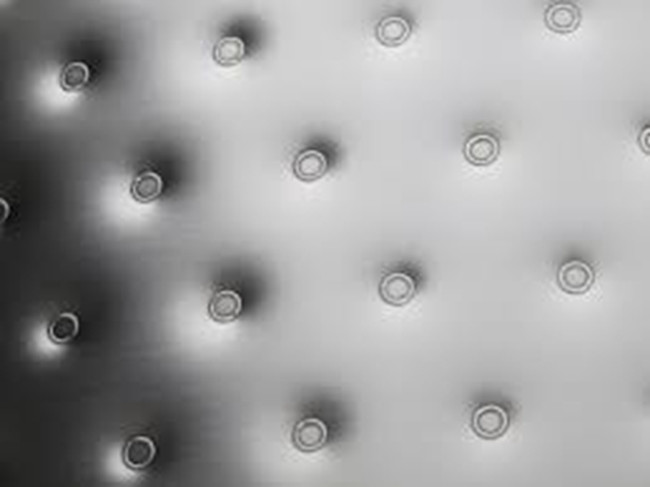

Stainless Steel Heat Exchanger Dimple Pillow Plate Jacketed

                                                  Stainless Steel Jacketed Heat Exchanger Dimple pillow plate for various application

Description
Stainless Steel Jacketed Heat Exchanger Dimple pillow plate for various application find applications in various industries due to their unique characteristics and advantages. These pillow plates, also known as dimple plates or thermo plates.
Stainless steel laser welded pillow plates have diverse applications in industries such as heat exchangers, tanks, and energy recovery systems. Their advantages include high thermal efficiency, versatility, compact design, ease of cleaning, and long-term durability. These features make them a preferred choice for various industrial applications.
Processing
Rolled Plate → Spread → Laser welding → Embossed → Finished

Application

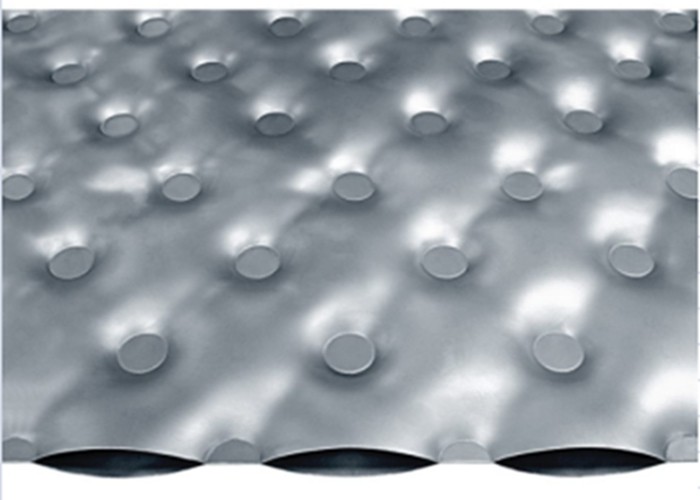

----High Thermal Efficiency: Stainless steel laser-welded pillow plates have an optimized design with embossed patterns or dimples on the surface. These patterns enhance the heat transfer coefficient, resulting in improved thermal efficiency compared to traditional flat surfaces.
----Versatility: Pillow plates can be customized in terms of size, shape, and pattern to suit specific applications. They can be fabricated with different stainless steel grades, allowing them to withstand corrosive environments and high operating temperatures.
----Compact Design: The compact design of pillow plates allows for a more efficient use of space. The large surface area provided by the dimple patterns maximizes heat transfer within a smaller footprint, making them suitable for installations where space constraints exist.
----Easy to Clean and Maintain: Stainless steel is known for its hygienic properties and resistance to corrosion. Pillow plates made from stainless steel can be easily cleaned and maintained, making them suitable for applications in industries that require high standards of cleanliness, such as food and pharmaceuticals.
----Longevity and Durability: Stainless steel pillow plates have excellent durability and can withstand harsh operating conditions. They offer long-term performance with minimal maintenance requirements, resulting in cost savings over their lifespan.

What is technical overview?

What is picture?


Who we are?
We are a top Pillow Plate heat exchanger manufacturer from China, our company's production base is located in the Huangqiao Industrial Zone of Taixing, covering an area of 300 acres. The companies involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc. The website is https://www.hanputhermal.com
The company has various kinds of general (special) machinery devices including 480 sets and are the most developed working devices in the world such as: Toshiba CNC boring and milling machine imported from Japan, German Schiess CNC turning processing center, etc.
We welcome you to visit!





Tips:

Honeycomb jacketed reactor/fermenter；plate heat exchanger；evaporator；storage tank；condenser
