Customized Stainless Steel Dimple Pillow Plate For Evaporator/Storage Tank/Condenser
| Thickness: | 0.8mm, 0.9mm, 1.0mm, 1.2mm, 1.5mm, 2mm. | Application: | Honeycomb Jacketed Reactor/fermenter, Plate Heat Exchanger, Evaporator, Storage Tank, Condenser |
| Process: | Fiber Laser Welded | Keyword1: | Stainless Steel Pillow Plate |
| Keyword2: | Dimple Pillow Plate | Keyword3: | Customized Pillow Plate |
| Keyword4: | Pillow Plate | Keyword5: | 201304 304L 316 316L Pillow Plate |
| High Light: | Customized stainless steel dimple pillow plate,dimple pillow plate for condenser,1.5mm pillow dimple plate |
||
Customized stainless steel dimple pillow plate for evaporator/storage tank/condenser
Description
Customized stainless steel dimple pillow plate for evaporator/storage tank/condenser also known as a dimple plate or thermo plate, is a heat exchanger component that consists of two thin metal plates welded together with a pattern of dimples or pillows. These dimples create a channel for fluid flow and increase the surface area of the plate, facilitating efficient heat transfer.
Processing
Rolled Plate → Spread → Laser welding → Embossed → Finished
Application
---Heat exchangers in HVAC systems.
---Food and beverage processing.
---Dairy industry for pasteurization and cooling.
---Pharmaceutical manufacturing.
---Chemical processing and reactors.
What is technical overview?
| Material | SS304；SS306；other |
| Color | Nickle White |
| Standard | DIN GB ISO JIS BA ANSI ASMI |
| Brand | Hanpu |
| Length | Max.12000mm |
| Width | Max.2000mm |
| Thickness of two sheets | |
| Double Embossed Pillow Plate | Single Embossed Pillow Plate |
| Pillow Plate 1.0mm +1.0mm | Pillow Plate 1.0mm+2.5mm |
| Pillow Plate 1.2mm+1.2mm | Pillow Plate 1.2mm+4.0-10mm |
| Pillow Plate 1.5mm+1.5mm | Pillow Plate 1.5mm+4.0-10mm |

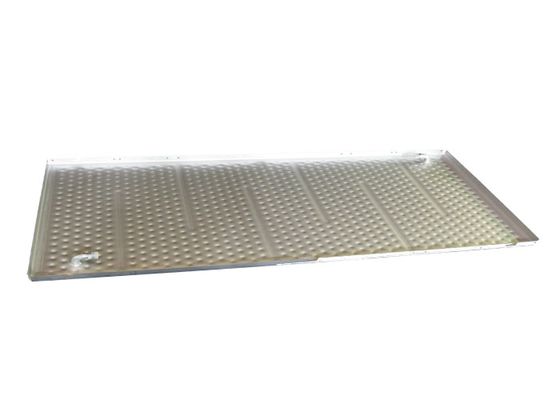

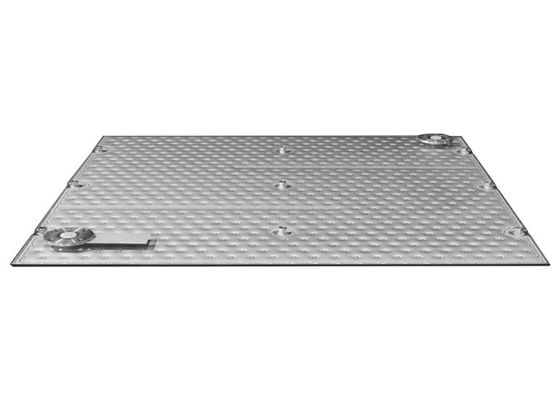

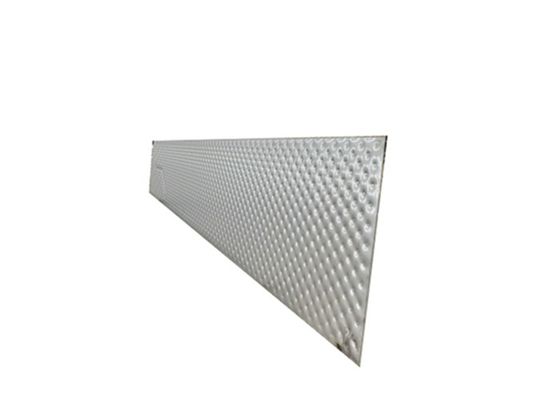

What is picture?
Who we are?
We are a top Pillow Plate heat exchanger manufacturer from China, our company's production base is located in the Huangqiao Industrial Zone of Taixing, covering an area of 300 acres. The companies involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc. The website is https://www.hanputhermal.com
The company has various kinds of general (special) machinery devices including 480 sets and are the most developed working devices in the world such as: Toshiba CNC boring and milling machine imported from Japan, German Schiess CNC turning processing center, etc.
We welcome you to visit!
Tips:
Honeycomb jacketed reactor/fermenter；plate heat exchanger；evaporator；storage tank；condenser
