Fully-Automated Industrial Turnkey Production Plant for Sea Salt Washing

1 set
MOQ
Fully-Automated Industrial Turnkey Production Plant for Sea Salt Washing
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

Polyester Filter Bag For Dust Collector

,

High Accuracy nylon filter bag

,

Dedusting Polyester Filter Bag
Basic Infomation
Place of Origin: China
Brand Name: Hanpu
Certification: CE ISO
Model Number: Mesh Filter Bag
Payment & Shipping Terms
Packaging Details: Film wrapping+Wooden case fumigated for Customizatied micron nylon mesh filter bags
Delivery Time: 7-10 working days
Supply Ability: 1000 pieces per week
Product Description
Fully-Automated Industrial Turnkey Production Plant for Sea Salt Washing

Counter-current washing and continuous pusher-centrifuge dewatering, designed for edible and industrial salt quality targets.

Overview

The line integrates raw salt pre-crushing, screw and agitated washing with counter-current stages, continuous pusher-centrifuge dewatering, and hot-air or fluidized-bed drying. Downstream modules provide in-line screening and packing. The layout targets stable purity, low moisture and efficient energy use for lake and sea salt.

  • Raw materials lake salt, sea salt
  • Control PLC with inverter-ready drives
  • Contact materials stainless options by hygiene needs
Fully-Automated Industrial Turnkey Production Plant for Sea Salt Washing 0

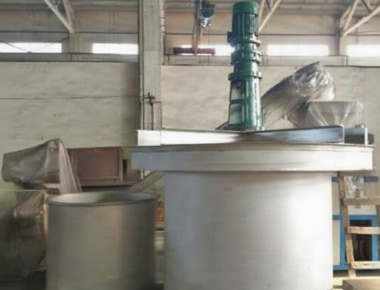

Washing trough for slurry agitation and impurity removal.
Key Specifications
Capacity 10–1000 t/day
Installation Area 200–3000 m²
Power 380V/50Hz
Certification ISO/CE
Warranty & Service 1 year, overseas support
Typical Equipment Crusher, screw and agitated washers with counter-current stages, pusher centrifuge, dryer, conveyors, packing

Specs verified on Hanpu official product pages.

Process Flow
1) Pre-crushing

Reduce bulk salt to a stable feed size for effective washing and classification.

2) Multi-stage Counter-Current Washing

Combine screw and agitated washing to remove insoluble and soluble impurities, improving purity before dewatering.

3) Continuous Dewatering

Two-stage pusher centrifuge reduces cake moisture and cuts drying energy. Typical feature humidity in cake less than 4% under rated conditions.

4) Drying & Screening

Hot-air or fluidized-bed drying to target moisture, then screening to specified grain size prior to packing.

Fully-Automated Industrial Turnkey Production Plant for Sea Salt Washing 1

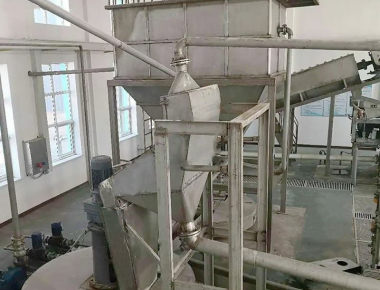

Screw washing and conveying section with adjustable residence time.
Core Equipment Pusher Centrifuge

Horizontal two-stage pusher centrifuge with PLC control and stainless contact parts options. Continuous operation delivers low residual moisture and uniform washing of salt crystals.

Fully-Automated Industrial Turnkey Production Plant for Sea Salt Washing 2
Two-stage pusher centrifuge for continuous dewatering.
Recommended Configurations
Scale Suggested Lineup
100–300 t/day Two-step crushing, screw + counter-current washing, mid-size pusher centrifuge, hot-air or fluidized-bed dryer, automated packing
300–600 t/day Continuous washing system, multi-unit pusher centrifuge dewatering, high-efficiency drying, PLC integration with energy monitoring
Request Layout & Quotation

Share raw salt type, target throughput, utilities and site conditions to receive a tailored proposal.
