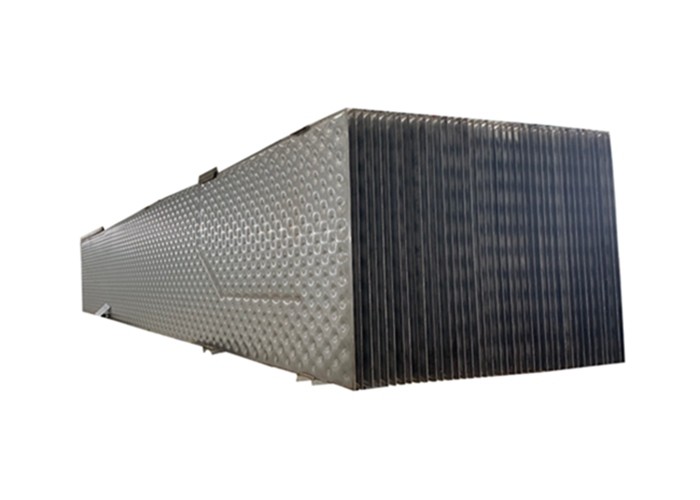

Welded Beer Immersion Tank Pillow Plate Stainless Steel Heat Exchanger N35
Single inflated pillow plates consist of one thick plate and one thin plate, the thin plate will be inflated under high temperature water/air. it can be used for tank jacket.

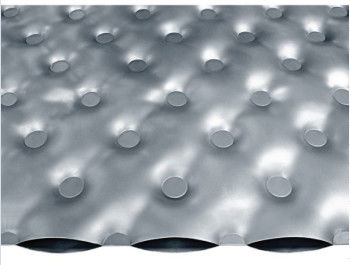

Double inflated pillow plates consist of two plates with the same thickness, the product will deform on both sides after inflation, the double inflated pillopw plates can be used for ice bank, falling film chiller..etc
Rolled Plate → Spread → Laser welding → Embossed → Finished
(1) Dimple Jacket /Clamp-on
(2) Dimple Tank
(3) Falling Film Chiller
(4) Plate Ice Machine
(5) Ice bank
(6) Evaporative condenser
(7) Bulk Solid Cooler
(8) Immersion Plate Heat Exchanger
(9) Flue Gas Heat Exchanger
(10) Immersion Chiller
What is technical overview?
|Product Name||Pillow plate|
|Standard||DIN GB ISO JIS BA ANSI ASMI|
|Thickness of two sheets|
|Double Embossed Pillow Plate||Single Embossed Pillow Plate|
|Pillow Plate 1.0mm +1.0mm||Pillow Plate 1.0mm+2.5mm|
|Pillow Plate 1.2mm+1.2mm||Pillow Plate 1.2mm+4.0-10mm|
|Pillow Plate 1.5mm+1.5mm||Pillow Plate 1.5mm+4.0-10mm|
What is advantage?
- Maintenance-free in dust loaded air
- No expensive interrupts as cleaning takes place during production
- Investment with short pay-back period
- Low maintenance cost
- Compact design and simple installation
- Good thermal operating efficiency due to high heat transfer coefficients
- Heat recovery with constant condensation
What is picture?
Who we are?
We are a top Pillow Plate heat exchanger manufacturer from China, our company's production base is located in the Huangqiao Industrial Zone of Taixing, covering an area of 300 acres. The companies involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc. The website is https://www.hanputhermal.com
The company has various kinds of general (special) machinery devices including 480 sets and are the most developed working devices in the world such as: Toshiba CNC boring and milling machine imported from Japan, German Schiess CNC turning processing center, etc.
We welcome you to visit!
