Heat Exchanger 304 Pillow Plate 0.8mm 2205 For Plate Falling Film Evaporator

Heat Exchanger 304 Pillow Plate 0.8mm 2205 For Plate Falling Film Evaporator

  • High Light

    Heat Exchanger 304 Pillow Plate

    ,

    2205 pillow plate heat exchanger

    ,

    0.8mm laser welded pillow plate

  • Name
    Customized Pillow Plate Sample
  • Thickness
    0.8mm, 0.9mm, 1.0mm, 1.2mm, 1.5mm, 2mm.
  • Material
    SS304/316L/2205/titanium
  • Application
    Used For Heat Exchanger Plate
  • Warranty
    12 Months After Cargo Received
  • Process
    Fiber Laser Welded
  • Place of Origin
    China
  • Brand Name
    Hanpu
  • Certification
    CE ISO
  • Model Number
    1*1m
  • Minimum Order Quantity
    1pc
  • Price
    USD150-30000
  • Packaging Details
    Carton
  • Delivery Time
    120days
  • Supply Ability
    10 sets/month

Heat Exchanger 304 Pillow Plate 0.8mm 2205 For Plate Falling Film Evaporator

Pillow Plate Heat Exchanger 304 Manufacturer For Plate Falling Film Evaporator

Description

Single inflated pillow plates consist of one thick plate and one thin plate, the thin plate will be inflated under high temperature water/air. it can be used for tank jacket.



Double inflated pillow plates consist of two plates with the same thickness, the product will deform on both sides after inflation, the double inflated pillopw plates can be used for ice bank, falling film chiller..etc

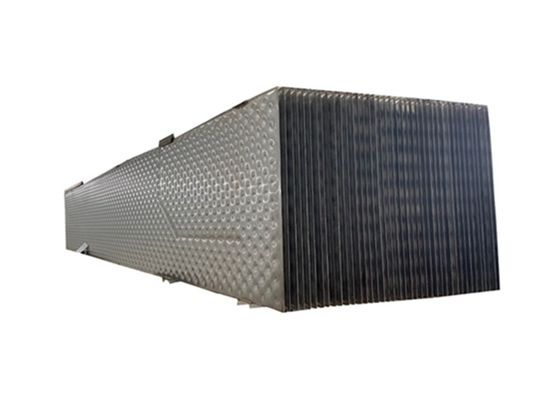

Heat Exchanger 304 Pillow Plate 0.8mm 2205 For Plate Falling Film Evaporator 0

Processing

Rolled Plate → Spread → Laser welding → Embossed → Finished

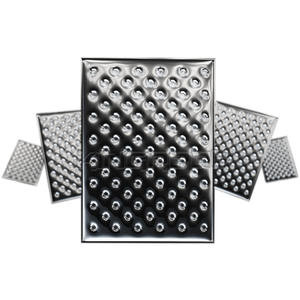

Heat Exchanger 304 Pillow Plate 0.8mm 2205 For Plate Falling Film Evaporator 1

Application

(1) Dimple Jacket /Clamp-on

(2) Dimple Tank
(3) Falling Film Chiller

(4) Plate Ice Machine
(5) Ice bank

(6) Evaporative condenser
(7) Bulk Solid Cooler

(8) Immersion Plate Heat Exchanger
(9) Flue Gas Heat Exchanger

(10) Immersion Chiller





What is technical overview?

Product Name Pillow plate
Material Stainless Steel
Color Nickle White
Standard DIN GB ISO JIS BA ANSI ASMI
Grade SUS201,SUS304,SUS316,TA2,Hastelloy
Brand Hanpu
Length Max.12000mm
Width Max.2000mm
Thickness of two sheets
Double Embossed Pillow Plate Single Embossed Pillow Plate
Pillow Plate 1.0mm +1.0mm Pillow Plate 1.0mm+2.5mm
Pillow Plate 1.2mm+1.2mm Pillow Plate 1.2mm+4.0-10mm
Pillow Plate 1.5mm+1.5mm Pillow Plate 1.5mm+4.0-10mm



What is advantage?



- Maintenance-free in dust loaded air
- No expensive interrupts as cleaning takes place during production

- Investment with short pay-back period

- Low maintenance cost

- Compact design and simple installation

- Good thermal operating efficiency due to high heat transfer coefficients

- Heat recovery with constant condensation

​    ​

What is picture?

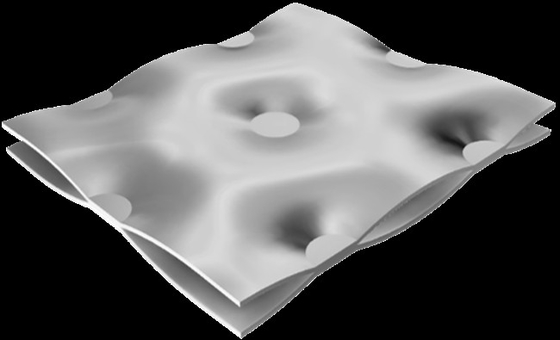

Heat Exchanger 304 Pillow Plate 0.8mm 2205 For Plate Falling Film Evaporator 2

Who we are?

We are a top Pillow Plate heat exchanger manufacturer from China, our company's production base is located in the Huangqiao Industrial Zone of Taixing, covering an area of 300 acres. The companies involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc. The website is https://www.hanputhermal.com



The company has various kinds of general (special) machinery devices including 480 sets and are the most developed working devices in the world such as: Toshiba CNC boring and milling machine imported from Japan, German Schiess CNC turning processing center, etc.



We welcome you to visit!
