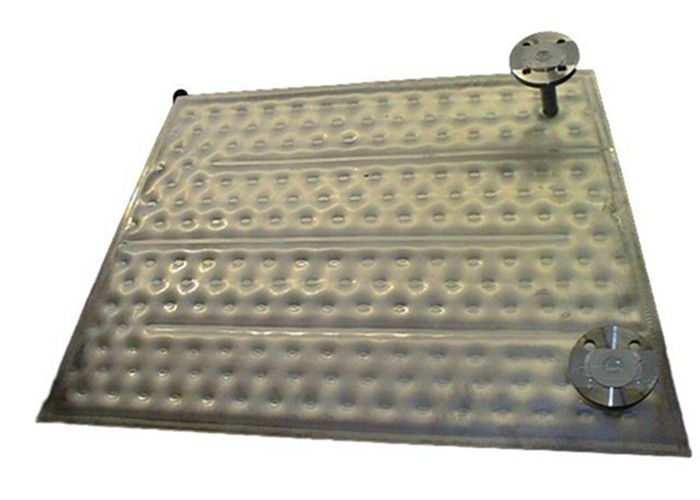

Stainless steel Industrial Laser Welding Heat Transfer Pillow Plate Type
Characteristic
| Double Embossed Pillow Plate | Single Embossed Pillow Plate |
| Pillow Plate 1.0mm +1.0mm | Pillow Plate 1.0mm+2.5mm |
| Pillow Plate 1.2mm+1.2mm | Pillow Plate 1.2mm+4.0-10mm |
| Pillow Plate 1.5mm+1.5mm | Pillow Plate 1.5mm+4.0-10mm |
Product introduction
The Pillow Plate consists of two stainless steel sheets that are laser welded together by welding a custom circle weld pattern. The outside perimeter of the Pillow Plate is fully laser welded to create a pressure boundary. At the edges of the Pillow Plate, a contour is welded to create a pressure-tight part.
The Pillow Plate is hydraulically inflated by using water through a hydrostatic pump. Hydraulically inflating will guarantee for a safe inflation process. Other inflation processes can be used depending on the application.
The inflation process pressurizes the two sheets which allows the material to deform, a cavity will be created for use of a heat transfer medium. The Pillow Plate can be used with either liquids, steam or refrigerants.
Advantages
Plate heat exchangers have larger surface area. They are composed of a number of thin metal plates compressed together. Gasket is attached to the heat transfer plate with forms flow channel and acts seal up the fluid. Different materials have different channels and in their respective flow path alternately. They won't leak to the outside. The number of the heat transfer plate is determined according to the amount of fluid, physical properties of fluid,the pressure drop and thermal condition. Each plate is corrugated to increase the maximum heat transfer area.
Applications
1. Wide-channel plate-shell heat exchanger:
Specially designed for working conditions with larger particles or higher viscosity, the medium can fully flow in the runner
without blockage under the above working conditions. Generally, the solid medium goes between the plates without contacts, and the
clean medium goes through the plate cavity with contacts:
Flow resistance is small and scaling is not easy.
High heat transfer coefficient.
Easy to clean.
2. Plate heat recovery unit:
It is a special case of plate and shell heat exchanger, which is used to recover various waste steam and waste heat.
3. Chill System:
Used as evaporator in refrigeration system
Falling film ice water machine
Large Slip Ice Maker
4. Most of the heat transfer medium can be used for Pillow Plate Heat Exchanger
1. Steam
2. Hot water
3. Cooling water
4. Conduction oil
5. Heat transfer fluid
6. Glycol solution
Our services
1. 12 months guarantee period from machine arriving date.
2. Our technicians could be dispatched for overseas service.
3. 7*24 hours technical consultation.
4. Your workers could get trained both in our factory and yours.
5. Routine tracing till the machine work properly will be done timely.
6. Your suggestions or any comments & reflection would be treated in priority.
7. Marketing team will visit you during our visit in your country if you require.
FAQ
1. Do you have OEM service? Do you supply the parts? Yes, we do, as long as you provide us your drawing and detailed requirements.
