Stainless steel fiber Laser Welding Dimple Steel Plate For Milk Cooling Tank

100m2(except for the sample)
MOQ
USD100/m2-USD300/m2
Price
Stainless steel fiber Laser Welding Dimple Steel Plate For Milk Cooling Tank
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Laser Welding Dimple Plate
Application: Wine,beer,dairy,honey,juice,and So On
Brand: Hanpu
Heating Method: Electricity/ Steam Heating
Principle: Large Heat Exchange Area
Function: Heat Transfer
Shape Mode: Single Or Double Drum
Material: Stainless Steel Or Customized
High Light:

2m dimple steel plate

,

laser welding dimple steel plate

,

laser welding pillow with plate

Basic Infomation
Place of Origin: China
Brand Name: Hanpu
Certification: ISO
Model Number: Customized
Payment & Shipping Terms
Packaging Details: Standard export package, polywood, fumigated wood, filmed
Delivery Time: 30 days after down payment
Payment Terms: TT,.LC, Western Union
Supply Ability: 30000m2 per month
Product Description

Stainless steel fiber laser welding dimple plate, pillow plate for milk cooling tank



Introduction

Heat exchange pillow plate is machined by full automatic laser welding and forming process. Its unique pillow structure makes fluid into optimum turbulence state to achieve high efficient heat exchange. It also boasts various advantages such as dust proof, high temperature and high pressure resistance and easy cleaning, etc



Procee Tape

1. Two sheets of steel are overlapped and welded by laser. Laser ring welding is used in the middle of the sheet and two laser welding seals are used around the edge.
2. Injecting high-pressure liquid between plates makes the plates expand and deform under pressure, forming a hollow plate heat exchanger with uneven surface.



Characteristic

High pressure capacity (≥5MPa) Anti-fouling
Compact structure Can be designed into shape
High heat transfer Low flow resistance
Maximum size of single piece:2000*12000mm Easy to clean



Pillow plate advantages:

1) Excellent turbulence design, high heat exchange coefficient

2) High welding reliability

3) Small external surface resistance, not easy to product dirt

4) High temperature and high pressure resistance

5) Wide channel, low pressure drop, easy to clean

6) Flexible shape to maintain optimal heat exchange effect



Applications

Fermentation tank
Jacket Reactor
Other Heat Exchange Jacket Tanks

● Chill System

Used as evaporator in refrigeration system
Falling film ice water machine
Large Slip Ice Maker

● Dehumidifier

The dehumidifier is mainly composed of cooler, separator, etc.

● Customized

We can design and fabricate heat transfer elements of various materials and arbitrary shapes to meet your special requirements

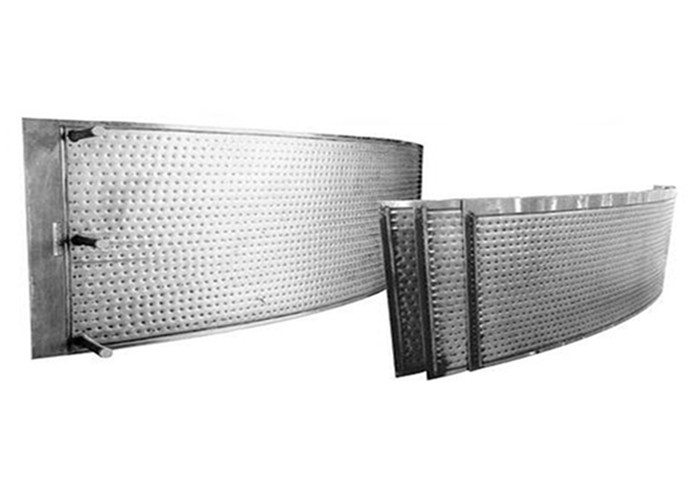

Stainless steel fiber Laser Welding Dimple Steel Plate For Milk Cooling Tank 0

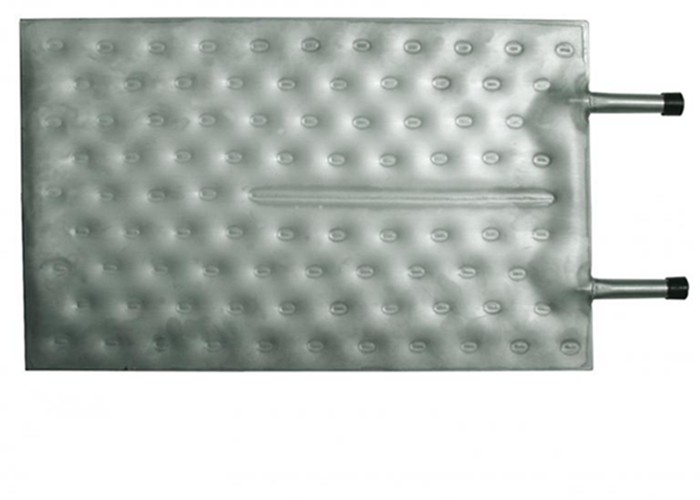

Stainless steel fiber Laser Welding Dimple Steel Plate For Milk Cooling Tank 1

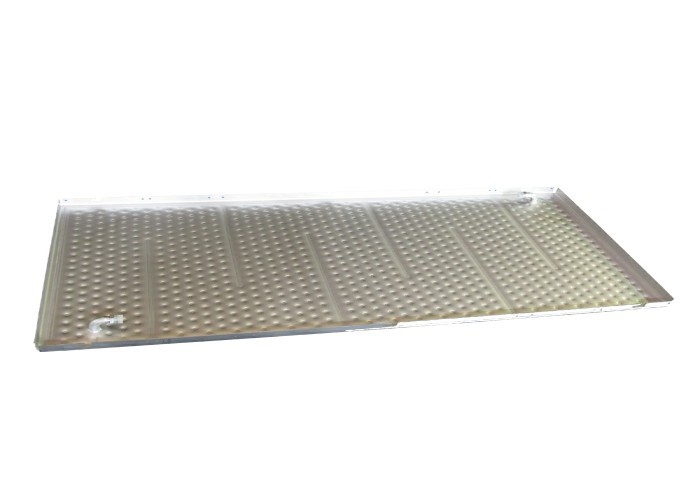

Stainless steel fiber Laser Welding Dimple Steel Plate For Milk Cooling Tank 2





About us

Jiangsu Hanpu Mechanical Technology Co., Ltd. is a project engineering company jointly established by Jiangsu Saideli Pharmaceutical Machinery Co., Ltd., Jiangsu Zhongyi Environmental Technology Co., Ltd., FERREO A/S in Denmark, Shanghai Jiaotong University and Nanjing Kingreat Machinery Co., Ltd. Hanpu main projects include but are not limited to: MVR evaporation system, powder washing salt and vacuum salt production project, oil tank sludge cleaning project, landfill leachate treatment project, plant/animal oil processing production line, urban wastewater treatment project, various wastewater treatment projects, and CBD oil extraction production line. Technical support and transfer of API product technology package. The main products are centrifuge series, multi-effect and MVR evaporation and crystallization equipment, laser welding heat transfer board, lithium battery material mixing equipment, pressure vessel and titanium, zirconium, nickel, and other non-standard special equipment.


Tips:heat exchanger plates,pillow plate sheet,dimpled heat transfer jackets
