High heat transfer coefficient Mvr Tubular Forced Circulation Evaporator Equipment during crystallization process
Working principle and characteristics:
Working principle and characteristics:
MVR forced circulation evaporation system consists of evaporator, separator, forced circulation pump and steam compressor. The heat transfer between the material in the evaporator tube and the steam outside the tube causes the temperature to rise; After the temperature rises, the solution is divided into two phases: steam and solution. The steam rises to the separator, and the droplets in the steam are separated by the demister. After purification, the droplets are transported to the compressor. The compressor compresses the steam and sends it to the shell side of the evaporator for heating steam, so as to realize the secondary steam recycling and continuous evaporation. The secondary steam generated by evaporation overflows from the material, the material is concentrated into supersaturated material, crystallizes, and the crystal slurry is output from the circulation pipeline by the discharge pump; The mother liquor enters the forced circulating pump, and then enters the evaporator for re evaporation under the action of the circulating pump.
In this way, the circulation continuously evaporates, concentrates and crystallizes.
It has the following advantages:
It is suitable for materials with high viscosity;
It contains particles;
High concentration ratio;
The pipe has high velocity and is not easy to dry wall or scale.
Crystallization
During the crystallization process, substances are separated from one another by using different solution equilibria. Applications include salt extraction and fertilizer production.

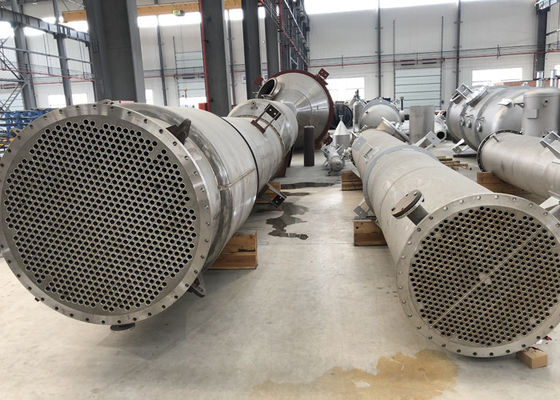

The Tubular Forced Circulation Evaporator FCE is the right solution to concentrate streams containing a big amount of suspended solids, medium-highly viscous fluids and products with high tendency to fouling. This kind of evaporator is also widely used as crystallizer, where special separator designs are used to separate crystals from the recirculated crystal slurry.
It is particularly suited as high concentration step in multiple-effect (ME) evaporation, thermal vapor recompression (TVR) or mechanical vapor recompression (MVR) arrangement because the forced circulation evaporator can handle more concentration values and/or higher solid content than a falling film evaporators.
In a multi-stage system, Forced Circulation Evaporators can be used in combination with Thin Film Evaporators/Dryers or with Falling Film Evaporators
FEATURES
Medium to high heat transfer coefficient, especially for low viscous product under turbulent conditions
High circulation flow-rate inside the heat exchanger
Evaporation does not take place on the heating surface, but in the flash separator
Long residence time due the high recirculation, therefore also high liquid hold-up
Vacuum operation or at atmospheric condition
Not suitable for sensitive product, due the long residence time
| Product Name | MVR Tubular Forced Circulation Evaporator |
| Application | Crystallization Treatment |
| Condenser | Vertical |
| Warranty | 12 months |
| Features | Energy Saving/Low operation cost |
| Customized Service | Yes |
Our production Capability
Our products are sold all over the world, you can rest assured.
