Forced Circulating Multi Effect Concentration MVR Evaporator System

Forced Circulating Multi Effect Concentration MVR Evaporator System

  • High Light

    Forced Circulating MVR evaporator system


    460V MVR evaporator system


    MVR mechanical vapor recompression

  • Feature
    High Heat Transfer Coefficient
  • Core Components
    PLC Engine, Motor
  • Voltage
  • Condenser
    Vertical Type
  • Warranty
    12 Months
  • Application
    Crystallization Stage
  • Process
    Heat Exchanger
  • Machinery Test Report
  • After Warran
    Commissioning And Training
  • Key Selling Points
    Forced Circulation Evaporator
  • Warranty Of Core Components
    1 Year
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Price
  • Packaging Details
    Bulk with strong strap
  • Delivery Time
    about 90 days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    1 Set/3 months

Forced Circulating Multi Effect Concentration MVR Evaporator System

Various Good Quality Forced Circulating MVR Multi-effect Evaporators and concentration System


Its working principle: use centrifugal steam compressor or other steam compression machinery to compress all the secondary steam to make its physical properties meet the requirements of heating steam, and use it as heating steam. In this evaporation process, fresh steam is needed only when starting up, and after normal operation, there is no need to input fresh steam, and no (or very little) secondary steam needs to be condensed, Therefore, MVR evaporation greatly saves steam, but uses more electricity.


Name Pillow plate series Shell and tube heat exchanger Detachable plate heat exchanger Spiral plate heat exchanger
Operating temperature range <800℃ <800℃ <170℃ <350℃
Maximum pressure <60 bar <200 bar <32 bar <25 bar
Heat transfer coefficient to water[W/m2·℃] 3500 2700 5600 2000
Application of air and water heat exchange fit fit not fit Partial fit
Immersion in tank or water fit Partial fit not fit not fit
Welding of tank and reactor Applicable not applicable not applicable not applicable
Install into the existing reactor and other equipment Flexible application Partial applicable not applicable not applicable
All welded construction Applicable Applicable not applicable not applicable
Heavily contaminated liquids and other applications Applicable Applicable Partial Applicable Applicable
Weight per unit area low high low high
Falling film, condenser and evaporator fit fit Partial fit Partial fit


Name MVR Multi-effect evaporator and concentration
Material SUS304L/316L/Titanium alloy
Vacuum degree Adjustable
Rotary flask Customzied
Rotating Speed 0~180rpm
Main uses Industrial Distillation,Evaporation,Concentration
Sealing PTFE
Condenser Vertical
Product Keywords energy saving MVR evaporator,MVR industrial evaporator


During the crystallization process, substances are separated from one another by using different solution equilibria. Applications include salt extraction and fertilizer production.


The Tubular Forced Circulation Evaporator FCE is the right solution to concentrate streams containing a big amount of suspended solids, medium-highly viscous fluids and products with high tendency to fouling. This kind of evaporator is also widely used as crystallizer, where special separator designs are used to separate crystals from the recirculated crystal slurry.

It is particularly suited as high concentration step in multiple-effect (ME) evaporation, thermal vapor recompression (TVR) or mechanical vapor recompression (MVR) arrangement because the forced circulation evaporator can handle more concentration values and/or higher solid content than a falling film evaporators.

In a multi-stage system, Forced Circulation Evaporators can be used in combination with Thin Film Evaporators/Dryers or with Falling Film Evaporators


Medium to high heat transfer coefficient, especially for low viscous product under turbulent conditions
High circulation flow-rate inside the heat exchanger
Evaporation does not take place on the heating surface, but in the flash separator
Long residence time due the high recirculation, therefore also high liquid hold-up
Vacuum operation or at atmospheric condition
Not suitable for sensitive product, due the long residence time

Forced Circulating Multi Effect Concentration MVR Evaporator System 0

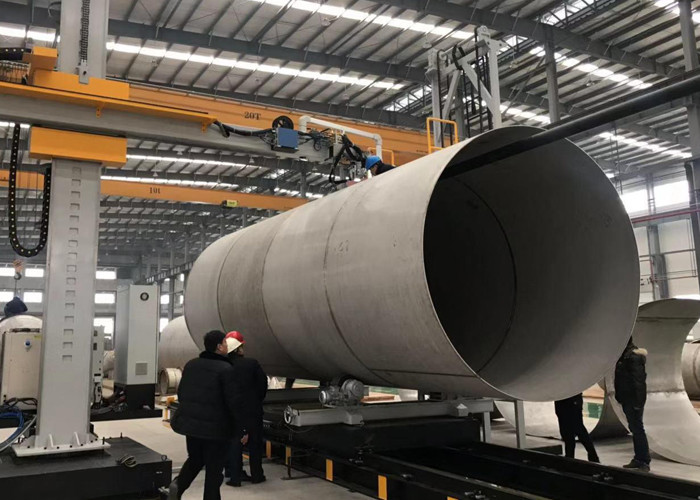

Our production Capability

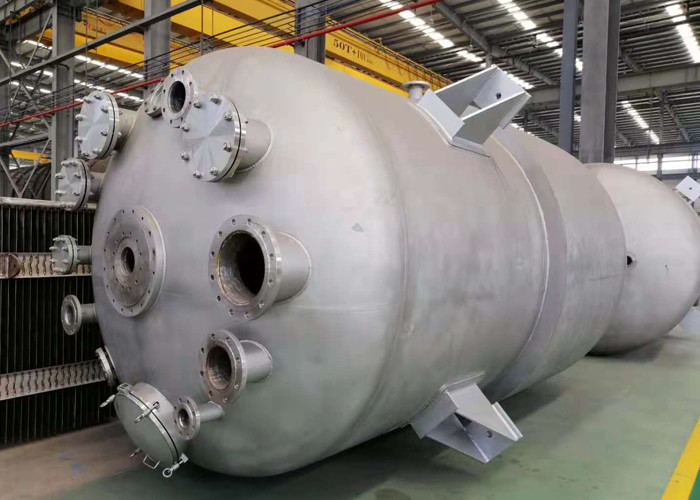

Forced Circulating Multi Effect Concentration MVR Evaporator System 1

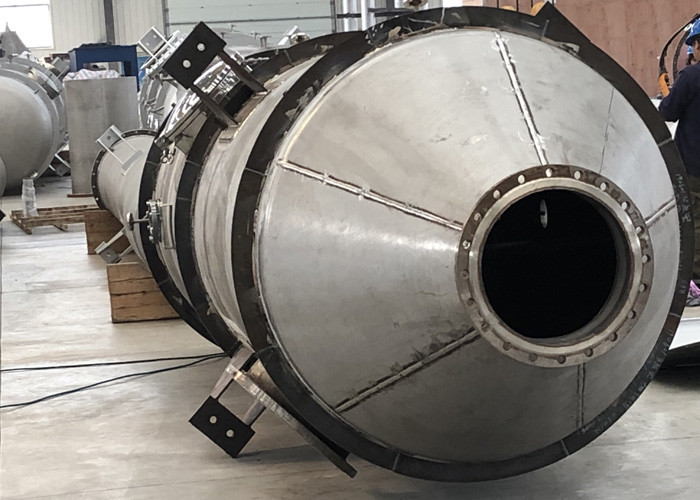

Forced Circulating Multi Effect Concentration MVR Evaporator System 2

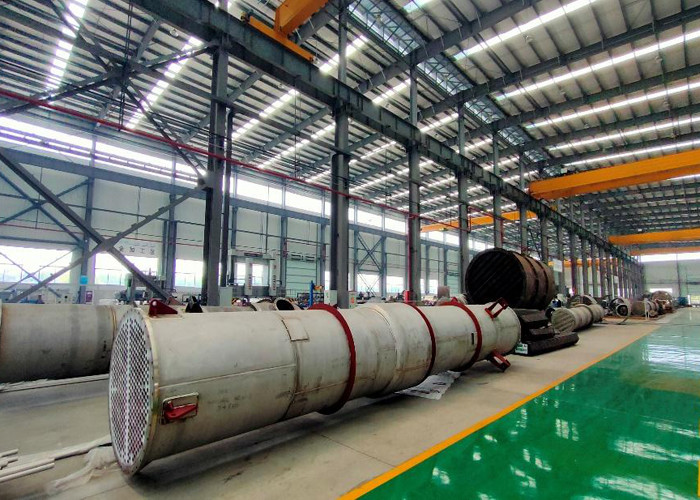

Forced Circulating Multi Effect Concentration MVR Evaporator System 3
