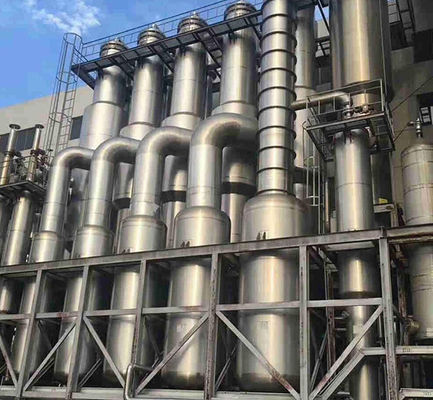

220V 380V 415V TVR Evaporator For Pharmaceutical Chemical Bioengineering

220V 380V 415V TVR Evaporator For Pharmaceutical Chemical Bioengineering

  • High Light

    Bioengineering TVR Evaporator

    ,

    415V TVR Evaporator

    ,

    Energy saving TVR system

  • Application
    Food, Pharmaceutical, Chemical, Bioengineering, Environmental Engineering, Waste Liquid Recovery And Other Industries
  • Key Selling Points
    Energy Saving
  • Voltage
    220/380/415V
  • Core Components
    Motor, Jet Pump
  • Main Uses
    Evaporation, Concentration And Crystallization
  • Material
    SUS304L/316L/Ta
  • After Warranty Service
    Overseas Service Center Available,facility Installment And Commission
  • Marketing Type
    Customized Required Product
  • Warranty
    12 Months
  • Place of Origin
    Jiangsu,China
  • Brand Name
    HANPU
  • Certification
    CE,ISO9001
  • Model Number
    HP-MVR
  • Minimum Order Quantity
    1 set
  • Price
    100,000USD~2,500,000USD/SET
  • Packaging Details
    Package with strong strap
  • Delivery Time
    90 days
  • Payment Terms
    T/T, L/C, D/A, D/P
  • Supply Ability
    1 set/90days

220V 380V 415V TVR Evaporator For Pharmaceutical Chemical Bioengineering

High efficient Thermal Vapor Recompression (TVR) Evaporators in food, pharmaceutical, chemical, bioengineering​



Principle

A part of the vapour steam is compressed to a higher pressure and temperature level by a steam jet pump with steam, so that it can be used as a heating medium.



Process description

The solution is preheated with condensate and enters the evaporation circuit. Here it mixes with the circulated solution and is warmed up in heater H. In the evaporator V, solvent (water) evaporates while cooling the solution to the boiling temperature. The resulting vapour steam is compressed to a higher pressure and temperature level by the steam jet pump with the help of steam, so that it can be used as a heating medium for heating the circulated solution. The excess vapour is condensed. If salt shall be crystallized in the plant, further evaporation concentrates the solution to such an extent that crystals are formed. If desired, the crystals in the suspension can then be separated from the solution and dried.



Thermo compressors

Thermo compressors are designed to recycle heat energy by capturing and recompressing waste steam for use elsewhere.

Thermo compressors, like ejectors, have no moving parts. The mechanical design consists of a steam chest, nozzle holder, nozzles, and diffuser.

The thermo compressor uses high pressure steam, as a motive fluid, which enters the steam chest and expands through the nozzle.

The high-velocity steam then entrains the waste steam, into a mixing chamber where the fluids are combined.

The mixed fluids are then recompressed to an immediate pressure through the diffuser, which acts as a nozzle in reverse, reconverting velocity energy to pressure energy.

Thermo compressors are designed for applications in the food, petroleum, chemical, power, and paper industries. Thermal recompression is typically applied in the dairy and juice industries to recapture and reuse steam from evaporators during the concentration process.

All thermo compressors are custom designed and performance tested to meet our client’s exacting specifications.

To learn more about thermo compressor heat recovery systems, and to discuss your specific process or application, please feel free to contact us.



Characteristics

Only a fraction of the evaporation energy has to be used in the form of live steam.

Low investment costs.

Retrofitting in existing plants is possible.

Suitable for various applications.



Variants

Increase in the number of stages to reduce steam consumption.

With or without salt separation.

Different preheating concepts.

Condensation of surplus vapour in mixing- or surface condensers.





Performance Comparison for Different Evaporator
Item Single effect evaporator multi-effect evaporator TVR evaporator MVR evaporator
Energy consumption energy consumption is much higher than others, 1ton water will consume 1Ton steam in theory comparatively energy conservation Base on traditional multi-effect evaporator, one more effect added, but higher pressure steam driven needed The most energy saving technology for evaporator, but 10-40kwh power consumption
Floor space Small large large small
Energy sources steam & power, need steam pipe network and boiler steam & power, need steam pipe network and boiler steam & power, need steam pipe network and boiler, need high pressure steam. electricity, don't need pipe network, all the close-loop circulation system
Automaticity Semi automatic Full automatic operation, continuous evaporation Full automatic operation, continuous evaporation Full automatic operation, continuous evaporation



Working principle drawing

220V 380V 415V TVR Evaporator For Pharmaceutical Chemical Bioengineering 0

Workshop site

220V 380V 415V TVR Evaporator For Pharmaceutical Chemical Bioengineering 1

220V 380V 415V TVR Evaporator For Pharmaceutical Chemical Bioengineering 2



Certificate

220V 380V 415V TVR Evaporator For Pharmaceutical Chemical Bioengineering 3
