High Heat Transfer Coefficient TVR Evaporator In Pharmaceutical

1 set
MOQ
100,000USD~1,000,000USD/SET
Price
High Heat Transfer Coefficient TVR Evaporator In Pharmaceutical
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: TVR Evaporator In Pharmaceutical Production
Power Source: Jet Vapor
Key Words: Thermal Vapor Recompression TVR
Voltage: 220V/380V/480V Or As Request
Material: Stainless Steel
Scale: Industrial Evaporator
Characteristic: Reduce Steam Consumption
Packaging Details: Inner Anti-collision Broken Plastic,outer Wooden Case.
Vacuum Degree: Adjustable As Required
Feature: High Heat Transfer Coefficient
High Light:

Pharmaceutical TVR Evaporator

,

480V TVR Evaporator

,

TVR vapor recompression evaporator

Basic Infomation
Place of Origin: Jiangsu,China
Brand Name: HANPU
Certification: ISO9001,CE
Model Number: HP-TVR
Payment & Shipping Terms
Packaging Details: Bulk with strap
Delivery Time: 90 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 1 set/ 3 months
Product Description

Industrial High heat transfer coefficient Thermal Vapor Recompression TVR Evaporator in pharmaceutical production



Thermal Vapor Recompression (TVR)

A method to reduce the energy consumption of a steam heated evaporator system.

Uses high pressure steam as the motive fluid to a steam ejector, to entrain recycled lower pressure steam and discharge the combined steam at a more useful intermediate pressure.

The vapor compression cycle relies on the condensation temperature of the lower pressure steam increasing with the increase in pressure.



WORKING PRINCIPLE

The Evaporator Falling Film TVR is fed from the wet process area. From the balance tank product is heated to at least boiling temperature of the first calandria, depending on the final product demands. This can be done by plate heat exchangers, tubular heat exchanger and/or direct heaters by use of condensate, excess vapours, steam and/or hot water. After the heating process the product is fed to the first calandria where the product starts to evaporate. The evaporator works according the falling film principle, which means that product and vapour are flowing downwards through the tubes. At the bottom, concentrate falls down and vapour is sucked into the separator, whereby the smaller concentrate droplets are separated from the vapour. Concentrated product is pumped to the next pass, whereby the product is further concetrated. After the final calandria pass product is pumped, depending on the product and required concetrate properties, to a next calandria, concentrate tanks of the dryer or via a flash cooler to crystallisation tanks. As the amount of water evaporation is limited and the required temperature difference is relatively high, steam is used as driving force. This is referred to as thermal vapour recompression (TVR). Depending on capacity and specific product needs the number of stages and thermo-compressors are defined. A density controller in the concentrate flow is used to set the steam flow to the thermo-compressor.



HIGHLIGHTS

Long production runs due to high hygienic standards

Proven technology

Fully cleanable (Cleaning in Place)



TVR evaporator

Water evaporation capacity (T / h)

1.2,1.5,2.4,3,3.6,4,5,6,6.5,8,10,12,15,18,20,22,25,30,35,40,45,50,55,60,65,75,85,100,120,150,180,200,240,270,300......



This equipment is a continuous concentration equipment, which is composed of TVP steam heat pump, heating tube, evaporation chamber, condenser, vacuum pump, circulating discharge pump and operation platform. It is suitable for concentration in food, pharmaceutical, chemical, bioengineering, environmental engineering, waste liquid recovery and other industries. This equipment adopts TVR heat pump technology, so as to save a lot of energy. Adding TVR heat pump can save energy, at least equivalent to one more effect, that is, the steam consumption of four effect + TVR is basically the same as that of five effect.



Performance Comparison for Different Evaporator
Item Single effect evaporator multi-effect evaporator TVR evaporator MVR evaporator
Energy consumption energy consumption is much higher than others, 1ton water will consume 1Ton steam in theory comparatively energy conservation Base on traditional multi-effect evaporator, one more effect added, but higher pressure steam driven needed The most energy saving technology for evaporator, but 10-40kwh power consumption
Floor space Small large large small
Energy sources steam & power, need steam pipe network and boiler steam & power, need steam pipe network and boiler steam & power, need steam pipe network and boiler, need high pressure steam. electricity, don't need pipe network, all the close-loop circulation system
Automaticity Semi automatic Full automatic operation, continuous evaporation Full automatic operation, continuous evaporation Full automatic operation, continuous evaporation

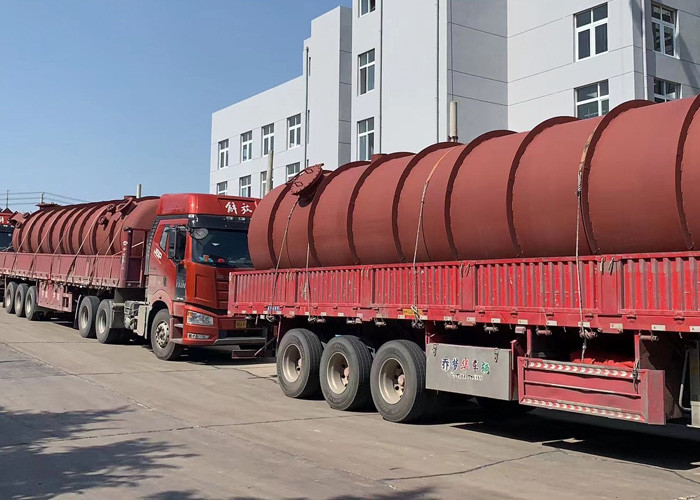

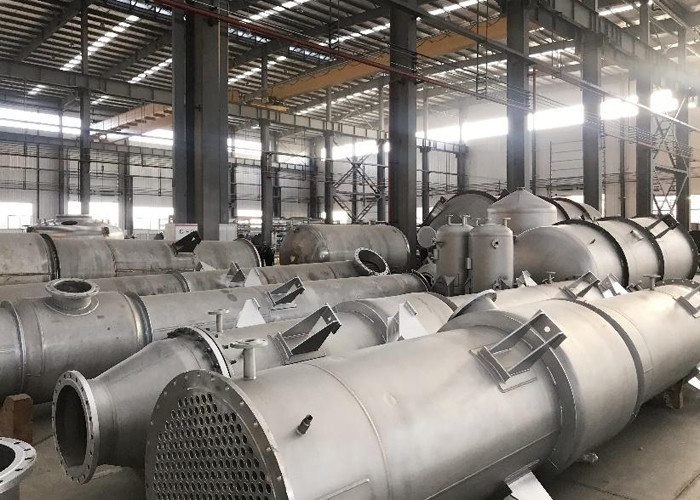

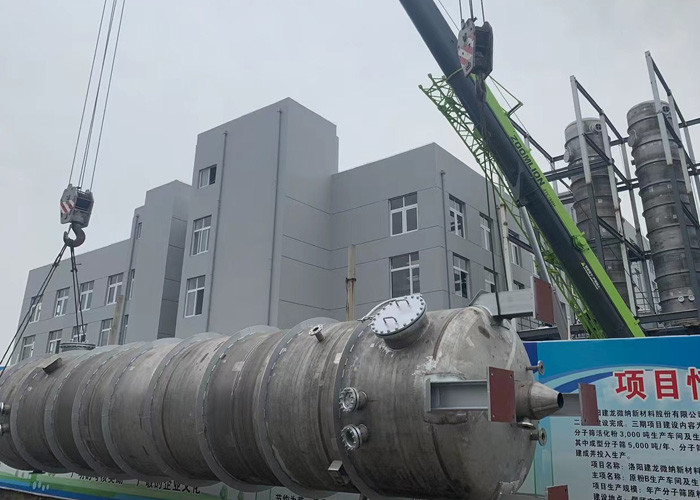

Production & installment facility
