Vacuum Thermal Vapor Recompression Evaporator For Ammonium Sulfate Salt Crystallization

Vacuum Thermal Vapor Recompression Evaporator for Ammonium Sulfate Salt Crystallization

Thermo compressors

Thermo compressors are designed to recycle heat energy by capturing and recompressing waste steam for use elsewhere.

Thermo compressors, like ejectors, have no moving parts. The mechanical design consists of a steam chest, nozzle holder, nozzles, and diffuser.

The thermo compressor uses high pressure steam, as a motive fluid, which enters the steam chest and expands through the nozzle.

The high-velocity steam then entrains the waste steam, into a mixing chamber where the fluids are combined.

The mixed fluids are then recompressed to an immediate pressure through the diffuser, which acts as a nozzle in reverse, reconverting velocity energy to pressure energy.

Thermo compressors are designed for applications in the food, petroleum, chemical, power, and paper industries. Thermal recompression is typically applied in the dairy and juice industries to recapture and reuse steam from evaporators during the concentration process.

All thermo compressors are custom designed and performance tested to meet our client’s exacting specifications.

To learn more about therm compressor heat recovery systems, and to discuss your specific process or application, please feel free to contact us.



Process description

The solution is preheated with condensate and enters the evaporation circuit. Here it mixes with the circulated solution and is warmed up in heater H. In the evaporator V, solvent (water) evaporates while cooling the solution to the boiling temperature. The resulting vapour steam is compressed to a higher pressure and temperature level by the steam jet pump with the help of steam, so that it can be used as a heating medium for heating the circulated solution. The excess vapour is condensed. If salt shall be crystallized in the plant, further evaporation concentrates the solution to such an extent that crystals are formed. If desired, the crystals in the suspension can then be separated from the solution and dried.



Characteristics

Only a fraction of the evaporation energy has to be used in the form of live steam.

Low investment costs.

Retrofitting in existing plants is possible.

Suitable for various applications.



HIGHLIGHTS

Long production runs due to high hygienic standards

Proven technology

Fully cleanable (Cleaning in Place)



TVR evaporator

Water evaporation capacity (T / h)

1.2,1.5,2.4,3,3.6,4,5,6,6.5,8,10,12,15,18,20,22,25,30,35,40,45,50,55,60,65,75,85,100,120,150,180,200,240,270,300......



This equipment is a continuous concentration equipment, which is composed of TVP steam heat pump, heating tube, evaporation chamber, condenser, vacuum pump, circulating discharge pump and operation platform. It is suitable for concentration in food, pharmaceutical, chemical, bioengineering, environmental engineering, waste liquid recovery and other industries. This equipment adopts TVR heat pump technology, so as to save a lot of energy. Adding TVR heat pump can save energy, at least equivalent to one more effect, that is, the steam consumption of four effect + TVR is basically the same as that of five effect.



Performance Comparison for Different Evaporator
Item Single effect evaporator multi-effect evaporator TVR evaporator MVR evaporator
Energy consumption energy consumption is much higher than others, 1ton water will consume 1Ton steam in theory comparatively energy conservation Base on traditional multi-effect evaporator, one more effect added, but higher pressure steam driven needed The most energy saving technology for evaporator, but 10-40kwh power consumption
Floor space Small large large small
Energy sources steam & power, need steam pipe network and boiler steam & power, need steam pipe network and boiler steam & power, need steam pipe network and boiler, need high pressure steam. electricity, don't need pipe network, all the close-loop circulation system
Automaticity Semi automatic Full automatic operation, continuous evaporation Full automatic operation, continuous evaporation Full automatic operation, continuous evaporation

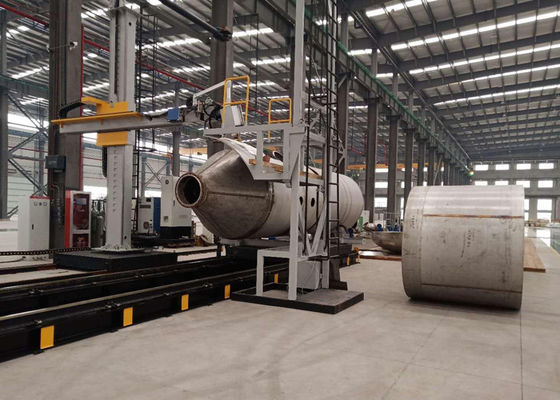

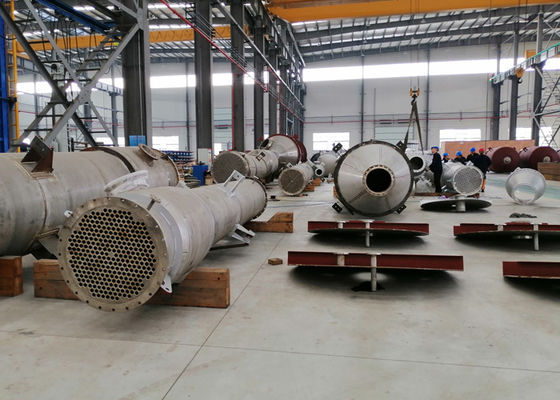

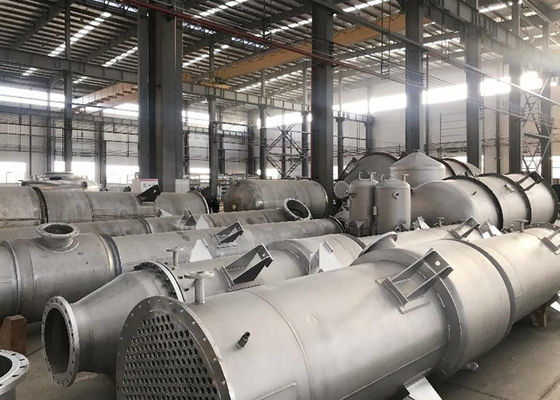

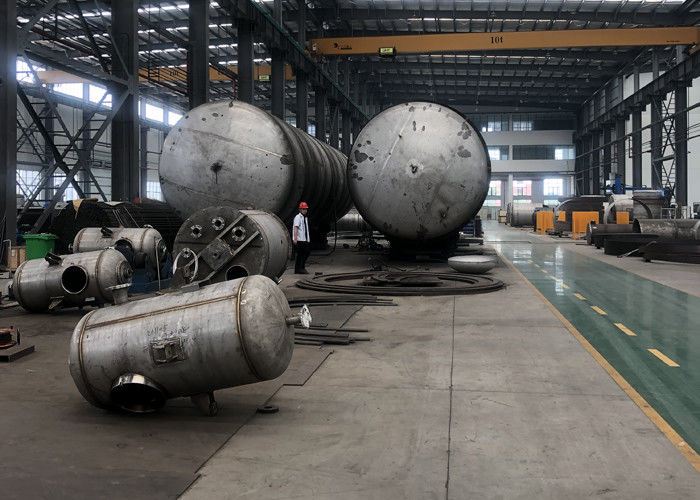

Production & installment facility
