High efficient Double effect crystallization system for multiple salts

1sets
MOQ
USD18,0000-USD65,0000
Price
High efficient Double effect crystallization system for multiple salts
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Double Effect Crystallization System For Multiple Salts
Key Sales Points: Energy Saving
Application: Multiple Salts
Power Source: Steam
Voltage: Customized
Dimension(L*W*H): Customized
Brand Name: Hanpu
Condition: New
Highlight:

Silver Ice Bank Cooling System

,

ISO9001 Ice Bank Cooling System

,

Stainless Steel ice bank water chiller
Basic Infomation
Place of Origin: China
Brand Name: Hanpu
Certification: CE ISO
Model Number: MVR
Payment & Shipping Terms
Packaging Details: standard exported wooden case
Delivery Time: 45-60 working days
Supply Ability: 1sets per months
Product Description
High-Efficient Double-Effect Crystallization System for Multiple Salts
Hanpu designs and supplies double-effect evaporation & vacuum crystallization systems for multi-salt applications such as NaCl, KCl, (NH4)2SO4, Na2SO4, sodium acetate, and mixed brines. Our compact two-effect layout delivers strong energy savings, precise crystal size control, and reliable operation for both new plants and brownfield upgrades.

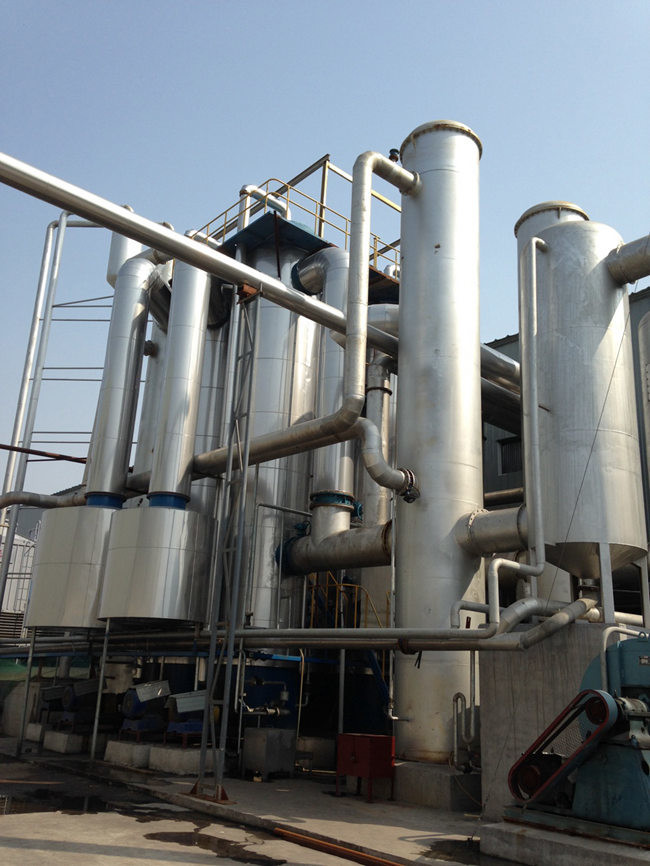

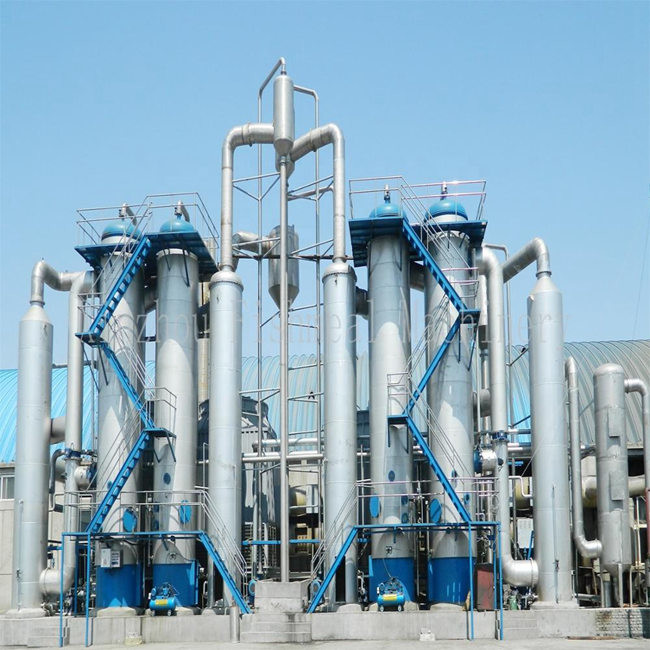

High efficient Double effect crystallization system for multiple salts 0 High efficient Double effect crystallization system for multiple salts 1
Technology Parameters
Model DE-500 DE-1000 DE-1500 DE-2000
Evaporation (kg/h) 500 1000 1500 2000
Steam Consumption (kg/h) ≤250 ≤500 ≤750 ≤1000
Dimensions L×W×H (m) 4×1.5×3.3 5×1.6×3.5 6×1.6×3.7 6.5×1.7×4.3
Cycle Water Consumption (t/h) 6 12 15 18
Operating Ranges (common to all models)
Evaporation Temperature -- First Effect (°C) 80-90
Evaporation Temperature -- Second Effect (°C) 55-70
Vacuum -- First Effect (MPa) 0.02-0.04
Vacuum -- Second Effect (MPa) 0.05-0.06
Steam Pressure (MPa) <0.25
Concentration Ratio 1.2-1.3
System Features
Energy Efficiency
Typical steam economy of ~1.8-2.2 kg water/kg live steam (higher with TVR), cutting utility cost vs. single-effect systems.
Crystal Quality
Tight control of supersaturation, magma density, residence time, and seeding to hit target PSD and purity.
Low Fouling & Easy CIP
Optimized velocities and heat flux reduce scaling on heat surfaces; automated CIP quickly restores U-value.
Flexible to Multiple Salts
Process recipes switchable for chloride, sulfate, phosphate, and acetate systems; compatible with upstream RO/NF and downstream centrifuges/dryers.
How the Double-Effect Crystallization Works
  1. Preheat & Deaerate: Feed is preheated using condensate/flash vapors; non-condensables removed to stabilize boiling points.
  2. Effect 1 (Higher T/P): Falling-film or forced-circulation evaporation raises concentration near the metastable zone.
  3. Effect 2 (Lower T/P, Vacuum): Secondary vapor from Effect 1 heats Effect 2; controlled flash cooling and/or evaporative cooling develop supersaturation.
  4. Crystallizer: OSLO/FC or draft-tube-baffle configuration manages magma density and growth, limiting fines.
  5. Solid-Liquid Separation: Centrifuge or pressure filter recovers crystals; mother liquor is recycled or purged based on impurity build-up.
  6. CIP & Turnaround: Automated alkaline/acid cycles with conductivity endpoints; short downtime between campaigns.
Delivery Workflow
Feed analysis & targets → Thermal design & heat/mass balance → Pilot validation (as needed) → Detailed engineering → Fabrication & FAT → Installation & commissioning → Performance testing & training → Lifecycle service & spares.
Performance figures are indicative. Final design is confirmed by laboratory data, BPE/viscosity curves, corrosion/scaling assessment, and site utility conditions.
