Small Capacity Roots Type Compressor Sugar Evaporation System

Small capacity roots steam compressor used in sugar evaporation system

General Introduction

The compressor consists of a main and driven rotor group, a shell, a mechanical seal, a bearing, a synchronous gear and a coupling.



1. Driven rotor group

The compressor rotor group is composed of the main shaft and the fan blade assembly, the main shaft is made of high-strength alloy steel; the fan blades are two blades, using advanced arc-involute profiles, and have passed the rotor dynamics calculations, the optimal structure can be obtained by analyzing the strength and rigidity of the rotor. The fan blades are intergrally cast, and the material is different according to the composition of the materials processed by the process system. You can choose duplex stainless steel 2205, stainless steel 316L or ductile iron. After the fan blade is cast, it is processed by a machining center. The static and dynamic balance of the rotor group meets the design requirements, and the balance level is higher than G5.6



2. Shell

The compressor shell is composed of working cavity, front and rear cover, fuel tank and front cover, according to whether the sysytem is anti-corrosive, the material can be stainless steel or carbon steel, welded and formed, and processed by CNC boring and milling machine once after heat treatment, it is formed to ensure that the center distance between two rotors and concentricity of the front and rear bearing positions meet the design requirements; the working cavity is equipped with a spray device for gas cooling and rotor sealing; the gas inlet and outlet directions are generally upward and downward, and can also be arranged according to the system. The cloth needs to be made in the form of top in and side out.



3. Mechanical seal

The compressor rotor end face seal adopts high-quality brand mechanical seal or lip group seal. The mechanical seal cooling provides oil spray cooling for the external thin oil station; the lip group seal has no cooling device.



4. Bearing

The compressor bearing adopts rolling bearing. The fixed end adopts spherical roller bearings, and the free end adopts cylindrical roller bearings. The bearing brand adopts the international first-class brand, NSK, SKF, or FAG



5. Synchronous gear

The driven rotor of the compressor relies on the matched synchronous gear to operate synchronously with the active rotor group. The synchronous gear is made of high-strength alloy steel, and the gear accuracy is grade 5; the lubrication is based on the linear speed value of the gear using oil immersion lubrication or oil injection lubrication.



Table of parameters, temperature from 75 ℃~93℃~97℃



Model
Flow
(m3/h)
Max pressure
rise (Kpa)
Rotate speed
(rpm)
Power
(kw)
Evaporation capacity (t/h)
ZYLC18-75/93
18
40
960
18.5
0.25
ZYLC27-75/95
27
45
1450
30
0.4
ZYLC54-75/97
54
50
2900
75
0.8
ZYLC90-75/93
90
40
960
90
1.3
ZYLC135-75/97
135
50
1450
200
2
ZYLC210-75/93
210
40
960
250
3
ZYLC270-75/95
20
45
1450
315
4
ZYLC310-75/93
310
40
960
355
4.5
ZYLC360-75/93
360
40
960
400
5.2
ZYLC480-75/93
480
40
960
500
7
ZYLC600-75/93
600
40
960
630
8.5
ZYLC840-75/93
840
40
960
900
12
ZYLC960-75/93
960
40
960
1000
14
ZYLC1050-75/93
1050
40
960
1200
15



Application

This roots steam compressor is suitable for the purification of organic working fluids, seawater desalination, vapor compression transportation, concentration and crystallization in the chemical, pharmaceutical, metallurgical, food industries and the secondary vapor recompression process of the MVR system for industrial waste liquid treatment.

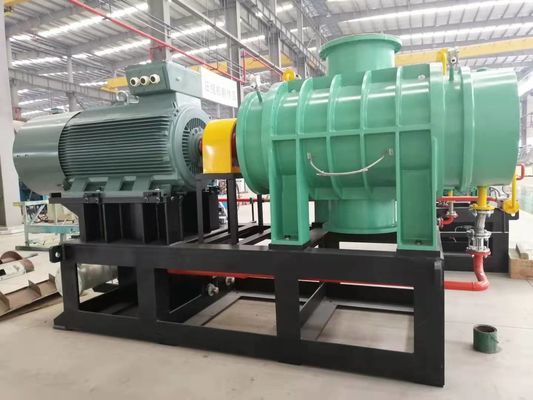

Site pictures
