5t/Hr Sodium Chloride Nacl Multi Effect Evaporation System

5t/Hr Sodium Chloride Nacl Multi Effect Evaporation System

  • High Light

    5t/hr multi effect evaporator

    ,

    sodium chloride multi effect evaporation system

    ,

    nacl multi effect evaporation system

  • Product
    Multi Effect Evaporation System
  • Application
    Sodium Chloride(NaCl)Evaporation
  • Evaporation Capacity
    5t/hr
  • Process
    Vacuum Salt Making Process
  • Core Components
    Bearing, Gearbox, Motor, Pressure Vessel, Gear
  • Power Source
    Steam
  • Place of Origin
    China
  • Brand Name
    Hanpu
  • Certification
    CE ISO
  • Model Number
    5t/hr evaporation capacity
  • Minimum Order Quantity
    1set
  • Price
    USD18,000-USD65,000
  • Packaging Details
    Pallet or Wooden case
  • Delivery Time
    75-90days after down payment
  • Supply Ability
    10 sets/month

5t/Hr Sodium Chloride Nacl Multi Effect Evaporation System

5T/HR sodium chloride(NaCl)Multi Effect Evaporation System

Equipment Structure
Double-effect forced circulation evaporator is composed of heater, separator, vapor-liquid separator, condenser, vacuum pump, forced circulation pump, discharging pump, condensate pump, electrical cabinet, operation platform and all the pipe fittings, valves, instruments and etc.
Heater: Two sets of vertical type tubular heater connect in series. The feed liquid is pumped into the first heater by forced circulation pump, then enters into the second heater. The heated liquid flow downwards in tubes, and flow into separator by tangential direction, better performance of vapor-liquid separation.


Separator: Vertical type, the secondary steam is discharged from the top, pass through a vapor-liquid separator before entering into condenser. The bottom of separator is connected with a forced circulation pump.


Vapor-liquid separator: Is used to prevent tiny liquid drops produced during evaporation from escaping with secondary steam, reducing loss of feed liquid and prevent pollution to pipeline and cooling water.


Condenser: Condensate the huge secondary steam produced during evaporation into liquid by cooling water, making concentration carrying on smoothly. Meanwhile, separate non-condensable vapor from secondary steam and cooling water, make it easily pumped out by vacuum pump to guarantee vacuum degree.



Technical Table

Product Name Multi Effect Evaporation System
Application sodium chloride(NaCl) Evaporation System
Evaporation Capacity 5T/Hr
Power Source Steam
Process Mechanical Vapor Recompression
Advantage Save energy

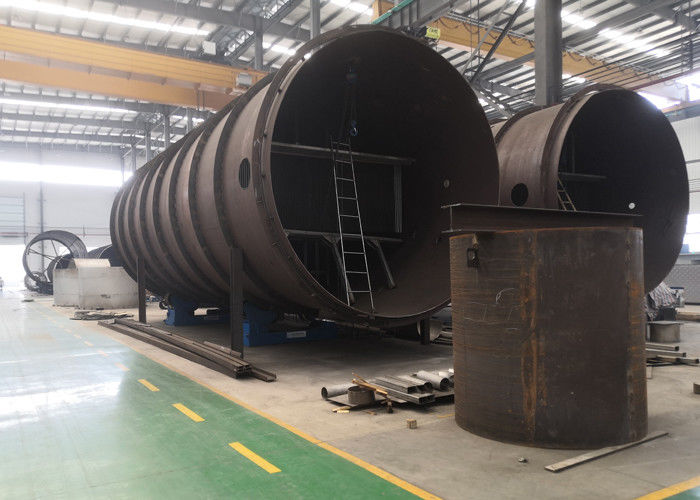

Client Site

5t/Hr Sodium Chloride Nacl Multi Effect Evaporation System 0

5t/Hr Sodium Chloride Nacl Multi Effect Evaporation System 1



Part of Reference List

 No. User Application Evaporation Capacity Qty
1 Xinhua PHARMACEUTICAL Shouguang Co., Ltd Ammouium Sulfate MVR Concentration 17t/hr 1
2 Jiangxi Tonghe Pharmaceutical Co., Ltd Sodium Chloride MVR Evaporation Crystallization 5t/hr 1
3 Jiangsu Changqing agrochemical Co., Ltd Sodium Chloride MVR Evaporation Crystallization 10t/hr 1
4 Shijiazhuang Haili Fine Chemical Co., Ltd Sodium Chloride MVR Evaporation Crystallization 2t/hr 1
5 Suzhou Keda environmental protection engineering Co., Ltd Sodium Chloride MVR Evaporation Crystallization 1t/hr 1
6 Shijiazhuang hejia health care products Co., Ltd Sodium Chloride MVR Evaporation Crystallization 10t/hr 1
7 Hubei taisheng chemical Co., Ltd Disodium hydrogen Phosphate MVR Evaporation Crystallization 7t/hr 1
8 He'nan Xintiandi Pharmaceutical Co., Ltd Ammonium chloride MVR Evaporation crystallization 5t/hr 1
9 Taixing Jinyun dyestuff Co., Ltd Dye MVR Concentration 3t/hr 1
10 Changhuasheng(Taixing)Lithium Battery Material Co., Ltd Sodium Chloride MVR Evaporation Crystallization 5t/hr 1
11 Jiujiang fuda industry Co., Ltd Ammonium Sulfate Evaporation Crystallization 28t/hr 1
12 Zhejiang Jinke Peroxide Co., Ltd Saline-alkali Evaporation crystallization 10t/hr 1
13 LLC TD HALMEK Lithium hydroxide single effect crystallization system 4t/hr 1
14 Zhejiang xinhecheng special material Co., Ltd Sodium chloride + sodium acetate evaporation crystallization 6t/hr 2
15 Jiangxi Brother Medicine Co., Ltd Nicotinic acid three-effect evaporation concentration 9t/hr 1
16 Zhejiang Gramineae Technology Co., Ltd Sodium chloride evaporation crystallization 3t/hr 1



About us

Our company's production base is located in the Huangqiao Industrial Zone of Taixing, covering an area of 300 acres. The companies
involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc. The website is https://www.hanputhermal.com



The company has various kinds of general (special) machinery devices including 480 sets and are the most developed working devices in the world such as: Toshiba CNC boring and milling machine imported from Japan, German Schiess CNC turning processing center, etc.
