150t/D Evaporation Station Seven Body Five Effect Plate Cane Syrup

1sets
MOQ
USD180,000-USD650,000
Price
150t/D Evaporation Station Seven Body Five Effect Plate Cane Syrup
Features Gallery Product Description Request A Quote
Features
Specifications
Project: Cane Syrup Evaporation
Capacity: 150T/D
Multi-effect: Five-Effect
Heat Exchange Area: 7691m2
Material: Stainless Steel
Warranty: 12 Months
High Light:

150t/d evaporation station

,

seven body evaporation station

,

five effect evaporation station

Basic Infomation
Place of Origin: China
Brand Name: Hanpu
Certification: CE ISO
Model Number: 150T/D
Payment & Shipping Terms
Packaging Details: Pallet or Wooden case
Delivery Time: 120days
Supply Ability: 10 sets/month
Product Description

150T/D Seven-body Five-effect Plate Cane Syrup Evaporation Station

Brief Introduction

Sugar production is done basically in several steps: juice extraction, juice clarification and evaporation, syrup treatment and sugar boiling, crystallization, centrifugation and drying. Much heat exchange equipment is used in this process.. An optimized design of the evaporation system with the correct distribution of the vapor bleed to attend other parts of the process may contribute to exhausted steam demand reduction.



Mulit- Effect Evaporator

A multi-effect evaporator , having an upstream and a downstream end, adapted for distillation of water. It comprises a plurality of effects connected in a series manner and arranged into groups. Each group has a common parallel water feed inlet adapted to supply all effects in the group with feed water. The evaporator further includes a main feed water line in fluid communication with the most upstream group. An array of heaters is disposed along the line, adapted for heating the feed water before its entry into the effects of the latter group. Each effect comprises means for forwarding the second outlet vapor into one of the heaters for heating the feed water. Each group comprises a pump adapted to extract the concentrate from the effects of the group and pump it into the common parallel water feed of an adjacent downstream group.



Performance Comparison for Different Evaporator

Item Single effect evaporator multi-effect evaporator TVR evaporator MVR evaporator
Energy consumption energy consumption is much higher than others, 1ton water will consume 1Ton steam in theory comparatively energy conservation Base on traditional multi-effect evaporator, one more effect added, but higher pressure steam driven needed The most energy saving technology for evaporator, but 10-40kwh power consumption
Floor space Small large large small
Energy sources steam & power, need steam pipe network and boiler steam & power, need steam pipe network and boiler steam & power, need steam pipe network and boiler, need high pressure steam. electricity, don't need pipe network, all the close-loop circulation system
Automaticity Semi automatic Full automatic operation, continuous evaporation Full automatic operation, continuous evaporation Full automatic operation, continuous evaporation

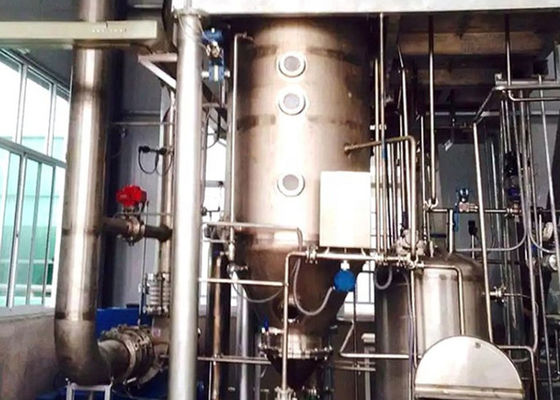

150t/D Evaporation Station Seven Body Five Effect Plate Cane Syrup 0150t/D Evaporation Station Seven Body Five Effect Plate Cane Syrup 1



Part of Reference List

No. User Application Evaporation Capacity Qty
1 Xinhua PHARMACEUTICAL Shouguang Co., Ltd Ammouium Sulfate MVR Concentration 17t/hr 1
2 Jiangxi Tonghe Pharmaceutical Co., Ltd Sodium Chloride MVR Evaporation Crystallization 5t/hr 1
3 Jiangsu Changqing agrochemical Co., Ltd Sodium Chloride MVR Evaporation Crystallization 10t/hr 1
4 Shijiazhuang Haili Fine Chemical Co., Ltd Sodium Chloride MVR Evaporation Crystallization 2t/hr 1
5 Suzhou Keda environmental protection engineering Co., Ltd Sodium Chloride MVR Evaporation Crystallization 1t/hr 1
6 Shijiazhuang hejia health care products Co., Ltd Sodium Chloride MVR Evaporation Crystallization 10t/hr 1
7 Hubei taisheng chemical Co., Ltd Disodium hydrogen Phosphate MVR Evaporation Crystallization 7t/hr 1
8 He'nan Xintiandi Pharmaceutical Co., Ltd Ammonium chloride MVR Evaporation crystallization 5t/hr 1
9 Taixing Jinyun dyestuff Co., Ltd Dye MVR Concentration 3t/hr 1
10 Changhuasheng(Taixing)Lithium Battery Material Co., Ltd Sodium Chloride MVR Evaporation Crystallization 5t/hr 1
11 Jiujiang fuda industry Co., Ltd Ammonium Sulfate Evaporation Crystallization 28t/hr 1
12 Zhejiang Jinke Peroxide Co., Ltd Saline-alkali Evaporation crystallization 10t/hr 1
13 LLC TD HALMEK Lithium hydroxide single effect crystallization system 4t/hr 1
14 Zhejiang xinhecheng special material Co., Ltd Sodium chloride + sodium acetate evaporation crystallization 6t/hr 2
15 Jiangxi Brother Medicine Co., Ltd Nicotinic acid three-effect evaporation concentration 9t/hr 1
16 Zhejiang Gramineae Technology Co., Ltd Sodium chloride evaporation crystallization 3t/hr 1






About us

Our company's production base is located in the Huangqiao Industrial Zone of Taixing, covering an area of 300 acres. The companies
involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc. The website is https://www.hanputhermal.com



The company has various kinds of general (special) machinery devices including 480 sets and are the most developed working devices in the world such as: Toshiba CNC boring and milling machine imported from Japan, German Schiess CNC turning processing center, etc.
