Pillow Plate Exchange Multi Effect Evaporation System For Sodium Chloride Concentration
What is the Multi Effect Evaporation System?
A multi-effect evaporator , having an upstream and a downstream end, adapted for distillation of water. It comprises a plurality of effects connected in a series manner and arranged into groups. Each group has a common parallel water feed inlet adapted to supply all effects in the group with feed water. The evaporator further includes a main feed water line in fluid communication with the most upstream group. An array of heaters is disposed along the line, adapted for heating the feed water before its entry into the effects of the latter group. Each effect comprises means for forwarding the second outlet vapor into one of the heaters for heating the feed water. Each group comprises a pump adapted to extract the concentrate from the effects of the group and pump it into the common parallel water feed of an adjacent downstream group.
What the system include?
What is the difference?
| Item | Single effect evaporator | multi-effect evaporator | TVR evaporator | MVR evaporator |
| Energy consumption | energy consumption is much higher than others, 1ton water will consume 1Ton steam in theory | comparatively energy conservation | Base on traditional multi-effect evaporator, one more effect added, but higher pressure steam driven needed | The most energy saving technology for evaporator, but 10-40kwh power consumption |
| Floor space | Small | large | large | small |
| Energy sources | steam & power, need steam pipe network and boiler | steam & power, need steam pipe network and boiler | steam & power, need steam pipe network and boiler, need high pressure steam. | electricity, don't need pipe network, all the close-loop circulation system |
| Automaticity | Semi automatic | Full automatic operation, continuous evaporation | Full automatic operation, continuous evaporation | Full automatic operation, continuous evaporation |

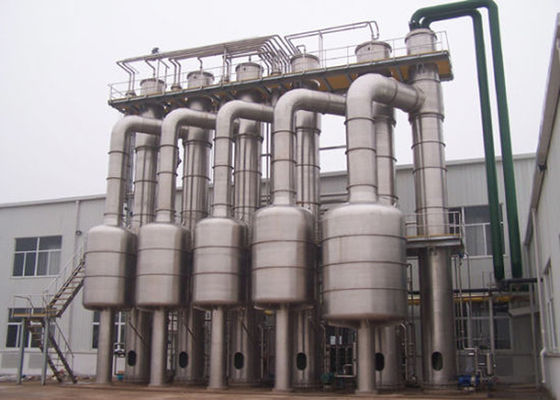

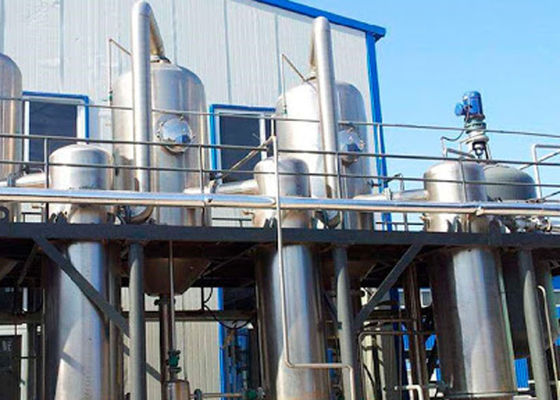

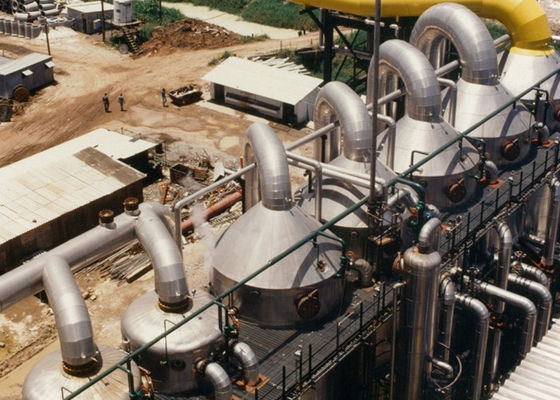

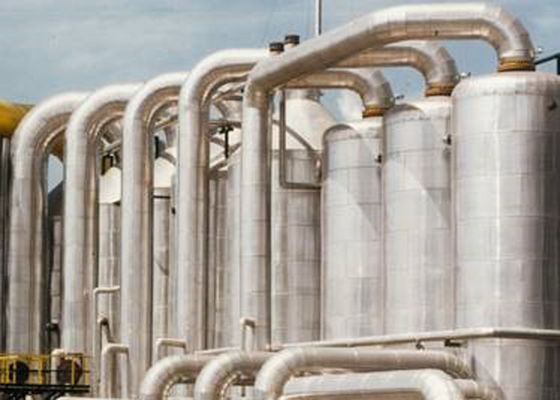

What is the picture?
What is the Reference list?
| No. | User | Application | Evaporation Capacity | Qty |
| 1 | Xinhua PHARMACEUTICAL Shouguang Co., Ltd | Ammouium Sulfate MVR Concentration | 17t/hr | 1 |
| 2 | Jiangxi Tonghe Pharmaceutical Co., Ltd | Sodium Chloride MVR Evaporation Crystallization | 5t/hr | 1 |
| 3 | Jiangsu Changqing agrochemical Co., Ltd | Sodium Chloride MVR Evaporation Crystallization | 10t/hr | 1 |
| 4 | Shijiazhuang Haili Fine Chemical Co., Ltd | Sodium Chloride MVR Evaporation Crystallization | 2t/hr | 1 |
| 5 | Suzhou Keda environmental protection engineering Co., Ltd | Sodium Chloride MVR Evaporation Crystallization | 1t/hr | 1 |
| 6 | Shijiazhuang hejia health care products Co., Ltd | Sodium Chloride MVR Evaporation Crystallization | 10t/hr | 1 |
| 7 | Hubei taisheng chemical Co., Ltd | Disodium hydrogen Phosphate MVR Evaporation Crystallization | 7t/hr | 1 |
| 8 | He'nan Xintiandi Pharmaceutical Co., Ltd | Ammonium chloride MVR Evaporation crystallization | 5t/hr | 1 |
| 9 | Taixing Jinyun dyestuff Co., Ltd | Dye MVR Concentration | 3t/hr | 1 |
| 10 | Changhuasheng(Taixing)Lithium Battery Material Co., Ltd | Sodium Chloride MVR Evaporation Crystallization | 5t/hr | 1 |
| 11 | Jiujiang fuda industry Co., Ltd | Ammonium Sulfate Evaporation Crystallization | 28t/hr | 1 |
| 12 | Zhejiang Jinke Peroxide Co., Ltd | Saline-alkali Evaporation crystallization | 10t/hr | 1 |
| 13 | LLC TD HALMEK | Lithium hydroxide single effect crystallization system | 4t/hr | 1 |
| 14 | Zhejiang xinhecheng special material Co., Ltd | Sodium chloride + sodium acetate evaporation crystallization | 6t/hr | 2 |
| 15 | Jiangxi Brother Medicine Co., Ltd | Nicotinic acid three-effect evaporation concentration | 9t/hr | 1 |
| 16 | Zhejiang Gramineae Technology Co., Ltd | Sodium chloride evaporation crystallization | 3t/hr | 1 |
Who we are?
Our company's production base is located in the Huangqiao Industrial Zone of Taixing, covering an area of 300 acres. The companies
involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc. The website is https://www.hanputhermal.com
The company has various kinds of general (special) machinery devices including 480 sets and are the most developed working devices in the world such as: Toshiba CNC boring and milling machine imported from Japan, German Schiess CNC turning processing center, etc.
We welcome to visit!!
How to contact?
Contact:Sophia
E-mail: sales09@hanputech.com
Whatsapp: +86 19951199981
Our products are sold all over the world, you can rest assured.
