Multiple Effect MVR Evaporator System For Waste Water Treatment

Multiple Effect MVR Evaporator System For Waste Water Treatment

  • High Light

    Multiple Effect MVR Evaporator

    ,

    low pressure steaming MVR Evaporator

    ,

    Waste Water Treatment MVR Evaporator

  • Name
    Multiple Effect MVR Evaporator
  • Process
    Thermal
  • Welding Technology
    Laser Welding
  • Power Source
    Steam
  • Condition
    New
  • Key Selling Point
    Energy Saving, Cost Competitive
  • Guaranteen
    12 Months
  • Place of Origin
    Jiangsu,China
  • Brand Name
    HANPU
  • Certification
    CE,ISO9001
  • Model Number
    HP-MVR
  • Minimum Order Quantity
    1 set
  • Price
    100,000USD~1,000,000USD/SET
  • Packaging Details
    Bulk with strap
  • Delivery Time
    90 days
  • Payment Terms
    T/T, L/C, D/A, D/P, Western Union
  • Supply Ability
    1 set/ 90days

Multiple Effect MVR Evaporator System For Waste Water Treatment

Multiple Effect Evaporation System Waste Water Treatment MVR Evaporator



MVR Description

The MVR evaporator is a new type of high-efficiency energy-saving evaporation equipment mainly used in the pharmaceutical industry. This equipment uses low-temperature and low-pressure steaming technology and clean energy to generate steam for energy. It separates the water in the medium and is an internationally advanced evaporation technology. It is an upgraded product that replaces the traditional evaporator.





Advantage:
■ low energy consumption per unit
■ due to the low temperature difference, the evaporation of the product is moderate
■ short product retention time due to common single effect
■ simple process and strong practicability
■ excellent part load operation characteristics
■ low operating cost




In summary the adventages of MVR system are as follow
1.Energy saving: high thermal efficiency, energy saving, lower power consumption,the energy consumption is about 1/6To 1/5 of traditional evaporator. significantly reduc the operation cost
2.Environmental protection
3.Low operating costs: only the traditional evaporators One-third to half
4.Evaporating temperature is low, difficult to corrosion stainless steel equipment, difficult to scale, very suitalbe for heat-sensitive material
5.Automatic: The entire system realized automatic control from the filling, preheating, evaporation, cleaning, maintenance and other steps of the. Avoid human error, reduce the labor costs, improved product quality
6.Small footprint
7.Avoiding the purchase of boilers, chimney construction investment and maintenance costs





Operation cost comparison

The operation of the two evaporation processes for the treatment is shown in the table.

Operation of two evaporation processes for treating paper waste water.



item 5 effect station combined evaporation process
MVR pre concentration 5-effect evaporation station
Evaporation water (t/h) 100 64.28 35.72
Incoming concentration(%) 10 10 20
Out concentration(%) 45 20 45
Evaporator area(㎡) 10000 8500 4000
Condenser area(㎡) 800 / 300
Consumption Steam (t/h) 25 / 9
Electricity(kWh/h) 500 1600 180
Water(t/h) 900 / 350
Running cost RMB/hour 4500 960 1633
RMB/T water evaporation capacity 45 25.93
RMBx10000/Day 10.8 6.2
RMBx10000/Year(340days) 3672 2115

Note:In operation cost estimation:steam 150rmb/t,electricity 0.6 rmb/kWh,water 0.5rmb/t.



The investment of combined evaporation process equipment increased: evaporator (2500 m2) 375x10000 RMB; MVR compressor 400x10000rmb, total 775x10000 RMB

Annual operating cost reduction of combined evaporation process: 3672-2115 = 1557 (10000RMB)

Investment increase payback period of combined evaporation process: 755 ÷ 1557=0.5year



It can be seen that taking the scale of 100t / h as an example, the combined evaporation process can recover the increased investment in half a year, and save 1557 (10000 RMB) every year in the future, with considerable economic benefits.

The handling capacity can be up to 100T/h, with advantages such as small floor space, compact structure, stable operation and so on.



Working principle drawing

Multiple Effect MVR Evaporator System For Waste Water Treatment 0



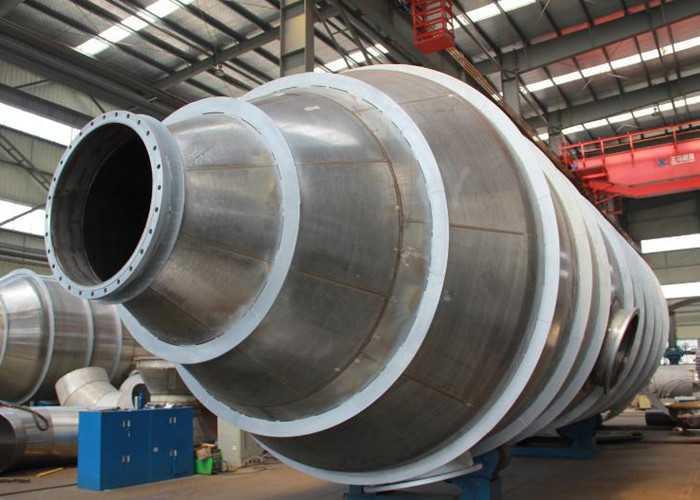

Our Production Capability

Multiple Effect MVR Evaporator System For Waste Water Treatment 1



Multiple Effect MVR Evaporator System For Waste Water Treatment 2

Multiple Effect MVR Evaporator System For Waste Water Treatment 3
