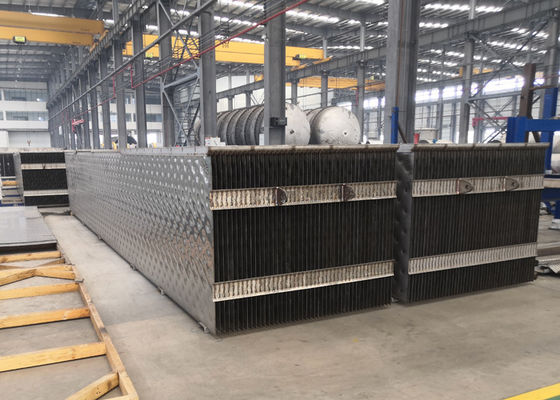

Evaporation and crystallization of unsaturated sodium chloride solution with rich experience
Mechanical vapor compression MVR or MVC (Mechanical Vapor Compression) evaporator, the principle is to use the secondary steam which is produced through compressing the steam by the steam compressor , secondary steam heat and temperature is increased by the compressor, steam compressed into the evaporator as the heat source, again makes the raw material liquid start evaporation, so there is no need to rely on external fresh steam, just need to rely on the evaporator system itself circulating to achieve the purpose of evaporation. Through the PLC control system, configuration software and engineering software to control the temperature, pressure, speed motor system, maintain stable, intelligent and efficient operation of the evaporator.
1. MVR energy-saving evaporator technology is currently the most advanced technology of the evaporator, only need a very small amount of steam (start-up small steam, in normal operation, almost no need for steam), greatly reduces the enterprise operation cost, reduce the pollution of the environment.
2.due to the use of the compressor to provide heat sources, compared with the traditional evaporator, the temperature difference is much smaller, can achieve moderate evaporation, greatly improve product quality and reduce fouling.
3. Without the condenser or only a small area of condenser, the structure and process are very simple, fully automatic operation, continuous operation, safe and reliable.
4. equipped with CIP cleaning pipeline, can be achieved on-site cleaning, the whole set of equipment is easy to operate, no dead angle.
5. the evaporator is the material at low temperature (evaporation temperature 35 degrees -100 degrees Celsius), and no foam in the state of evaporation, uniform liquid, no running material, not easy to coke, material heating denaturation minimum.
Mechanical Vapor Recompression MVR Evaporator consumption compared with traditional evaporation equipment calculated by evaporating 1T water
|Name||Steam||Electric Power||Total Cost (RMB)|
|Evaporation Capacity (kg/h)||Consumption (T)||Cost (RMB)||Consumption (kw)||Cost (RMB)|
|Single Effect Evaporator||1.1||220||3||2.1||222.1|
|Double Effect Evaporator||0.55||110||3||2.1||112.1|
|Three Effect Evaporator||0.4||88||3||2.1||90.1|
Working principle drawing
Part of Reference List
|1||Xinhua PHARMACEUTICAL Shouguang Co., Ltd||Ammouium Sulfate MVR Concentration||17t/hr||1|
|2||Jiangxi Tonghe Pharmaceutical Co., Ltd||Sodium Chloride MVR Evaporation Crystallization||5t/hr||1|
|3||Jiangsu Changqing agrochemical Co., Ltd||Sodium Chloride MVR Evaporation Crystallization||10t/hr||1|
|4||Shijiazhuang Haili Fine Chemical Co., Ltd||Sodium Chloride MVR Evaporation Crystallization||2t/hr||1|
|5||Suzhou Keda environmental protection engineering Co., Ltd||Sodium Chloride MVR Evaporation Crystallization||1t/hr||1|
|6||Shijiazhuang hejia health care products Co., Ltd||Sodium Chloride MVR Evaporation Crystallization||10t/hr||1|
|7||Hubei taisheng chemical Co., Ltd||Disodium hydrogen Phosphate MVR Evaporation Crystallization||7t/hr||1|
|8||He'nan Xintiandi Pharmaceutical Co., Ltd||Ammonium chloride MVR Evaporation crystallization||5t/hr||1|
|9||Taixing Jinyun dyestuff Co., Ltd||Dye MVR Concentration||3t/hr||1|
|10||Changhuasheng(Taixing)Lithium Battery Material Co., Ltd||Sodium Chloride MVR Evaporation Crystallization||5t/hr||1|
|11||Jiujiang fuda industry Co., Ltd||Ammonium Sulfate Evaporation Crystallization||28t/hr||1|
|12||Zhejiang Jinke Peroxide Co., Ltd||Saline-alkali Evaporation crystallization||10t/hr||1|
|13||LLC TD HALMEK||Lithium hydroxide single effect crystallization system||4t/hr||1|
|14||Zhejiang xinhecheng special material Co., Ltd||Sodium chloride + sodium acetate evaporation crystallization||6t/hr||2|
|15||Jiangxi Brother Medicine Co., Ltd||Nicotinic acid three-effect evaporation concentration||9t/hr||1|
|16||Zhejiang Gramineae Technology Co., Ltd||Sodium chloride evaporation crystallization||3t/hr||1
Our company's production base is located in the Huangqiao Industrial Zone of Taixing, covering an area of 300 acres. The companies
involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc. The website is https://www.hanputhermal.com
The company has various kinds of general (special) machinery devices including 480 sets and are the most developed working devices in the world such as: Toshiba CNC boring and milling machine imported from Japan, German Schiess CNC turning processing center, etc.
