SS304 Bundles Elements Pillow Plate Nickle White For Falling Film Evaporator

SS304 Bundles Elements Pillow Plate Nickle White For Falling Film Evaporator

  • High Light

    SS304 Bundles Elements Pillow Plate

    ,

    Pillow Plate For Falling Film Evaporator

    ,

    Nickle White Pillow Plate Stainless Steel

  • Name
    Stainless Steel Pillow Plate
  • Material
    SS304/316
  • Brand
    Hanpu
  • Welding Technology
    Laser Welding
  • Length
    Customized
  • Plate Material
    Stainless Steel Or Customized
  • Application
    Condensor/evaporator/heat Exchanger
  • Type
    Plate/Tube
  • Place of Origin
    China
  • Brand Name
    Hanpu
  • Certification
    ISO
  • Model Number
    Customized
  • Minimum Order Quantity
    100m2(except for the sample)
  • Price
    USD100/m2-USD300/m2
  • Packaging Details
    Standard export package, polywood, fumigated wood, filmed
  • Delivery Time
    30 days after down payment
  • Payment Terms
    TT,.LC, Western Union
  • Supply Ability
    30000m2 per month

SS304 Bundles Elements Pillow Plate Nickle White For Falling Film Evaporator

Manufacturer of high efficiency Stainless Steel Double Embossed Pillow Plate For Food Grade Cooling



Working principle

The plate heat exchangers are made of stainless steel and are ideal for the indirect heating and cooling of process liquids in plants or tanks. They are manufactured to the specific requirements of each customer. They transfer the thermal energy between the heat exchanger medium that flows through the heat exchanger and the process liquid.

The process liquid in the container circulates around the plate heat exchanger and is heated up to the desired working temperature and maintained. If heat is generated in a process (for example by a rectifier or an exothermic reaction), this can be cooled down by the heat exchangers. For heating applications hot water, steam, saturated steam and thermal oil can be used as a heat exchanger medium. Water, salt solutions and glycol are suitable for cooling.



Technical overview

Product Name Pillow plate
Material Stainless Steel
Color Nickle White
Standard DIN GB ISO JIS BA ANSI ASMI
Grade SUS201,SUS304,SUS316,TA2,Hastelloy
Brand Hanpu
Length Max.12000mm
Width Max.2000mm



Technology

The Pillow Plate are heat exchanger plates consisting of laser welded two stainless steel sheets. The external circuit of this device is welded in a complete laser way to create a pressure limit. The contour is welded on the edges of the Pillow Plate due to this process a tight part is created.

The “pillow” itself is pumped hydraulically, which guarantees the reliability and safety of the filling process. During inflation, a pressure is applied to the steel sheets, which allows for deformation of the material and the creation of a cavity for the use of a heat exchange medium. After this stage, the plates are formed into cylindrical elements and they are joined with each other, as well as welding of flanges and conical and pressed ends.



Application

1. Inter and After Coolers

2. Condensers

3. Evaporators

4. Heaters

5. Preheaters

6. Reboilers



Advantages
1. Pillow plate welding pattern ensures turbulent flow, creating a higher heat transfer coefficient and low deposition and fouling
2. Can withstand high pressures
3. Serviceable at cryogenic temperatures
4. Minimal pressure drop
5. Can easily withstand cyclic thermal loads
6. Completely laser welded
7. Cost effective

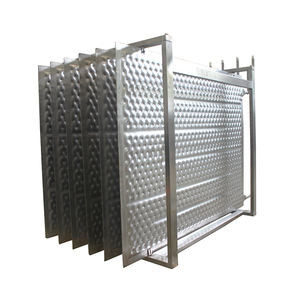

SS304 Bundles Elements Pillow Plate Nickle White For Falling Film Evaporator 0

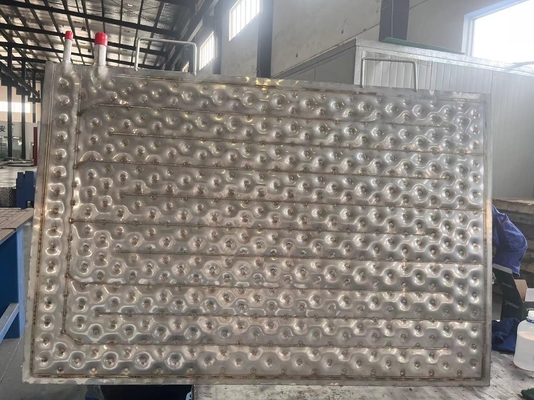

SS304 Bundles Elements Pillow Plate Nickle White For Falling Film Evaporator 1



Processing equipment

SS304 Bundles Elements Pillow Plate Nickle White For Falling Film Evaporator 2

Certification

SS304 Bundles Elements Pillow Plate Nickle White For Falling Film Evaporator 3



Competition

Quality and experience.We are top centrifuge supplier in China,our designs and structures are analogous to world leader brands. My price is not the lowest in China,but we promise,for the same quality and collocation,my price is the most favorable,for the same price,my quality is definitely superior to other brands.

Our services

1. 12 months guarantee period from machine arriving date.

2. Our technicians could be dispatched for overseas service.

3. 7*24 hours technical consultation.

4. Your workers could get trained both in our factory and yours.

5. Routine tracing till the machine work properly will be done timely.

6. Your suggestions or any comments & reflection would be treated in priority.

7. Marketing team will visit you during our visit in your country if you require
