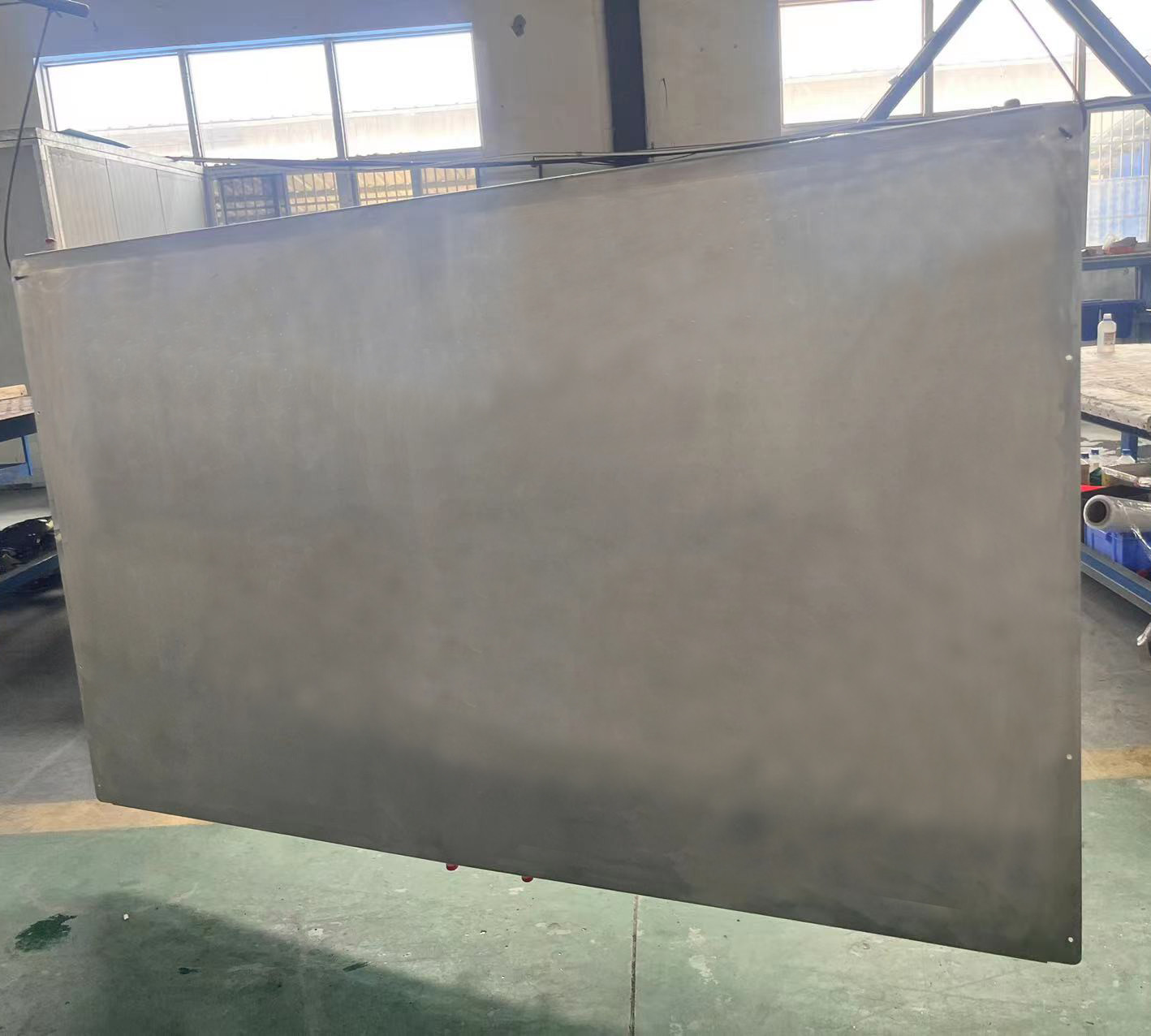

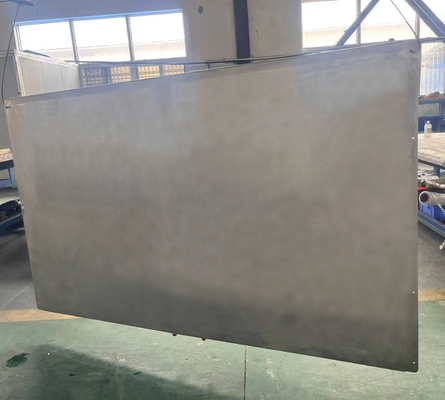

Stainless Steel Immersion Pillow Dimple Plate For Beverage Cooling 3mm

Stainless Steel Immersion Pillow Dimple Plate For Beverage Cooling 3mm

  • High Light

    Stainless Steel Immersion Pillow Plates

    ,

    Pillow Dimple Plate For Beverage Cooling

    ,

    Pillow Dimple Plate 3mm

  • Name
    Pillow Plate For Pillow Plate Heat Exchanger
  • Material
    SS304
  • Brand
    Hanpu
  • Welding Technology
    Laser Welded
  • Length
    1.5m
  • Thickness
    1-3mm
  • Application
    Condensor, Evaporator, Heat Exchanger
  • Type
    Pillow Plates
  • Place of Origin
    China
  • Brand Name
    Hanpu
  • Certification
    ISO
  • Model Number
    1*1.5m
  • Minimum Order Quantity
    100m2(except for the sample)
  • Price
    USD100/m2-USD300/m2
  • Packaging Details
    Standard export package, polywood, fumigated wood, filmed
  • Delivery Time
    30 days after down payment
  • Payment Terms
    TT,.LC, Western Union
  • Supply Ability
    30000m2 per month

Stainless Steel Immersion Pillow Dimple Plate For Beverage Cooling 3mm

1.2mm Thickness Double Embossed SS304 Pillow Plates For Pillow Plate Heat Exchanger

Introduction

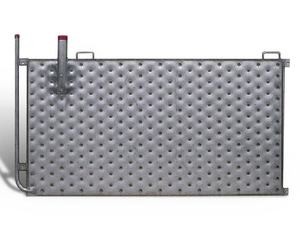

Pillow Plates, also called thermo plates, consists of two stainless steel sheets that are laser welded together by welding a custom circle weld pattern. Then the plate is inflated by using water pressure, which creates a specific single or double embossed profile – the pillow plate, through which the cooling or heating is conducted. The thickness and the spot pattern are determined by the pressure requirements.



It is widely used in heating/cooling/evaporation/condensation field which are necessary adapted in heat excahngers, tanks as milk, beer, wine storage, fermentation, falling film chillers, jacket vessels, evaporator plates, building roof, ice room etc.



Processing

Rolled Plate → Spread → Laser welding → Embossed → Finished



Technical overview

Product Name Pillow plate
Material Stainless Steel
Color Nickle White
Standard DIN GB ISO JIS BA ANSI ASMI
Grade SUS201,SUS304,SUS316,TA2,Hastelloy
Brand Hanpu
Length Max.12000mm
Width Max.2000mm
Thickness of two sheets
Double Embossed Pillow Plate Single Embossed Pillow Plate
Pillow Plate 1.0mm +1.0mm Pillow Plate 1.0mm+2.5mm
Pillow Plate 1.2mm+1.2mm Pillow Plate 1.2mm+4.0-10mm
Pillow Plate 1.5mm+1.5mm Pillow Plate 1.5mm+4.0-10mm



Product advantages

- Maintenance-free in dust loaded air
- No expensive interrupts as cleaning takes place during production

- Investment with short pay-back period

- Low maintenance cost

- Compact design and simple installation

- Good thermal operating efficiency due to high heat transfer coefficients

- Heat recovery with constant condensation



Features

1. Available in most materials, like stainless steel 304, 316L,2205 and titanium
2. High operating pressures
3. High operating temperatures

4. Thermally efficient types of heat transfer
5. Immersion heating and cooling.
6. Clamp-on heating, cooling, and temperature maintenance
7. Integral jacketing for heating and cooling
8. Custom heat exchanger design

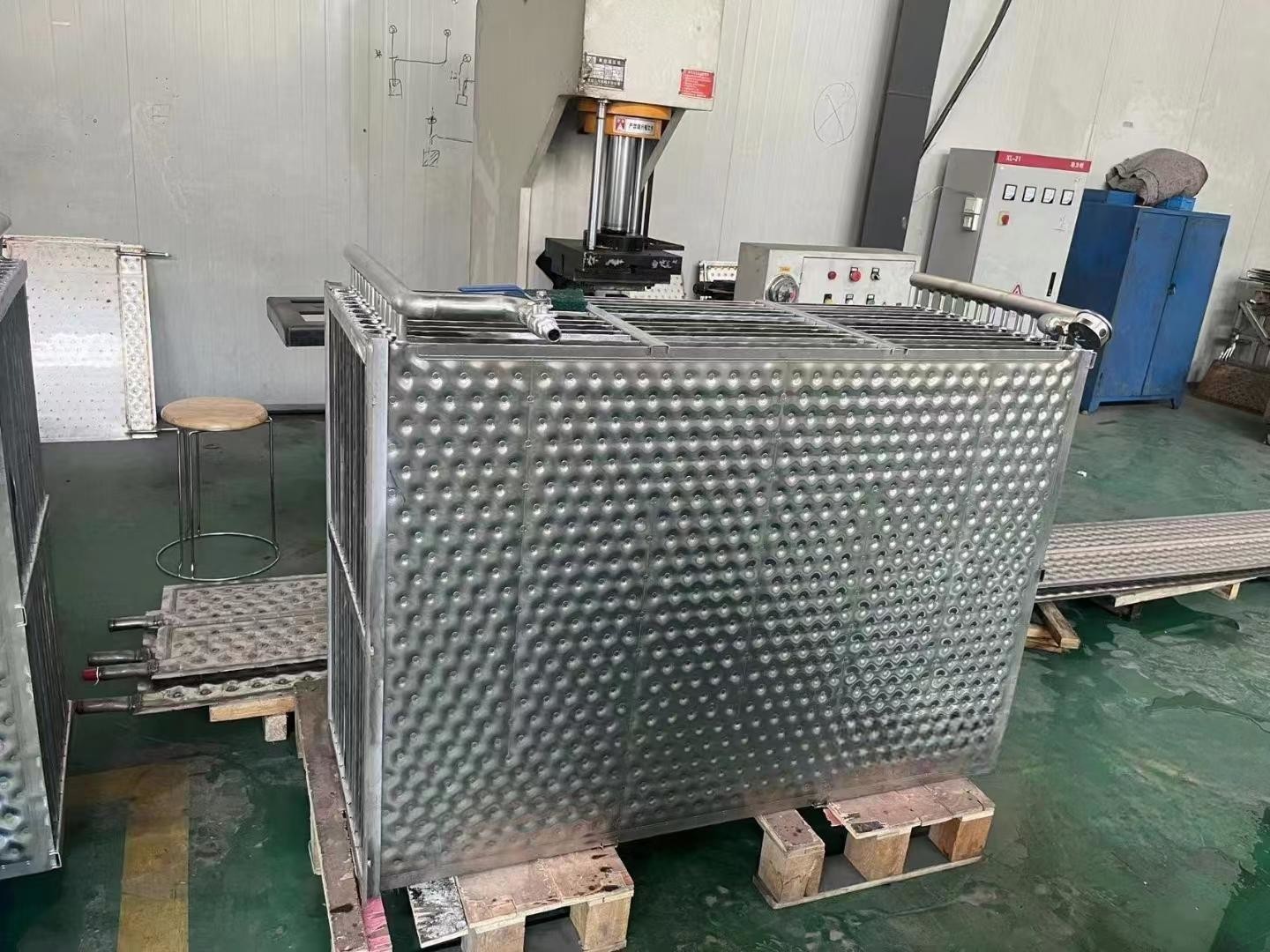

Stainless Steel Immersion Pillow Dimple Plate For Beverage Cooling 3mm 0

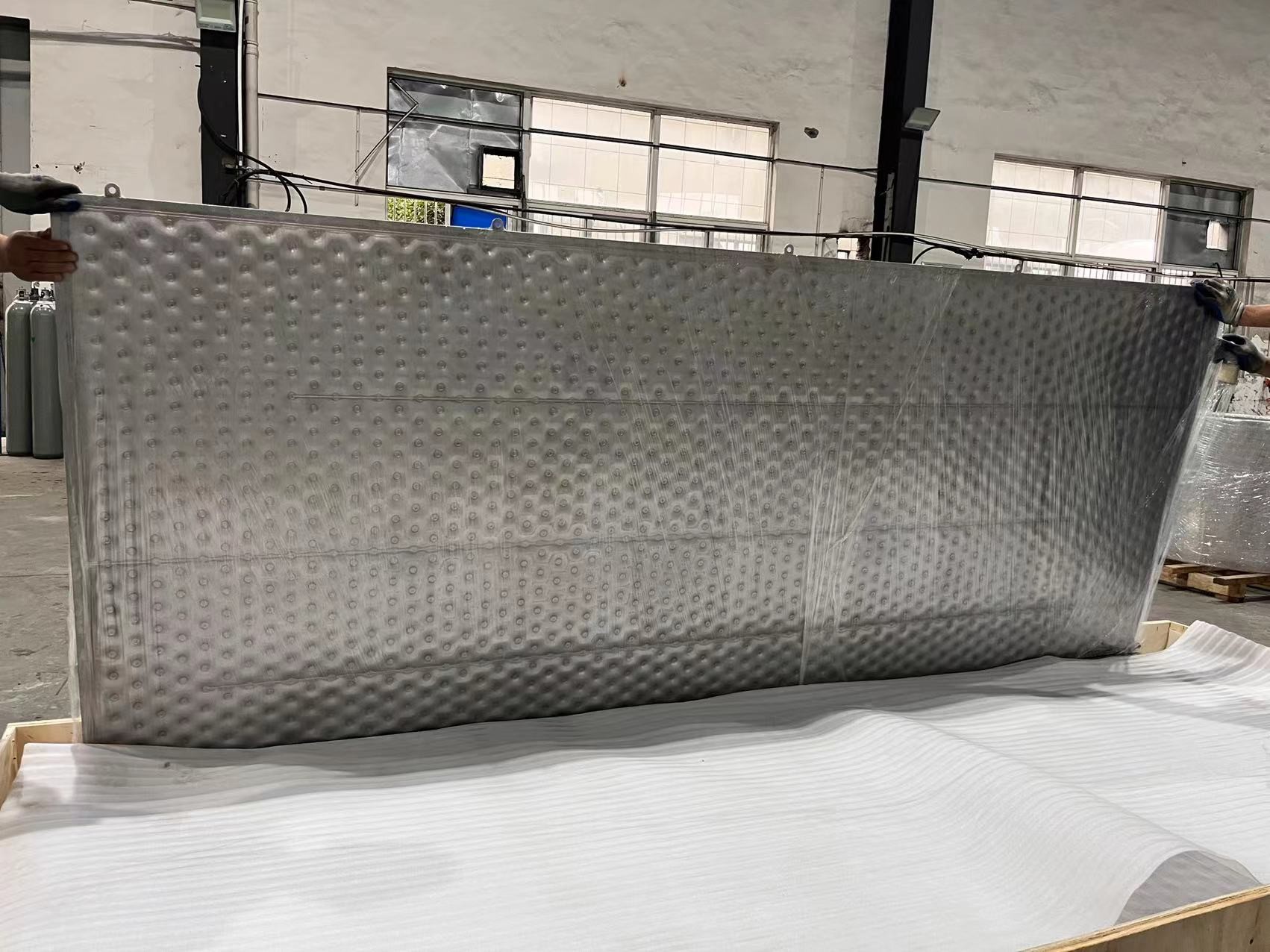

Stainless Steel Immersion Pillow Dimple Plate For Beverage Cooling 3mm 1

About us

Our company's production base is located in the Huangqiao Industrial Zone of Taixing, covering an area of 300 acres. The companies
involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc. The website is https://www.hanputhermal.com

Stainless Steel Immersion Pillow Dimple Plate For Beverage Cooling 3mm 2
The company's main projects include but are not limited to: MVR evaporation system, powder washing salt and vacuum salt production project, oil tank sludge cleaning project, landfill leachate treatment project, plant/animal oil processing production line, various wastewater treatment projects, and CBD oil extraction production line. Technical support and transfer of API product technology package. The main products are centrifuge series, multi-effect and MVR evaporation and crystallization equipment.



The company has various kinds of general (special) machinery devices including 480 sets and are the most developed working devices in the world such as: Toshiba CNC boring and milling machine imported from Japan, German Schiess CNC turning processing center, etc.



Contact:Sophia

E-mail: sales09@hanputech.com

Whatsapp: +86 19951199981



Tips:cooling Plates, air/liquid heat exchanger,thermo sheets
